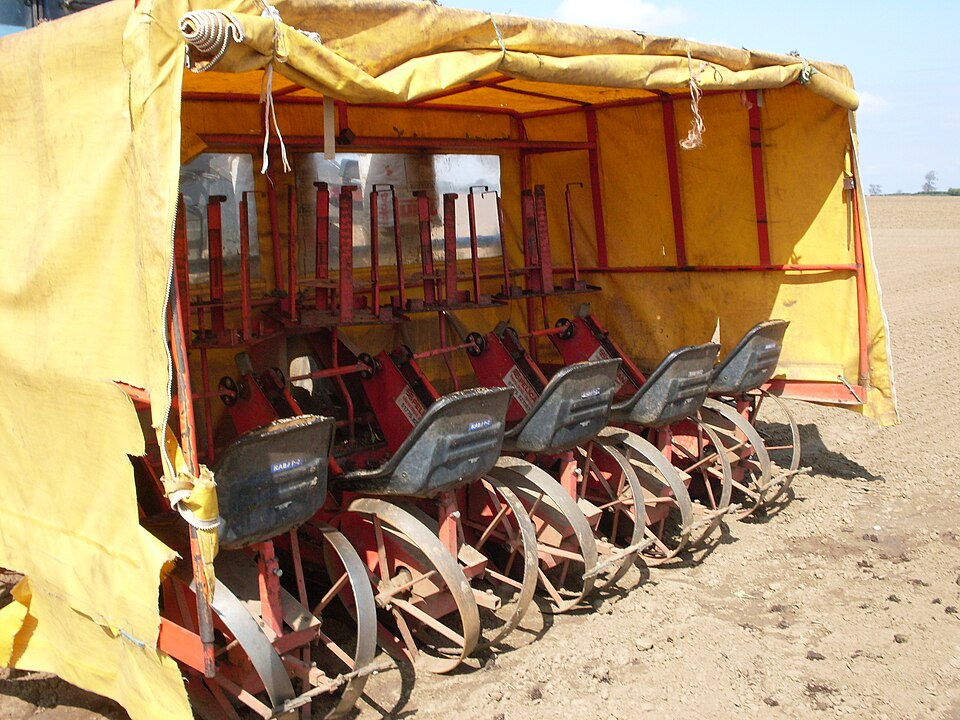

Vegetable Transplanter Product

Overview

A vegetable transplanter is a precision planting machine that automates the labor-intensive process of setting seedlings into prepared soil at controlled spacing and depth. Unlike bulk seed drills which plant raw seeds, transplanters work with pre-grown seedlings in trays or modules—typically 50-cell or 72-cell blocks. The machine extracts seedlings mechanically using vacuum or gripper fingers, transports them through a guideway, and deposits them into furrows at exact spacing (150–600 mm apart, field-adjustable).

Modern transplanters achieve planting rates of 4000–6000 plants per hour with >95% survival rates, compared to hand-planting (500–800 plants/hour) or bulk seeding (which requires thinning). This technology is standard in commercial vegetable production, particularly for transplant crops like cabbage, broccoli, peppers, eggplant, and tomatoes.

Most designs are tractor-mounted with dual picker heads (2-row planting) and synchronized carousel indexing that feeds new seedlings to the pickers as they cycle through planting motions. Hydraulic lift control, PLC-based timing, and ground-speed synchronization ensure repeatable, accurate placement even across variable terrain.

How it works

Tray Loading: The operator loads 6–12 seedling trays onto the rotating carousel positioned vertically at the back of the machine. Each tray holds 40–72 seedlings in a grid pattern.

Carousel Indexing: As the machine moves forward at 2–6 km/h, a stepper motor rotates the carousel one position after each planting cycle. The Speed Sensor on the drive wheel measures ground speed and sends pulses to the PLC, which commands the stepper to index when the correct distance (plant spacing, e.g., 300 mm) has been traveled. This ensures plants are spaced precisely regardless of ground speed variations.

Seedling Extraction: Twin picker heads (vacuum or mechanical gripper type) position themselves over the carousel-positioned tray. Vacuum pickers apply suction through a small diameter nozzle (8–10 mm) to the seedling's leaf surface, drawing it upward into the picker head. Mechanical grippers use rubber-coated fingers that close around the seedling stem or leaf, securing it for transport. Extraction force is typically 2–5 kN to avoid root damage.

Transport & Placement: The picker heads move horizontally from the tray toward the ground furrow, guided by vertical rails. A pneumatic arm-actuator cylinder pulls the picker head laterally from tray to soil. Depth control via mechanical stops or pressure sensors ensures the seedling is inserted into the furrow at the correct depth (typically 20–40 mm, with only 10–20 mm of seedling height below soil surface).

Root Zone Watering: As the seedling is being placed, a spray nozzle (0.5–1.0 LPM misting spray) applies 5–15 mL of water directly to the root zone. This accomplishes two goals: it provides immediate hydration to stressed transplant roots and settles loose soil particles around the root ball, improving root-to-soil contact.

Soil Firming: Twin packing wheels (150 mm diameter) follow 50–150 mm behind the planting head. These wheels apply 30–50 kN vertical load to compress soil around the seedling, ensuring intimate contact between soil and roots. Wheel pressure is maintained via pneumatic springs (5–8 bar) that absorb small ground irregularities.

Release & Cycle Repeat: A solenoid-operated valve releases vacuum or opens the mechanical gripper at the instant the packing wheels contact soil, allowing the empty picker head to retract upward. The carousel stepper motor waits for the next distance pulse from the speed sensor before indexing the carousel to position the next seedling row under the picker heads.

Operational Parameters

Plant Spacing: Set via PLC programming or hardware switches. Common spacing values range from 150 mm (close-packed cabbage) to 600 mm (large-fruited pepper). Changing spacing requires only a PLC parameter update; no mechanical adjustment needed.

Seedling Quality: Transplants should be 4–6 weeks old, with sturdy stems (4–6 mm diameter) and well-developed root systems (white roots visible at block edges). Leggy, weak, or over-rootbound seedlings cause picker jams or high failure rates.

Soil Moisture: Soil should be moist but not waterlogged. Dry soil resists furrow closure and increases seedling stress. Wet soil compacts and reduces oxygen availability to roots. Ideal soil moisture is 60–70% of field capacity.

Row Direction: Most designs plant in straight rows perpendicular to ground speed. GPS-guided tractors can provide automated steering, maintaining row precision to within 20–50 mm.

Tray Compatibility

Standard North American vegetable seedling trays are 50×30 cm with interchangeable cell sizes:

• 40-cell (8×5 grid): Large plants like cabbage, broccoli, cauliflower, peppers.
• 50-cell (10×5 grid): Medium plants like lettuce, chard, small tomatoes.
• 72-cell (12×6 grid): Small plants like onions, leeks, herbs.

Carousel tray grids are adjustable or modular, allowing field swapping between tray types within a day. Picker guides must be re-positioned to align with cell spacing when changing tray types.

Pneumatic vs. Vacuum Picker Heads

Vacuum Pickers: Simplest design, use venturi or small electric pump to create suction (0.3–0.5 bar below atmospheric). Advantage: minimal moving parts, reliable with healthy seedlings. Disadvantage: poor grip on weak or leggy seedlings; inconsistent performance in humid conditions where leaf surfaces are wet.

Mechanical Gripper Pickers: Pneumatic fingers close around seedling stem using solenoid-actuated cylinder. Advantage: firm, consistent grip regardless of leaf moisture; works with weaker seedlings. Disadvantage: slightly slower cycle time (0.5 sec longer); risk of stem crushing if pressure set too high.

Most modern transplanters offer both options as retrofit kits, allowing farmers to select based on seedling quality and crop type.

Water System Integration

Water delivery at planting is critical for transplant survival, especially in hot or windy conditions. System design must balance rapid water application (to reduce seedling stress) with excessive moisture (which creates flooding and re-planting). Typical parameters:

• Spray nozzle output: 0.5–1.0 LPM at 2–3 bar.
• Spray duration: 1–2 seconds (synchronized with picker head motion via solenoid timer).
• Total per-plant volume: 5–15 mL depending on soil type and climate.

Some transplanters integrate drip tape in the furrow, which is laid down by a preceding implement; the transplanter then plants into the drip line, avoiding surface water waste and pressure variations.

Synchronization with Ground Speed

The Flow Divider (gear-type hydraulic unit) mechanically couples the carousel stepper and picker motion timing to ground speed. As ground wheels turn, they drive a proportional flow valve that supplies oil to the carousel motor at a rate proportional to travel distance. This ensures:

• Faster tractor speed = faster carousel rotation = shorter picker cycle time.
• Slower tractor speed = slower carousel = longer time between indexing.

Manual adjustment of the divider ratio allows tuning of planting density (e.g., to achieve 300 mm spacing at a given tractor speed) without reprogramming.

Common Issues & Solutions

Seedling Picker Jams: Usually caused by oversized or misaligned seedlings. Verify tray cell alignment under picker heads; adjust tray grid fixtures. For picker damage, inspect and rotate tray to next usable row.

Uneven Planting Depth: Indicates gauge wheel pressure loss or soft soil compaction mid-row. Check pneumatic spring pressure (should be 5–8 bar). On soft soil, reduce tractor speed to allow packing wheels sufficient dwell time to firm soil.

Seedling Breakage: Vacuum picker issue—weak seedlings tear under suction. Switch to mechanical gripper picker or reduce suction pressure (if adjustable). For gripper pickers, reduce closing force by lowering pneumatic pressure 0.5 bar.

Inconsistent Water Application: Check spray nozzle for partial blockage (algae, sediment). Clean nozzles every 50 acres of planting. Verify water pump is delivering rated flow (measure discharge into bucket for 10 seconds). Adjust needle valve for appropriate volume per plant based on soil and climate conditions.

Carousel Skipping Positions: Speed sensor may be misaligned or dirty. Inspect encoder lens for mud accumulation. Clean lens and verify pulses reach PLC (test via digital meter on PLC input pin).

Crop-Specific Considerations

Brassicas (Cabbage, Broccoli, Cauliflower): Prefer 400–600 mm spacing in rows 600 mm apart. Plant slightly deeper (30–40 mm burial) to reduce lodging risk. Water requirements modest; 5–10 mL per plant sufficient.

Peppers & Eggplant: Require 300–400 mm spacing, rows 1 m apart. Prefer shallow burial (15–25 mm) and higher water volume (10–15 mL) due to sensitivity to transplant shock.

Tomatoes: Variable spacing (300–600 mm) depending on variety and training system. Determinates can be denser; indeterminates need more room. Moderate water requirements (8–12 mL).

Lettuce & Leafy Greens: Dense spacing (100–150 mm) for high-density baby leaf production; looser spacing (200–300 mm) for full-size heads. Shallow planting (10–15 mm) critical to prevent crown burial.

Maintenance & Consumables

Picker Fingers (Vacuum Cups or Grippers): Replace annually or after 1000+ acres of planting. Vacuum cups degrade with UV exposure; grippers develop cracks from repeated compression cycles.

Drive Belts & Chains: Carousel drive and picker arm cylinders experience seasonal wear. Belt tension adjustment every 200 acres; replacement every 1–2 seasons. Pneumatic cylinders require rod wipe maintenance (clean rod surface quarterly).

Wheels & Tires: Gauge wheels and packing wheels accumulate wear from soil abrasion. Tire replacement when tread depth <2 mm. Bearing inspection annually; replace if showing excessive play (>3 mm).

Water System Filtration: Spray nozzles clog easily. Use 100 µm suction filter on water tank; replace filter annually. Flush system with clean water at end of season.

PLC & Solenoid Drivers: Sealed IP67 enclosures prevent water ingress. Check connectors for corrosion; apply dielectric grease annually. Solenoid valves drift after 2–3 seasons; replacement extends reliability.

Integration with Farm Operations

Transplanters fit into a multi-implement workflow: bedformer prepares soil and establishes row marks; transplanter plants seedlings; drip irrigation or in-row sprinkler follows. Timing coordination is essential—soil must be firm enough to support transplanter wheels but moist enough for furrow closure.

On-farm nurseries allow farmers to produce seedlings in batches, reducing per-acre nursery cost and enabling flexible planting schedules independent of commercial greenhouse availability. Seedling trays can be stored for 2–4 weeks after germination, allowing staggered planting for succession crops (e.g., multiple lettuce plantings spaced 2–3 weeks apart).
