Vertical Farm Rack Product

Overview

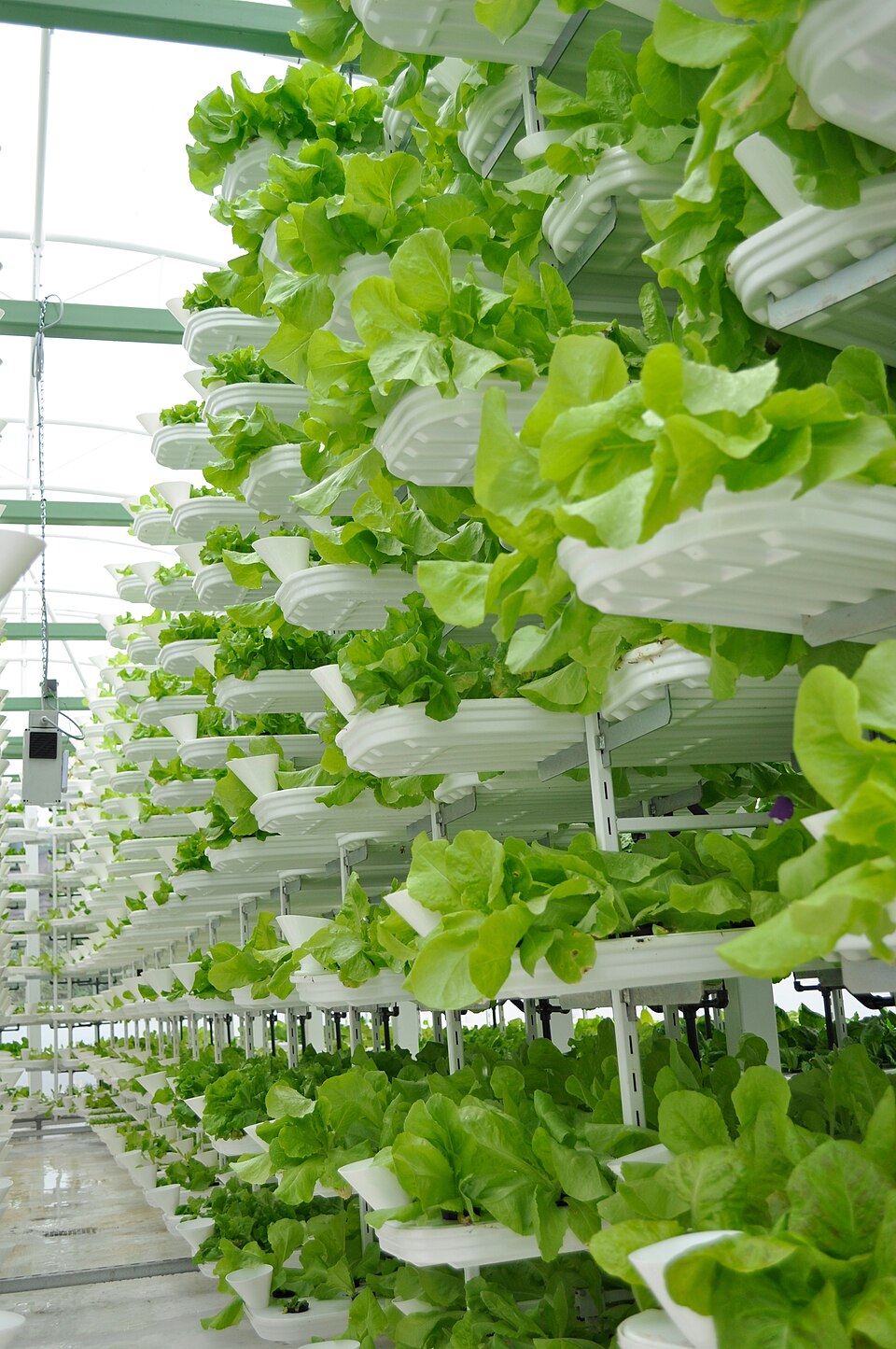

A vertical farm rack is a controlled-environment agriculture (CEA) system stacking multiple hydroponic growing tiers vertically to maximize space utilization in indoor facilities. Each tier is a shallow basin holding 10–15 liters of nutrient solution, fed by a shared circulation pump, and illuminated by spectrum-tuned LED bars. The entire structure is typically 2–2.5 meters tall, occupying only 1.5×1.5 m of floor space while delivering 4.3 m² of growing surface.

Vertical racks are engineered for high-density leafy green and herb production: lettuce (4–6 week cycles), basil, cilantro, microgreens, and edible flowers achieve 180–360 kg annual yield per rack in controlled indoor spaces. Because root zones receive bottom-up irrigation and top-down lighting simultaneously, photosynthesis efficiency per square meter rivals field crops while water use drops by 95%.

How It Works

Water circulation initiates at the Electrical Distribution panel, which energizes the pump feeding the Irrigation Network. Fresh nutrient solution from an external reservoir (not part of the rack itself) enters the Header Pipe at the top tier. Each Tier Splitter Tee directs flow to a Flow Valve, which balances the 10–15 L/min to each tier for even wetting.

Inside each Tier Basin, solution spreads via Drip Line emitters, saturating the Plant Support Tray (typically a 25–30 mm foam sheet with 36–48 pre-drilled plant sites). Each Plant Basket Clip holds a 50 mm net pot containing the growing medium (expanded clay, rockwool, or coco). Roots absorb water and nutrients during the 15–20 minute flood phase. Afterward, the Drain Assembly valve allows solution to drain back to the external sump or to cascade down to lower tiers in ebb-flow configurations.

Simultaneously, the LED Light System illuminates each tier. Six LED Light Bar arrays—typically mounting below the tier basins and pointing upward—emit 400–600 µmol/m²/s PPFD in a red-blue-white spectrum optimized for photosynthesis (maximum electron transport at 660 nm and 450 nm). The Heatsink Mount dissipates LED waste heat; the Reflector Panel bounces backscattered light back toward the canopy. A Lamp Timer controls photoperiod (typically 16 hours on, 8 off for vegetative growth).

Air circulation is maintained by the Airflow System. A Blower Motor intake fan draws fresh air through an Intake Filter, passing it through Flexible Ducting to the space above and around the rack. An opposing exhaust fan removes humid air. The Environmental Control Unit unit—fitted with Temperature-Humidity Sensor probes at top and bottom zones—maintains 18–26°C and 50–75% relative humidity by modulating intake/exhaust dampers and activating a heating element if needed.

Optional CO2 Sensor data feeds the control module, which can trigger proportional CO2 injection to boost photosynthesis during daylight hours (target 800–1200 ppm).

Structural and Thermal Design

The Frame Structure uses welded steel or aluminum. Four Vertical Post (40×40 mm tube) support twelve Horizontal Cross-Beam spaced at 300–400 mm vertically. Corner Gusset cross-brace each corner, preventing lateral sway under the dead load of six water-filled basins (≈60 kg each) plus LED clusters. Mounting tolerances are ±5 mm per tier to maintain light uniformity.

Crop Suitability and Cycle Times

Leafy greens (lettuce, spinach, kale) thrive in 4–6 week cycles with 16-hour photoperiods. Herbs (basil, cilantro, parsley, mint) excel at 6–8 weeks. Microgreens harvest in 10–14 days with minimal root depth. Fruiting plants (cherry tomatoes, peppers) require taller growing depth and longer cycles (12–16 weeks), limiting production to the lower tiers.

Maintenance Schedule

Daily: Check water level in external reservoir, inspect for algae or mold on foam trays.

Weekly: Calibrate dissolved oxygen sensor (if installed) and sample nutrient pH; adjust Flow Valve balance if growth appears uneven across tiers.

Monthly: Clean Intake Filter cartridge or replace if saturated; inspect Heatsink Mount for dust buildup and vacuum LED arrays.

Quarterly: Drain and sanitize all Tier Basin units with 200 ppm bleach solution, flushing Drip Line emitters to prevent calcium carbonate scaling.

Annually: Recalibrate Temperature-Humidity Sensor and CO2 Sensor; replace LED Light Bar arrays if luminous flux drops below 85% of rated (typically 2–3 year service life).

Energy Efficiency and Yield Optimization

LED bars consume 1.5–2 kW per tier at 600 µmol/m²/s PPFD; this dominates system power draw. Choosing high-efficacy LEDs (≥2.5 µmol/J) reduces electrical cost. Reflected light recovery via the Reflector Panel improves apparent efficacy by 15–20%.

Air circulation fans add 500–800 W; insulated Flexible Ducting reduces heating load. Systems in temperate zones (15–20°C ambient) rarely need dedicated heating; excess LED heat suffices.

Annual yield per rack: assuming 4–6 week lettuce cycles with 8 harvests/year × 6 tiers × 36 plants/tier × 150–200 g per head = 200–250 kg fresh product annually. Basil or microgreens can double this on a shorter cycle.
