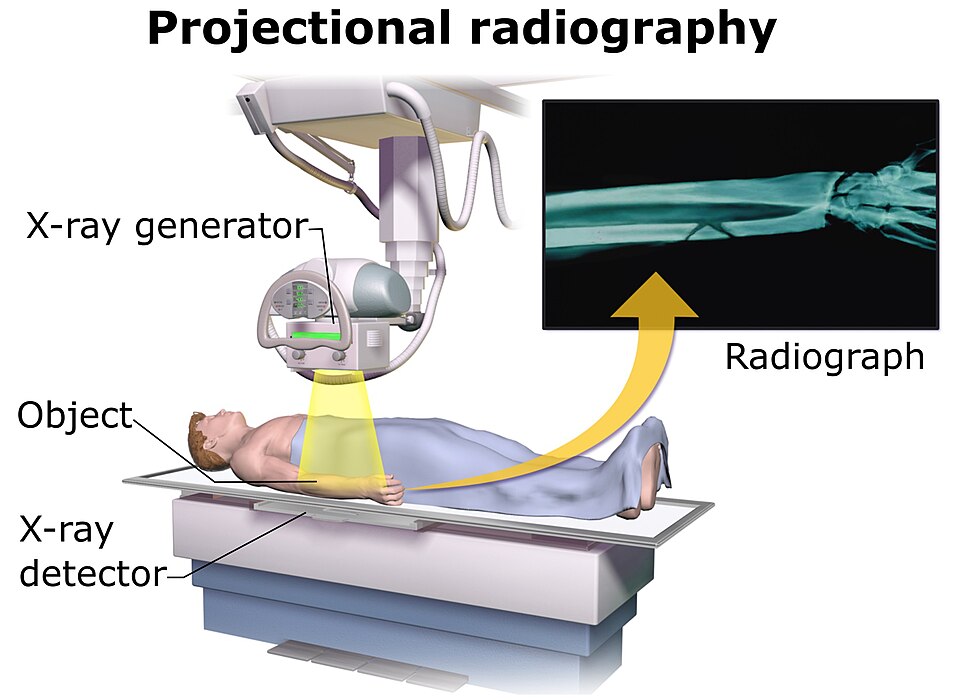

A veterinary X-ray system makes projection radiographs of animal patients — in companion-animal practice mostly thoracic, abdominal, orthopedic, and dental-skull studies of cats and dogs from 2 kg to over 80 kg. The physics is identical to human radiography and most components are shared with medical equipment, but the configuration differs: patients are anesthetized or restrained rather than cooperative, body thickness varies tenfold across one day's caseload, and a single fixed table with a column-mounted tube replaces the wall stands and tilting tables of a human department. The system divides into the High-Frequency Generator, the X-Ray Tube Head with its Collimator, the Radiographic Table and Tube Support Column, the Flat-Panel Digital Detector, and the Operator Console & Workstation.

Generating the beam

The High-Frequency Generator is a high-frequency inverter type. Rectified mains is chopped at about 40 kHz by the IGBT Inverter Bridge, an IGBT Power Module full bridge, stepped up by the oil-immersed High-Voltage Transformer, and rectified and doubled by the HV Rectifier-Multiplier to a tube potential between 40 and 125 kV. High-frequency conversion keeps voltage ripple under 4%, so nearly every photon is produced at the selected energy — shorter exposures and lower dose than older line-frequency generators for the same image. The kV Feedback Divider divider closes the regulation loop, and the Filament Current Supply sets tube current by filament temperature. Short exposures matter in veterinary work because patients are not asked to hold their breath; thoracic technique uses times of a few milliseconds to freeze respiratory motion.

In the X-Ray Tube Head, electrons from the dual-filament Dual-Filament Cathode accelerate across the evacuated Tube Insert and strike the Rotating Anode Disc, a tungsten-rhenium disc spun to 3,000 rpm by the Anode Stator Coil so the focal-spot heat spreads around a track — over 99% of the beam energy is heat. X-rays exit through the Tube Port Window, whose 2.5 mm aluminum equivalent filtration strips low-energy photons that would only add skin dose. The lead-lined, oil-filled Tube Housing Shell limits leakage to under 1 mGy/h at 1 m, with the Oil Expansion Bellows absorbing oil expansion and cutting exposures off if the housing overheats.

The Collimator bolts under the port: two crossed Lead Shutter Pairs define a rectangular field, and the Field Lamp, folded onto the beam axis by the Beam-Path Mirror, projects that field as visible light on the patient. Collimating to the anatomy is the main scatter-control and dose-control act available to the operator.

Table, grid, detector

The animal is positioned on the Carbon-Fiber Tabletop, a sealed carbon-fiber panel attenuating less than 0.8 mm Al equivalent, using sandbags, troughs, and ties anchored to the Restraint Cleat — radiation-protection codes strongly discourage manual restraint inside the beam. Beneath the top, the Anti-Scatter Grid (focused, 8:1, 103 lines/cm) absorbs scattered photons generated in thick abdomens that would otherwise fog the image; for cats and extremities under about 10 cm the detector is used gridless to save dose. The Detector Tray slides the panel under the anatomy without moving the patient.

The Flat-Panel Digital Detector replaced film and CR cassettes in most practices. Incoming photons convert to light in the needle-structured CsI:Tl Scintillator; the needles act as light guides, preserving resolution through the layer thickness. The light is integrated by the a-Si TFT Photodiode Array, an amorphous-silicon photodiode matrix of about seven million 140 µm pixels, scanned by the Readout Electronics Board into a 16-bit image that reaches the workstation in about three seconds. Instant review matters disproportionately in veterinary work, where a mispositioned, lightly sedated patient must be re-shot before it moves.

Operation

At the Console Control Panel the operator picks species, body part, and palpated thickness; anatomically programmed (APR) presets map these to kV and mAs. The Two-Stage Exposure Handswitch is two-stage: half-press spins the anode and preheats the filament, full press fires — with the Generator Control Board enforcing the interlock chain, including the door switch and Exposure Warning Light. The Acquisition Workstation applies processing tuned for veterinary anatomy and exports DICOM studies to the practice PACS or teleradiology service. The Tube Support Column holds the tube at the 100 cm source-to-image detent through its counterweighted Tube Carriage; horizontal-beam shots (standing thorax, fluid lines) are taken by rotating the head against a wall-mounted detector holder.
