Overview

A warping machine is the first step of weaving preparation. It takes yarn from many individual supply packages and rewinds it as a sheet of parallel ends, all the same length and at matched tension, onto a single warp beam. That beam then feeds a sizing machine or goes straight to the loom. The direct, or beam, warper shown here draws every end off the creel at once and winds the full set in one pass, which suits long production runs of a single yarn.

The whole machine exists to solve one problem: a loom needs hundreds of warp threads to behave identically. If one end is longer or slacker than its neighbours it will weave loose or snap, so the warper's job is uniformity. It controls tension at the creel, meters length precisely, spreads the ends to exact width, and packs them onto the beam at even density.

How it works

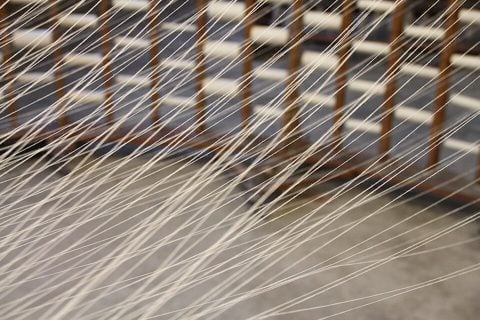

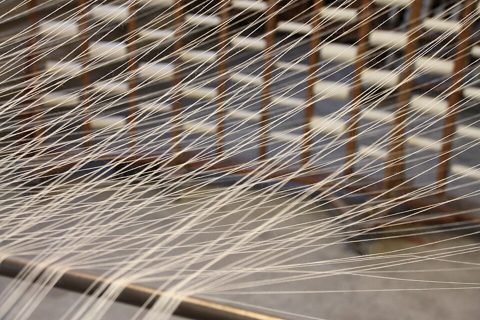

Yarn starts at the Yarn Creel, a tiered V-frame holding the supply packages. Each end pays off over the package nose, passes a Yarn Tensioner that adds matched drag, and runs through a ceramic guide. A drop-wire stop motion sits behind every end, so a single break trips the machine before the fault winds onto the beam.

The collected sheet passes over the Measuring & Traverse Rollers, a driven roller of known circumference carrying a Rotary Encoder. Counting its turns gives the wound length directly, which is how the machine stops exactly on the ordered metreage. From there the ends enter the Expanding Reed, a V-section expanding comb whose dents open or close to set the warp to the chosen width and keep the threads evenly separated.

Winding is done by the Warp Beam & Drive. A variable-speed motor turns the beam through a reduction gearbox, and a press roller rides on the growing roll to pack the yarn to constant density. As the beam diameter grows the drive lowers rotational speed to hold surface speed and tension steady. The Headstock Control console runs the show: an operator sets length and tension on the touchscreen, and the controller commands the beam drive while reading the encoder and stop motions. When an end breaks, the Braking System applies a disc brake on the beam and a band brake at the creel together, bringing the heavy assembly to a square stop in under three seconds so the broken end can be pieced up cleanly.
