Wheelchair Accessible Van Product

Overview

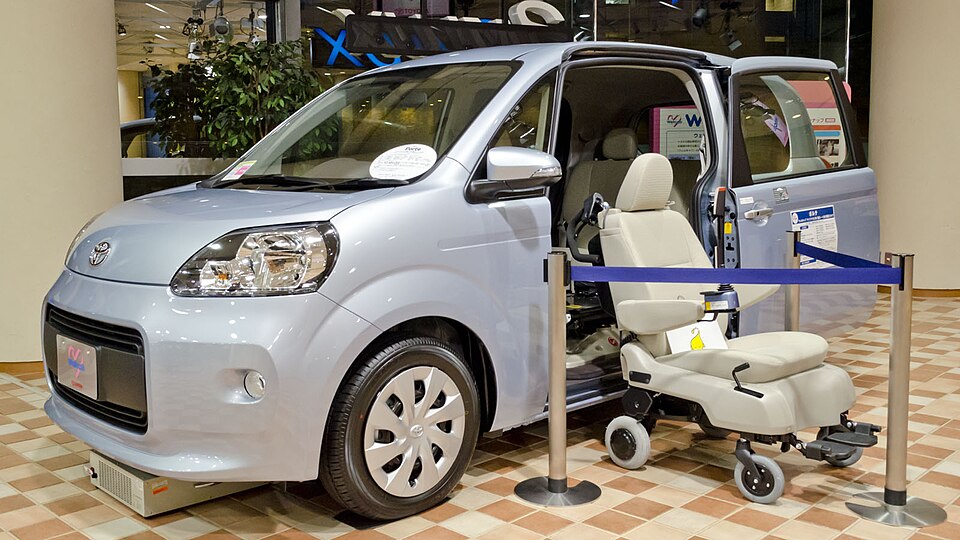

A wheelchair-accessible van (often called an ADA van or mobility van) is a commercial vehicle modified to safely transport passengers with mobility impairments. The van integrates a lowered floor cavity, hydraulic or electric ramp system, air suspension with kneeling function, wheelchair tie-down points, automatic doors, and grab bars throughout the interior. These vehicles are operated by medical transport companies, non-profit senior services, public transit agencies, and private mobility providers.

The market includes two segments: (1) small owner-operator services (1–2 vans, owner-managed), and (2) large fleet operators (50–200 vans, managed by transit agencies). Capital cost ranges from $50,000–80,000 per van (heavily modified) to $35,000–50,000 (light modifications), with ongoing operating costs of $0.35–0.50/mile.

Lowered Floor Cavity

The Lowered Floor Assembly is the signature modification enabling wheelchair access without excessive ramp angles. A standard full-size van floor sits 24–30 inches above ground; lowering it to 8–12 inches dramatically reduces the ramp angle required for safe wheelchair loading.

Engineering: The conversion involves:

1. Structural analysis of the original chassis floor and wheelbase.
2. Welding a cavity (6–8 inches deep) into the van floor, removing sections and reinforcing with cross-bracing.
3. Reinforcing the cutout with high-strength steel gussets and welds to prevent structural flex and stress cracking.
4. Installing a floor liner (rubber or vinyl) over the cavity for slip resistance.
5. Covering the wheel wells with plastic or aluminum shields.

Structural implications: Lowering the floor reduces ground clearance and lowers the vehicle's center of gravity (beneficial for stability), but increases the risk of high-centering on steep driveways or curbs. Operators must be trained to approach ramps and driveways at shallow angles.

Ramp System

The Ramp System is the primary loading mechanism. Most modern systems are hydraulic or electric motor-driven, rated for 800+ lbs static load and 600+ lbs dynamic load. The ramp unfolds from the van floor and extends to the ground, creating a loading path for wheelchairs.

Operational sequence:

1. Driver presses button or operates wireless remote.
2. Hydraulic pump activates, extending the ramp down and out.
3. Safety edge sensor detects obstacles and stops the ramp.
4. Gate (fold-down barrier) prevents wheelchair rollout.
5. Wheelchair user or attendant rolls chair up the ramp.
6. Return button retracts ramp, folding back into the van floor.

Angle compliance: ADA guidelines specify ramps steeper than 1:12 (8.3 degrees) require handrails; steeper than 1:8 (12 degrees) are prohibited. A van with lowered floor to 12 inches with a 36-inch ramp travel achieves ~18 inches total vertical rise, or 1:12 slope = compliant without handrails. Higher loading (16–20 inches) requires a longer ramp or handrails.

Common failures:

• Hydraulic leak: Seal wear or impact damage causes fluid loss. Symptom: ramp extends slowly or incompletely. Fix: rebuild or replace pump ($1,500–3,000).
• Motor stall: Obstacle or ice buildup prevents full extension. Symptom: ramp stops mid-cycle. Fix: manual override or mechanical rock-back.
• Safety edge failure: Pressure sensor deteriorates, allowing ramp to pinch. Critical safety failure; requires immediate replacement.
• Corrosion: Road salt (winter) corrodes aluminum ramp deck and hinges. Mitigation: annual wash-down and lubrication.

Air Suspension with Kneeling

The Air Suspension with Kneeling replaces the stock suspension with an air-spring system, allowing the vehicle to lower 3–4 inches at the rear axle, reducing floor height further for even easier wheelchair loading.

Kneeling process:

1. Driver engages "kneeling" mode (button or automatic with door open).
2. Solenoid valve exhausts air from rear air springs.
3. Vehicle's rear lowers by 3–4 inches over 3–5 seconds.
4. Once ramp is extended and locked, vehicle can remain in kneel position without damage.
5. After loading, driver closes door or presses "raise" button.
6. Compressor re-inflates air springs, raising vehicle to normal height (~1 second per inch).

Benefits: Kneeling reduces the final ramp angle further. With floor at 12 inches + kneeling 4 inches = 8-inch effective height, a 36-inch ramp achieves 1:4.5 slope (very shallow, easier for passengers with limited upper-body strength).

Components:

• Air springs: Pneumatic bags (one per wheel or per axle, typically 4 total) support the vehicle load. Pressure is typically 80–120 psi for medium-duty vans.
• Leveling valve: Automatically maintains suspension height as load (passengers, wheelchairs) changes. Manual override allows "kneeling" mode below normal operating height.
• Air compressor: 12 VDC pump (5 CFM) charges tanks and maintains system pressure. Runs intermittently to replenish losses from valve leaks.
• Air tank: 5–10 liter reservoir storing compressed air for quick kneel/raise cycles.
• Control module: Microprocessor managing leveling, kneeling, and raising functions. Includes height sensors (capacitive or pressure-based) to detect body position.

Maintenance: Air systems require annual inspection of seals, hoses, and fittings. Road salt and moisture corrode steel components; some operators coat components with anti-corrosion spray. Air leaks are common; a small leak (1–2% loss per day) is acceptable; larger leaks (compressor running continuously) indicate seal failure.

Wheelchair Securement

The Wheelchair Securement System system prevents wheelchair movement during braking, acceleration, and cornering. ADA regulations require a minimum of 4 tie-down points per wheelchair (front left, front right, rear left, rear right) rated for sudden deceleration loads up to 2 g (twice the vehicle's weight).

Tie-down mechanism:

• Floor receptacles: Steel or aluminum bolted anchors welded to the van floor at fixed positions.
• Webbing straps: Nylon or polyester straps (1.5–2 inch width, 10,000+ lbs tensile) routed from wheelchair frame to floor receptacles.
• Strap reels: Motorized or manual reels tension the straps to 200–300 lbs per point. Over-tensioning can damage wheelchair frames or injure passengers.
• Breakaway couplings: Quick-release connectors allowing rapid disengagement in emergencies (vehicle evacuation, manual evacuation).
• Padding: Foam pads protect wheelchair frame and prevent abrasion.

Operator training: Improper tie-down is a major safety issue. Attendants must:

1. Position wheelchair in marked space.
2. Secure all 4 points before vehicle motion.
3. Inspect straps for damage, twists, or tangles.
4. Tension evenly (avoid one strap tight, another loose, causing chair tilt).
5. Re-inspect tie-downs every 30 minutes on long trips.

Alternatives: Some modern systems use automated tie-down arms that rotate and lock the wheelchair frame without manual straps (faster, more consistent). These systems cost $3,000–5,000 additional but are used in high-volume services.

Accessible Entry System

The Entry and Door System centers on the automatic sliding door, which must open wide (32+ inches clear) and operate reliably with wheelchair users and attendants. ADA guidelines specify maximum operating time (open/close cycle) of 3–5 seconds; slower cycles reduce passenger flow.

Mechanisms:

• Door operator: Pneumatic (air-driven) or electric (24 VDC or 12 VDC motor) actuator opens/closes the sliding door. Pneumatic operators are simpler and more reliable in cold climates (no battery issues); electric operators are quieter and more efficient.
• Motion sensor: Infrared or pressure-mat sensor triggers door opening automatically when a passenger approaches or when inside the van. Prevents manual door operation during loading.
• Control buttons: Interior and exterior buttons (large, accessible reach height) allow manual override. Buttons should be large (1.5+ inch diameter) with tactile feedback for users with limited dexterity or vision.
• Safety pressure edge: Pressure sensor on the door edge stops and reverses the door if it encounters resistance (prevents pinching). Critical safety feature; failure can result in serious injury.
• Manual override handle: Mechanical lever outside the van allows emergency manual opening if power fails (vehicle evacuation requirement).

Operational challenges:

• Cold weather: Condensation and ice buildup jam doors. Mitigation: heated door guides, regular inspection.
• Pressure edge degradation: Repeated contact with passengers, bags, and wheelchairs causes sensor delamination. Replacement every 3–5 years typical.
• Battery drain: If the door operates frequently (high-traffic service), electrical draw can exceed charging capacity. Some fleets install auxiliary battery packs.

Interior Accessibility

The Interior Modifications and Trim ensure the entire cabin is accessible to passengers with mobility limitations:

• Aisle clearance: A 36+ inch minimum width aisle runs the length of the van, allowing wheelchairs to pass and navigate. This often requires removing or relocating OEM storage cabinets and seats.
• Grab bars: Stainless steel bars installed along the roof line and walls at 48–54 inch height (ADA standard reach). Bars must support 250+ lbs pulling force without deflection.
• Accessible seating: Fold-down seats for ambulatory passengers positioned adjacent to wheelchair spaces, with armrests at 24–26 inch height for easy transfer.
• Lighting: LED strips with accessible switches (mounted 48–54 inches high, large buttons for users with limited dexterity) provide even interior illumination and allow passengers to control brightness.
• Climate control: HVAC controls positioned at accessible heights; some vans offer personalized temperature zones for immunocompromised passengers sensitive to drafts.
• Accessible door controls: Windows, power doors, and emergency exits all operable from seated positions by wheelchair users.

Operational and Regulatory Considerations

ADA Compliance

In the United States, wheelchair-accessible vans used for public or private transportation must meet ADA Accessibility Guidelines (ADAAG) for transit vehicles. Key requirements:

• Minimum 2 wheelchair spaces per vehicle (4 preferred).
• Ramp angle < 1:12 (8.3 degrees) without handrails.
• 4-point tie-down per wheelchair, rated for 2 g deceleration.
• Automatic doors with pressure-edge safety.
• Grab bars, accessible controls, clear aisles.
• Audible and visual announcements of next stop (transit).
• Accessible restroom facilities (larger buses and coaches).

Non-compliance can result in fines ($1,000–10,000 per violation) and legal liability for injury claims.

Maintenance

Heavy use (50,000–100,000 miles annually for transit services) accelerates wear:

• Suspension: Air springs degrade every 50,000–80,000 miles (vs. 100,000+ for light duty). Annual inspection of seals and pressure.
• Ramp system: Hydraulic fluid change every 500 service hours, seal replacement every 80,000 miles.
• Door system: Safety edge replacement every 3–5 years, door operator overhaul every 80,000 miles.
• Brakes: Air-disc brakes require more frequent pad replacement (40,000–60,000 miles vs. 60,000–80,000 civilian) due to frequent stop-start operation.
• Tires: Load-rated commercial tires wear faster (20,000–30,000 miles vs. 40,000+ civilian).

Annual maintenance cost: $3,000–5,000 per vehicle (fuel, tires, routine service); major overhauls (ramp, suspension) every 80,000–100,000 miles cost $8,000–15,000.

Driver/Attendant Training

Operators require certification in:

• Safe wheelchair securing and positioning.
• Vehicle dynamics (high center of gravity, increased stopping distance when loaded).
• Emergency egress (manual override, evacuation procedures).
• Passenger assistance and communication (especially for non-verbal passengers).
• Infection control and cleanliness standards (medical transport).

Training typically takes 2–4 weeks and costs $500–1,500 per employee.

Cost of Ownership

Capital: $50,000–80,000 per vehicle (new, fully accessible conversion). Annual operating cost:

• Fuel: $3,000–4,000 (intensive use, 50,000 mi/year).
• Maintenance (oil, filters, tires, suspension): $3,000–4,000.
• Ramp and door service: $1,000–2,000.
• Insurance: $2,500–4,000 (higher for mobility service liability).
• Depreciation: $4,000–5,000 per year (12-year lifespan).
• Total: $13,500–19,000 per vehicle per year.

Revenue: Transit agencies recover costs through fares ($1.50–3.00 per passenger); private mobility services charge $20–40 per trip or $150–300/month for regular service. A single van performing 8–10 trips per day at $25–40 per trip generates $2,000–3,200/month ($24,000–38,000 annually), covering operating costs with modest surplus.
