Barrel Sauna Product

Overview

A barrel sauna is a hot-air bathing room built as a horizontal wooden cylinder. The form comes straight from cooperage: the Barrel Shell is assembled from around ninety tongue-and-groove Barrel Staves, each bevelled so the assembled ring closes into a circle, and the whole cylinder is compressed by four Steel Tension Bands tightened with Band Tensioner turnbuckles. No glue or internal frame is needed; hoop compression plus the tongue-and-groove joints make the shell self-supporting and self-sealing. The two circular end walls sit in End-Wall Groove dados cut across the staves, so the structure can be flat-packed and assembled on site in a day by two people.

The cylinder is not just styling. Compared with a rectangular cabin of equal floor area it encloses 20–30 % less air volume, which shortens heat-up time, and the curved ceiling returns rising hot air down the walls instead of trapping a stagnant hot layer under a flat roof. The penalty is reduced standing headroom away from the centreline and benches that must be scribed to the curve on Bench Support Frame frames.

Structure and timber

Staves are typically 42 mm thick kiln-dried softwood. Western red cedar is the premium choice for decay resistance and low thermal conductivity; thermally modified pine ("thermowood") achieves similar stability by baking the resin and hemicellulose out at about 210 °C. The wood itself is the only insulation — 42 mm of softwood gives roughly the same thermal resistance as 20 mm of mineral wool, adequate because a sauna is heated intermittently rather than held warm. Seasonal moisture cycling makes the barrel diameter breathe by several millimetres, which is why the tension bands carry adjusters and the assembly manual calls for retightening after the first weeks and each season. Outdoors, the crown of the barrel takes the weather, so the Roof Weather Kit adds a Roof Underlay membrane and bitumen Shingle Panel strips over the top third, with Drip Edge trims throwing runoff clear of the end walls. Two Support Cradle saddles keep the staves off ground moisture.

Heater and löyly

Heat comes from an electric stove of 4.5–9 kW sized at roughly 1 kW per cubic metre of room volume. Inside the Electric Sauna Heater, three tubular Heating Elements rated about 2–3 kW each sit under an open basket holding the Sauna Stone Set — 20–40 kg of olivine diabase chosen because it survives thousands of quench cycles without spalling and contains no sulphides to off-gas. The stones do two jobs: they store heat so the room temperature stays steady while the elements cycle, and they flash ladled water into steam, the löyly that spikes humidity and perceived temperature for a minute or two. Element contactor switching is handled by Relays; a manual-reset High-Limit Cutout cutout latches the stove off near 130 °C independently of the control thermostat, and the Heater Guard Rail rail enforces clearance between bathers and hot metal. IEC/EN 60335-2-53 governs clearances, the cutout, and the run Run Timer that prevents an unattended stove heating indefinitely.

Climate control and ventilation

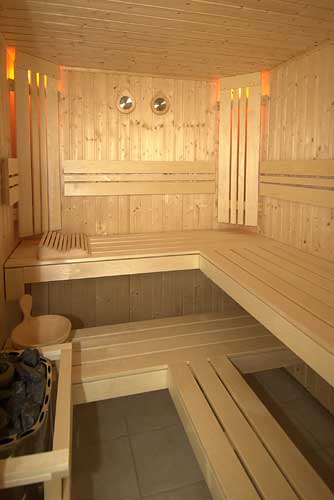

The Sauna Thermostat, sensing high on the wall above the stove, cycles the elements to hold a setpoint anywhere from 70 to 100 °C at the upper bench. Air in a sauna stratifies strongly — 30 °C or more between floor and ceiling — so bench height sets the bathing temperature: the Upper Bench at about a metre sits in the hot layer while the Lower Bench offers a cooler position and a step. Backrest slats keep skin off the hot staves and Floor Duckboard duckboards give a flat, drained standing surface over the curved invert.

Ventilation is passive and deliberate: the Intake Vent admits fresh air low near the stove where it is immediately heated, and the Exhaust Vent high on the far wall bleeds off stale, moist air, giving about six air changes per hour. Each opening carries a Vent Slider so bathers can trade freshness against heat retention.

Door and safety details

The Sauna Door follows rules common to all saunas: it opens outward, carries no lock, and its Door Catch is a roller or magnet that yields to a push, so an overheated bather can always get out. The leaf is usually a full pane of 8 mm tempered Door Glass in stainless clamp Door Hinges, with a wooden Door Handle inside and out because wood at 100 °C remains touchable while metal does not. A silicone Door Seal limits leakage past the frame. Electrical work is the one part owners cannot self-install in most jurisdictions: a 9 kW heater draws 13 A per phase on 400 V three-phase or up to 40 A single-phase, run in heat-rated cable to a dedicated breaker.
