Battery Swap Station Product

Overview

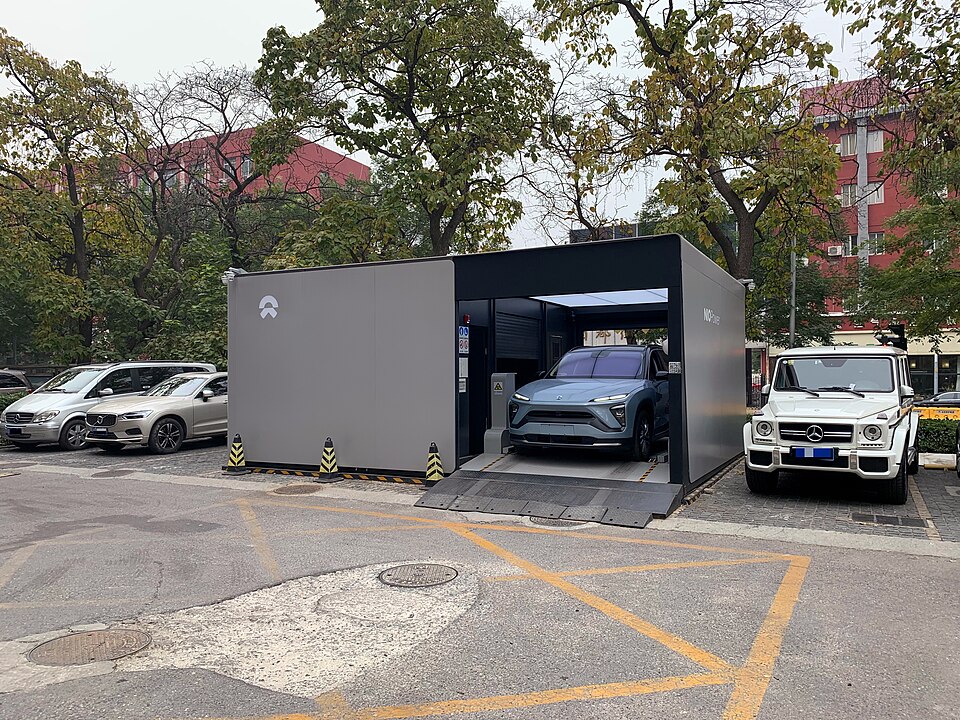

A battery swap station inverts the EV charging paradigm. Instead of waiting 20–40 minutes for a vehicle to recharge at a public DC fast charger, a driver pulls into a swap station, the facility robotically extracts their depleted battery pack, inserts a freshly charged unit, and the driver leaves within 5 minutes—faster than refueling a traditional car. The depleted pack is charged on-site and staged for the next customer, creating a closed loop.

This model is particularly valuable for commercial fleets (taxis, delivery vans, buses) with predictable depot return times and high utilization. The fleet pays a subscription fee per swap, the operator maintains a rotating pool of freshly charged batteries, and infrastructure capital costs are amortized across many daily swap cycles. The downside is operational complexity: the operator must manage battery health, track pack serial numbers, and ensure adequate inventory to handle peak demand.

Architecture

Vehicle Lift and Positioning

A driver pulls the vehicle over a [[battery-swap-station-vehicle-lift|four-post hydraulic lift]], which raises the vehicle to 1.5 m, exposing the battery pack location on the underbody. The lift is driven by a Variable Hydraulic Pump, a variable-displacement pump that proportionally responds to servo signals from the [[battery-swap-station-control-room|control PLC]]. The lift includes four [[battery-swap-station-lift-cylinder|hydraulic cylinders]] with integrated load cells that balance pressure equally across all corners, preventing vehicle tilt.

An Hydro-Pneumatic Accumulator stores energy during descent, reducing pump flow and improving efficiency. In a busy station performing 50–100 swaps/day, this energy recovery saves ~10% of hydraulic energy consumption.

Robotic Extraction and Insertion

A 6-axis [[battery-swap-station-robotic-arm|collaborative robot]] (cobot) with a 200 kg payload reaches into the vehicle's pack cavity and grasps the battery using a combined electrostatic and mechanical [[battery-swap-station-end-effector|gripper]]. The robot's force feedback sensor monitors extraction resistance, ensuring it doesn't damage pack connectors or adjacent components.

Once extracted, the robot carries the pack to the [[battery-swap-station-alignment-jigs|alignment jigs]], which use V-groove rails and low-friction rollers to guide the pack into a staging area. The jigs include [[battery-swap-station-alignment-post|keyed locators]] that ensure the pack is rotated to match the vehicle cavity orientation.

Storage and Charging Carousel

The [[battery-swap-station-storage-racks|rotating carousel]] is a 4-meter-diameter steel platform holding 8–12 battery packs in individual [[battery-swap-station-battery-cage|cages]]. Each cage includes:

• A spring-loaded V-block cradle securing the pack without over-compression
• A [[battery-swap-station-cage-charger|7 kW charger module]] delivering DC current directly to the pack's high-voltage connectors
• A [[battery-swap-station-thermal-interface|liquid cooling channel]] maintaining pack temperature between 25–35°C during charging

The carousel rotates (1 rpm) under control of a Carousel Drive Motor, a 15 kW AC motor with a 100:1 gear reducer. The control PLC commands the carousel to position a charged pack directly above the vehicle's pack bay, ready for the robot to insert it.

Intelligent Charging and Power Management

The [[battery-swap-station-charging-distribution|power management hub]] allocates the facility's utility power (typically 480 VAC, 300+ A service) across all active chargers. A central [[battery-swap-station-main-rectifier|500 kW rectifier]] outputs 700 VDC, which is distributed to individual cage chargers via [[battery-swap-station-distribution-contactor|contactors]].

A Power Management Microcontroller microcontroller monitors the state-of-charge (SOC) and battery temperature of each pack every 50 milliseconds. If one pack reaches 80% SOC, the load balancer reduces its charger current and redistributes that power to slower-charging packs, achieving uniform fill time and preventing thermal runaway in any single pack. This "load balancing" increases overall throughput by ~15% compared to independent chargers.

Battery Health Verification

Before a freshly charged pack is offered to a customer, the [[battery-swap-station-battery-testing|health monitoring system]] performs automated checks:

1. Isolation resistance: A [[battery-swap-station-insulation-tester|megohm-meter]] probe tests insulation resistance between the pack's high-voltage bus and ground. If <100 MΩ, the pack is flagged as defective (possible internal short or wet internals).
2. BMS health scan: The [[battery-swap-station-pack-scanner|CAN gateway]] reads the pack's onboard BMS and extracts state-of-health (SOH) metrics: individual cell voltages, temperature, cycle count, and capacity fade. Packs below 85% nominal capacity are retired to a second-life storage system.
3. Temperature check: Thermistors verify the pack cooled to <30°C during the preceding charge cycle, ensuring thermal stability.

If all checks pass, the pack is marked "ready for swap." If any check fails, the pack is moved to a repair queue or auction as used battery stock for stationary storage applications. Typical pack lifespan in a swap rotation is 500–800 cycles (5–8 years), after which it still retains 80%+ energy density and is valuable for grid storage.

Safety and Control Logic

The [[battery-swap-station-control-room|operator interface]] is a 22" touchscreen running a custom swap sequencing application. The [[battery-swap-station-plc|safety PLC]] is SIL 3 rated, with dual-channel monitoring of all critical functions:

• Lift position (upper, lower, or in-transit)
• Robot TCP (tool-center-point) position
• Carousel indexed position
• Electrical contactors status

If any sensor disagrees with expected state (e.g., left lift lower than right by >50 mm), the PLC immediately de-energizes all servos and raises an alarm. Guard rails and interlock gates prevent operator entry while the robot is moving.

An E-Stop Button button, visible from all approach angles, cuts power to the entire system on press, allowing human intervention in case of jamming or stuck packs.

Operations and Economics

A typical station operates as follows:

1. Vehicle arrives and parks over lift (driver positions via ground markings).
2. Driver scans a QR code or taps their ID card to initiate swap.
3. PLC raises lift (30 sec), robot extracts old pack (60 sec), carousel rotates to fresh pack (20 sec), robot inserts new pack (60 sec), lift lowers (30 sec), testing (30 sec). Total: 230 sec ≈ 4 minutes.
4. Driver receives billing receipt and departs.

The operator manages battery inventory: if 50% of packs are in rotation, 50% charging. Daily throughput is typically 40–80 swaps, generating $2,000–$4,000 revenue (assuming $40–$50 per swap). Operating costs are:

• Electricity: 84 kW facility, 4 hours/day charging + 2 hours/day robot duty = 360 kWh/day @ $0.10/kWh = $36/day = $13,000/year
• Maintenance: Hydraulic fluid, seal replacement, robot calibration = ~$5,000/year
• Labor: 1–2 technicians = $60,000/year
• Facility lease: $5,000/month = $60,000/year

Total annual operating cost: ~$138,000. With 40 swaps/day × 300 working days = 12,000 swaps/year × $45/swap average revenue = $540,000/year. Net margin: ~$402,000/year, giving 2–3 year payback on the $500,000–$800,000 capital investment.

Standards and Logistics

Battery swap stations must comply with:

• IEC 61936: High-voltage equipment safety.
• ISO 13849-1: Safety-related control systems.
• NFPA 1000: Hazardous materials (lithium battery) handling.

From a logistics standpoint, battery packs are tracked by a fleet management platform that monitors which pack went to which vehicle, enabling rapid diagnostics if a swapped pack fails to meet performance expectations.

Future Integration

Battery swap is increasingly seen as a complement to (not replacement for) fast charging. A vehicle equipped with a 50 kWh pack can swap at depots for 200+ kWh range, while also accepting 150 kW DC fast charging for longer interstate travel. This hybrid approach maximizes utilization and fleet flexibility.

Some operators are experimenting with "shared battery as a service," where customers don't own battery packs—they purchase energy and cycling time like a utility. This enables battery optimization: the operator can choose chemistry (LFP vs. NCA), size (30 kWh vs. 100 kWh), and age (new for daily-use packs, older for low-utilization vehicles) to maximize return on battery capital.
