Biofeedback System Product

Overview

Biofeedback systems provide real-time display of physiological signals that are normally unconscious (heart rate variability, muscle tension, skin conductance), enabling patients to develop voluntary control through operant conditioning. The Multi-Channel Sensor Module simultaneously measures multiple physiological parameters: surface EMG Electrode Pair electromyography (muscle tension), GSR Finger Sensor galvanic skin response (sympathetic arousal), Heart Rate / HRV Sensor heart rate variability (autonomic balance), and Respiration Effort Belt respiratory effort. The Biofeedback Software Suite displays these signals in real-time on screen (animated graphs, gauges, or game-based feedback); the patient adjusts breathing, muscular relaxation, or attention to alter displayed signals toward therapeutic targets. Psychologists and physiotherapists use biofeedback for stress disorders, chronic pain, hypertension, headache, and insomnia.

Electromyography (EMG) biofeedback

Surface EMG Electrode Pair electrodes over the trapezius, frontalis, or forearm flexors record motor unit action potentials during muscle contraction. The EMG Preamplifier amplifies these micro-voltages (10–100 µV typical during light contraction) to displayable levels; the amplitude is integrated (root-mean-square, or RMS) and displayed on screen as a bar gauge or audio tone (higher muscle activity = higher pitch). Patients learning to reduce muscle tension (progressive muscle relaxation or PMR) watch the EMG bar decrease as they consciously relax; over repeated sessions, voluntary control improves. EMG biofeedback is most effective for tension headache (frontalis muscle relaxation) and neck pain (trapezius tension reduction); randomized trials show 40–60% headache frequency reduction comparable to prophylactic medication.

Galvanic skin response (GSR) biofeedback

The GSR Finger Sensor finger-worn electrodes measure skin conductance (the reciprocal of skin resistance), which increases during sympathetic nervous system arousal (stress, anxiety). The GSR Bridge Circuit AC bridge outputs a signal proportional to sweat-gland activity; GSR correlates with attention, emotional state, and arousal level. During stress-management biofeedback, the patient watches a real-time GSR trace or bar; instructions to slow breathing, imagine peaceful scenes, or perform autogenic phrases (e.g., "my arms are warm and heavy") elicit parasympathetic activation and GSR decrease. Feedback is typically inverted (lower GSR = reward, higher position on screen) to reinforce relaxation. GSR biofeedback shows efficacy for generalized anxiety disorder and social anxiety.

Heart rate variability (HRV) biofeedback

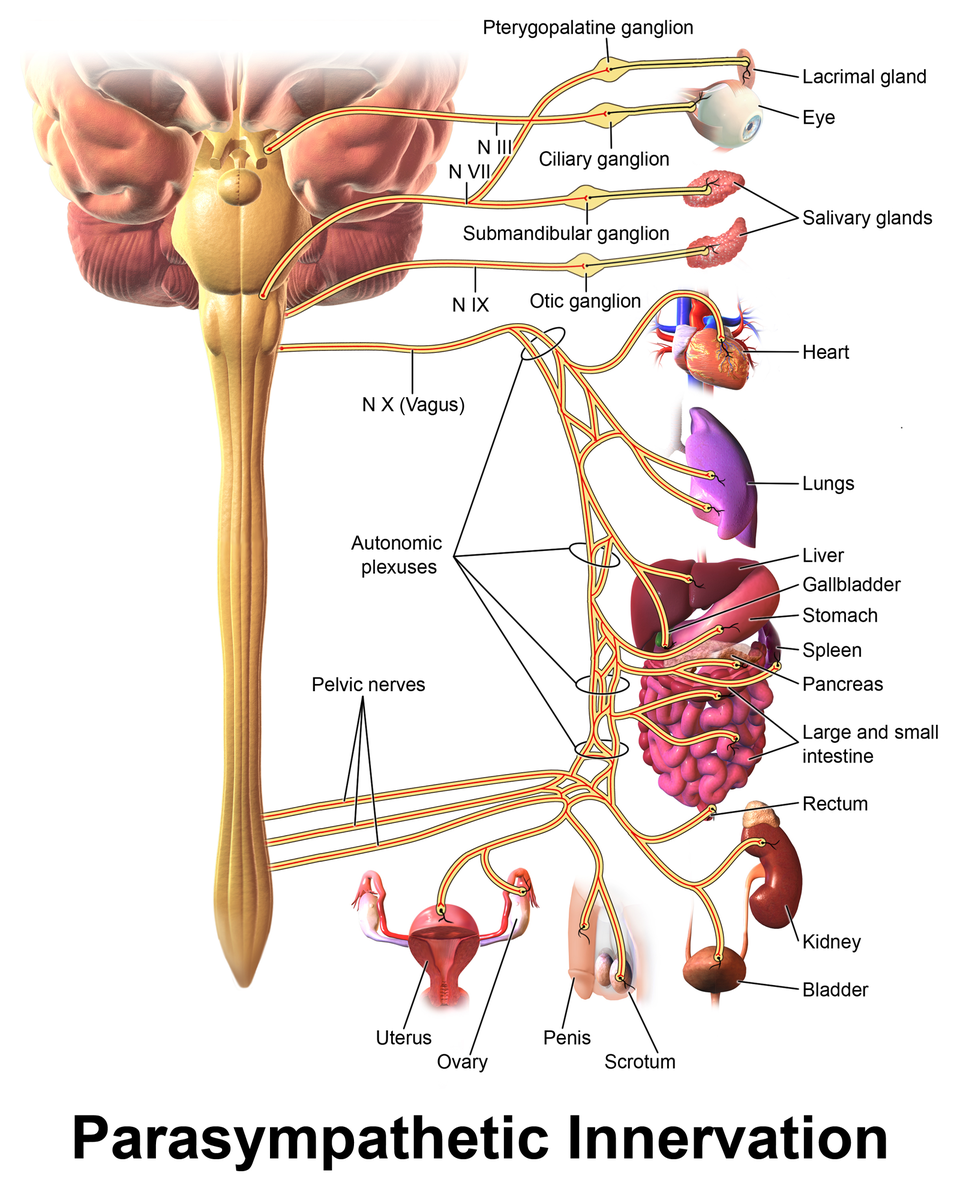

The Heart Rate / HRV Sensor chest-worn ECG electrodes detect R-wave peaks; the HRV Detector Module calculates inter-beat intervals (RR intervals) and derives HRV metrics: SDNN (standard deviation of NN intervals, total variability), RMSSD (root-mean-square of successive differences, parasympathetic indicator), LF/HF ratio (low-frequency to high-frequency power, sympathetic-parasympathetic balance). During HRV biofeedback training, the patient sees real-time heart rate trace and receives instructions to slow breathing to ~6 breaths per minute (10 sec inspiration, 10 sec expiration), which resonates with cardiovascular baroreflex frequency and maximizes HRV. Over 8–10 sessions, patients develop improved parasympathetic tone and reduced baseline stress level. HRV biofeedback shows efficacy for anxiety, depression, and blood-pressure reduction, particularly when heart rate is naturally low (parasympathetic-dominant baseline).

Respiration rate and depth feedback

The Respiration Effort Belt elastic belt-worn strain-gauge transducer measures chest circumference expansion during breathing; the Respiration Amplifier amplifies this signal into a respiration waveform displayed on screen. Patients learn to: (1) slow breathing rate to 6 bpm, (2) increase breathing depth (amplitude) for fuller lung ventilation, and (3) synchronize breathing with heart rate (heart rate increase on inspiration, decrease on expiration—natural respiratory sinus arrhythmia). Slow, deep breathing activates the parasympathetic nervous system, reducing cortisol and promoting calm. Respiration biofeedback combined with HRV training is particularly effective for panic disorder (where hyperventilation exacerbates symptoms) and anxiety.

Stress-management training protocol

A patient with generalized anxiety disorder (GAD) attends a biofeedback clinic. The therapist attaches EMG Electrode Pair frontalis EMG electrodes, GSR Finger Sensor finger GSR sensor, and Heart Rate / HRV Sensor chest ECG electrodes. The Biofeedback Software Suite displays three real-time traces: muscle tension (frontalis EMG), arousal (GSR bar), and heart rate. Baseline measurements show elevated EMG (15 µV RMS, normal <5 µV), elevated GSR (8 µS, normal 2–5 µS), and elevated heart rate (85 bpm at rest, normal 60–70 bpm). The therapist instructs: "Watch the screens; use slow, deep breathing (6 breaths per minute) to relax your body." Over 20 minutes, the patient practices diaphragmatic breathing while observing EMG decrease to 4 µV, GSR drop to 3 µS, and heart rate lower to 68 bpm. The therapist provides real-time encouragement when signals move toward targets and redirects if signals increase. After the session, the patient receives a printed summary (CSV export showing average EMG, GSR, HR; baseline vs. end-of-session comparison). Over 8–10 sessions (weekly), the patient develops autonomic control and reduced baseline anxiety.

Pain-coping biofeedback

Chronic pain patients often catastrophize (amplify pain perception through negative thinking); biofeedback redirects attention to modifiable physiological targets. A patient with fibromyalgia pain attends biofeedback training. During the session, baseline pain is 6/10; EMG and GSR are elevated. The therapist guides: "As you relax your muscles and slow your breathing, pain typically decreases—watch your EMG and heart rate respond." The patient performs progressive muscle relaxation (tense and release each muscle group while watching EMG feedback), achieves EMG reduction to 30% baseline, and reports pain decrease to 3/10 by session end. Over 6–8 sessions, the patient's ability to self-regulate improves, and both baseline and procedurally-triggered pain decrease 30–50%. The mechanism involves both direct physiological effect (relaxation reduces muscle tension contributing to pain) and cognitive effect (self-efficacy from control).

Sleep improvement biofeedback

Insomnia patients with high nighttime arousal (elevated muscle tension, elevated heart rate) benefit from biofeedback training focused on relaxation before bed. Sessions involve EMG Electrode Pair frontalis or forearm EMG, GSR Finger Sensor GSR, and Heart Rate / HRV Sensor HRV; the patient practices progressive muscle relaxation or guided imagery while watching signals decrease toward sleep-conducive levels (low EMG <5 µV, low GSR <2 µS, low heart rate <60 bpm). The therapist teaches the patient to recognize the physiological state associated with relaxation. Over time, the patient develops conditioned relaxation—eventually, the biofeedback session itself becomes associated with relaxation and sleep readiness. Randomized trials show insomnia severity reduction 40–60% with biofeedback comparable to cognitive-behavioral therapy for insomnia (CBT-I).

Quantitative feedback and progress tracking

The Biofeedback Software Suite tracks all sessions and generates summary reports: average EMG, GSR, HR, respiration rate, and trend analysis (e.g., "EMG has decreased 25% over the last 3 sessions"). Progress graphs motivate continued practice. Some systems offer take-home portable biofeedback (e.g., smartphone app + wireless sensors) allowing between-session practice and real-time progress monitoring.

Typical clinical workflow

A patient with tension headache (frequency 12/month, intensity 6/10) is referred for EMG biofeedback. Session 1 (baseline): Frontalis EMG averages 18 µV at rest, 35 µV during headache-trigger visualization. Patient is trained in progressive muscle relaxation with EMG feedback. Session 5 (week 5): Resting EMG is 8 µV (56% reduction), headache frequency decreases to 6/month. Session 10: Resting EMG 5 µV, headache frequency 2/month, intensity 2/10. The patient has developed sustained voluntary control of frontalis tension and reduced headache through both direct muscle relaxation and improved stress management. Treatment is discontinued with monthly follow-up maintenance sessions.
