Bow Thruster Product

Overview

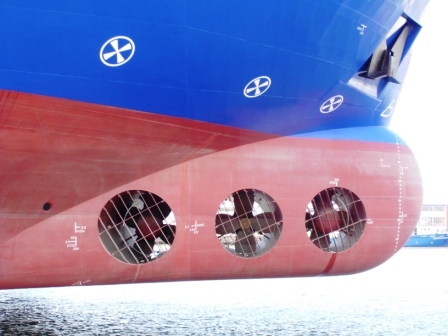

A bow thruster is a transverse propulsion unit set in a tunnel through the bow, below the waterline, that pushes the vessel's head sideways. It exists because a conventional single-screw boat has almost no lateral control at zero speed: the rudder only works with water flowing over it. With a thruster the helmsman can rotate the bow into a crosswind, hold position against tide, or walk the boat sideways onto a dock when combined with stern propulsion.

The unit described here is the most common configuration on yachts and small commercial craft: a Thruster Tunnel laminated through the hull, a submerged Gear Leg (Lower Unit) carrying a single ducted Tunnel Propeller, and a reversible Electric Drive Motor inside the hull above the tunnel. A 185 mm tunnel with a 4.4 kW motor produces about 60 kgf of thrust, appropriate for a 12 m vessel with moderate windage.

How it works

Pushing the Thrust Joystick to port closes one of the two reversing contactors in the Control System, connecting the battery to the motor with the polarity that spins the propeller to expel water out the starboard tunnel mouth; reaction thrust moves the bow to port. The Delay & Interlock Board enforces a dead time of roughly half a second on direction changes, because reversing a series motor at full speed would slam the contactors and shock-load the gear train. The same board honours the Motor Thermal Switch: at nearly 400 A the motor heats fast, and the S2 duty rating allows only about three minutes of continuous thrust before a cooling pause.

Motor torque passes through the Flexible Drive Coupling and the vertical Vertical Drive Shaft, which penetrates the tunnel wall through the sealed Tunnel Mounting Flange. Inside the oil-filled Gearbox Housing a spiral bevel Helical Gear Pair turns the drive 90° to the horizontal Propeller Shaft. The bevel set runs at roughly 1:1 because a series DC motor's speed under load already suits the propeller; the gears exist for geometry, not reduction. Twin Oil Seals keep gear oil in and seawater out, and the housing is bronze for corrosion resistance, backed by the Tunnel Zinc Anode and Propeller Anode zincs.

The Tunnel Propeller is a four-blade Kaplan type with squared-off tips running about 1.5 mm from the tunnel wall; the tight clearance is what lets a ducted propeller of only 180 mm produce useful static thrust. A Drive Shear Pin between shaft and hub is the mechanical fuse: a rope or stick jamming the propeller shears the pin instead of stripping the bevel gears.

Tunnel design

Thruster effectiveness depends as much on the tunnel as the machinery. The Tunnel Tube must sit at least one diameter below the waterline so the propeller cannot ventilate, and as far forward as hull shape allows to maximise the lever arm about the vessel's pivot point. The penetration is the largest hole in most hulls, so the tube is laminated in with substantial glass reinforcement. The Tunnel Fairing Kit deflectors at each mouth reduce the drag penalty underway, which for a well-faired installation is under a quarter of a knot, and the Tunnel Protection Grids keep lines and debris out of the blades.

Electrical installation

The dominant installation problem is voltage drop. At 400 A, even a few milliohms of cable resistance costs volts, and a series motor's thrust falls roughly with the square of voltage. The Battery Cable runs are therefore 70 mm² tinned copper, kept as short as practical, usually by fitting a dedicated 12 V Battery in the bow charged from the main bank through a DC-DC charger. The Main ANL Fuse (425 A ANL) sits within 200 mm of the battery positive post, and the Battery Isolator Switch disconnects the whole circuit at sea or in storage. Control wiring to the Joystick Control Panel carries only contactor coil current, so the helm loom is light-gauge Wire Bundle.

Operation and maintenance

Thrusters are burst devices: a competent docking uses one- to three-second pulses, not sustained thrust, both to stay inside the duty cycle and because a constant push invites overcorrection. The panel arms with a two-button power-on and times out automatically after a few minutes unattended.

Maintenance is annual and mostly underwater: renew both zinc anodes, inspect the propeller and shear pin, check the gear-leg oil for emulsification that indicates a failing seal, and confirm tunnel laminate integrity. Inside the hull, the Carbon Brush Set is inspected every 200–300 operating cycles, and terminal connections are re-torqued, since a loose 400 A joint is a fire risk. Common faults are a seized propeller from a fouled line (cured by the shear pin), a tripped thermal switch from over-long thrusting, and low thrust from undersized or corroded cabling.
