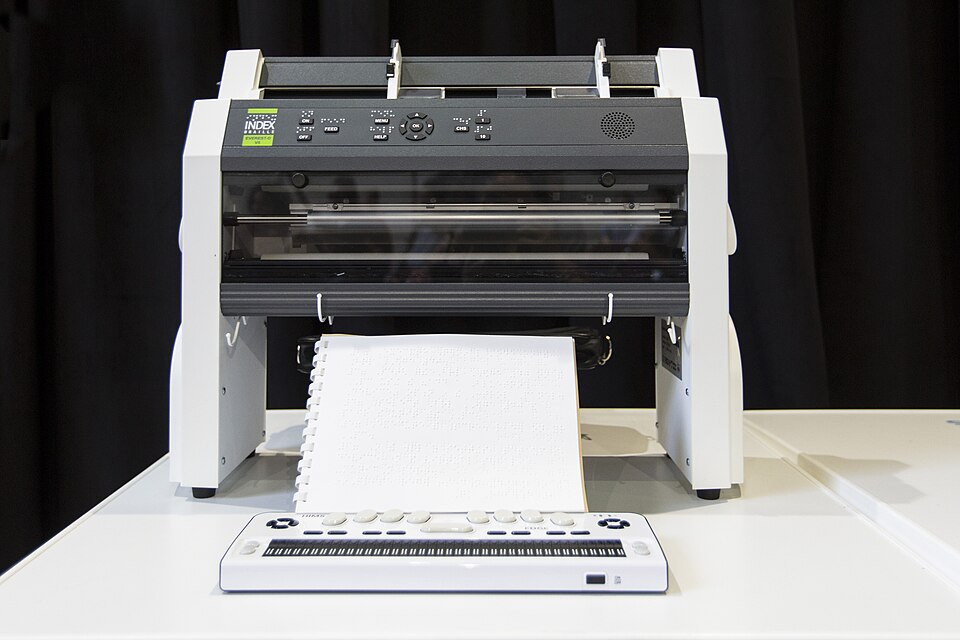

A braille embosser is an electromechanical printer specialized for producing permanent tactile braille documents on heavyweight paper. Unlike refreshable displays, embossed braille is static—once pressed, it remains readable indefinitely without power. This makes embossers essential for creating reference material, textbooks, legal documents, and archival records that blind users carry with them or study at length.
The core mechanism uses eight electromagnetically driven hammers arranged in a 2×4 pattern, each striking in unison against corresponding male dies. Beneath the paper lies a female mold (the platen), so each hammer blow creates a raised dot on the opposite surface. After embossing one cell of braille (typically 0.254 mm pitch), the stepper motor advances the paper to the next position. A single embossing cycle takes 40–80 milliseconds, meaning a typical embosser produces 15–25 cells per second, or roughly 40–80 words per minute.
Braille embossing technology has remained fundamentally unchanged since the 1960s: electromagnetic actuation, mechanical dies, and paper advancement by stepper motor. The innovation space lies in noise reduction, reliability, and print fidelity. Modern units incorporate acoustic hoods (reducing output from 90 dB to ~75 dB), precision-ground dies, and solenoid designs optimized for crisp dot definition and minimal bounce.
How it Works
The user sends a braille document to the embosser via USB or parallel port. The Control Electronics board reads each character from the input stream and immediately maps it to its eight-bit dot pattern (e.g., the letter 'A' → binary 100001, dots 1 and 4 raised). The MCU then activates the corresponding [[braille-embosser-solenoid|solenoid channels]], each pulling a Hammer Push Rod downward in parallel.
The timing is synchronized: all eight hammers strike within 2–3 milliseconds of each other, creating a crisp embossed cell with uniform dot height. The [[braille-embosser-spring-return|return springs]] instantly restore hammers to neutral, and the Paper Feed Stepper advances paper by one cell width (0.254 mm). The Position Encoder encoder provides feedback so the controller knows when to fire the next cell.
[[braille-embosser-paper-guides|Paper guides]] keep the sheet centered throughout, and a [[braille-embosser-platen|backing platen]] directly behind the die block provides firm support—without it, paper would deflect under impact and dots would be shallow. The platen is slightly curved (radius ~300 mm) to distribute clamping force evenly across all eight die positions.
When a full line is printed, the stepper motor performs a larger feed advance (typically 2.54 cm for single-spacing, 5.08 cm for double-spacing). For duplex embossing (printing both sides), the user manually flips the paper, aligns it precisely with an alignment mechanism, and embosses the reverse side.
Solenoid and Hammer Dynamics
Each solenoid is a DC push-type with a 24 V coil and ferrite core. When the controller sends a 50 ms pulse, the coil energizes and the plunger accelerates downward at ~1000 m/s². The hammer rod (hardened steel, 4 mm diameter) transfers this momentum to the die, which strikes the paper with ~350–500 grams of force—enough to permanently deform the paper fibers but not tear them.
The Spring Return Element is critical. A music wire compression spring with 2.5 mm pitch restores the hammer to the neutral position within 10–15 milliseconds after the solenoid pulse. If the spring is too weak, the hammer bounces and creates multiple shallow indentations. If too stiff, the solenoid cannot accelerate it fast enough, resulting in incomplete dot definition.
All eight solenoids receive current from a common 24 V bus, so maximum current draw is 8 × 500 mA = 4 A for each cell embossing event. The Rectifier Module must supply clean, ripple-free power; any voltage sag causes dot height inconsistency. A 10000 μF bulk capacitor and secondary LC filtering keep ripple under 100 mV.
Paper Transport and Precision
The Paper Feed Stepper is NEMA 17, typically 1.8°/step (200 steps per revolution). With a motor pinion driving a 2:1 reduction gear, one step moves paper by 0.127 mm (half a cell width). Two steps = one cell advance, so the motor effectively operates at ~100 steps per embossed cell, providing sub-dot-pitch accuracy.
The [[braille-embosser-feed-roller|feed rollers]] are soft knurled rubber with felt backing, applying gentle pressure to grip without crushing the paper. As the motor advances, friction between roller and paper surface drives the sheet forward. An encoder or optical sensor on the motor shaft confirms position, allowing the controller to detect jam or slipping.
Paper thickness tolerance is narrow: 0.15–0.30 mm. Too thin (~0.1 mm) and the die punch through, shredding fibers. Too thick (>0.4 mm) and solenoid impact is insufficient to create a crisp raised dot. Typical braille stock is 20–24 lb bond (0.25–0.30 mm), slightly heavier than standard copy paper, providing durability under repeated user fingering.
Acoustic and Reliability Considerations
Unshielded embossing produces ~90 dB SPL—comparable to a jackhammer. Offices and classrooms with embossers report user fatigue and auditory stress. Modern units wrap the hammer mechanism in 50 mm polyurethane acoustic foam, reducing peak noise to 75–80 dB. A small exhaust blower in the [[braille-embosser-acoustic|acoustic hood]] vents paper dust and helps maintain airflow through the die area, extending solenoid life.
Reliability is driven by solenoid coil thermal cycling and mechanical fatigue. High-volume embossing (e.g., transcribing a 300-page textbook) can generate hundreds of thousands of hammer strikes. Coils rated for >10^7 cycles are standard. Plunger rod surface hardness prevents galling from repeated spring impact. Die blocks are precision-ground tool steel, rated for 10^8+ impressions before wear becomes noticeable (dot sharpness degradation).
Duplex and Interpoint Embossing
Standard embossing places dots on one side only. Duplex embossing allows both sides of a single sheet to carry braille—critical for reducing material consumption on long documents. The user flips the paper after the first side completes and manually re-inserts it with an alignment pin system. Duplex embossing requires careful spacing (typically 5.08 cm lines) to prevent dots on the underside from interfering with fingering patterns on the obverse side.
Some advanced units support interpoint embossing: printing opposite-facing pages (odd side and even side) on both surfaces of a single sheet, mimicking how sighted books are bound. This requires mechanically precise dual-platen clamping and careful firmware control to avoid dot overlap.
Standards and Compatibility
Braille embossers adhere to ISO/IEC 11582 (Information technology—Equipment for the deaf-blind; braille embosser codes), defining dot spacing, die geometry, and electrical interfaces. Firmware typically supports multiple input formats: raw braille code (8-bit per cell), Unicode braille characters (U+2800–U+28FF), and ASCII-to-braille translation tables for eight-dot contracted braille (Grade 2).
