Broadcast Studio Camera Product

Overview

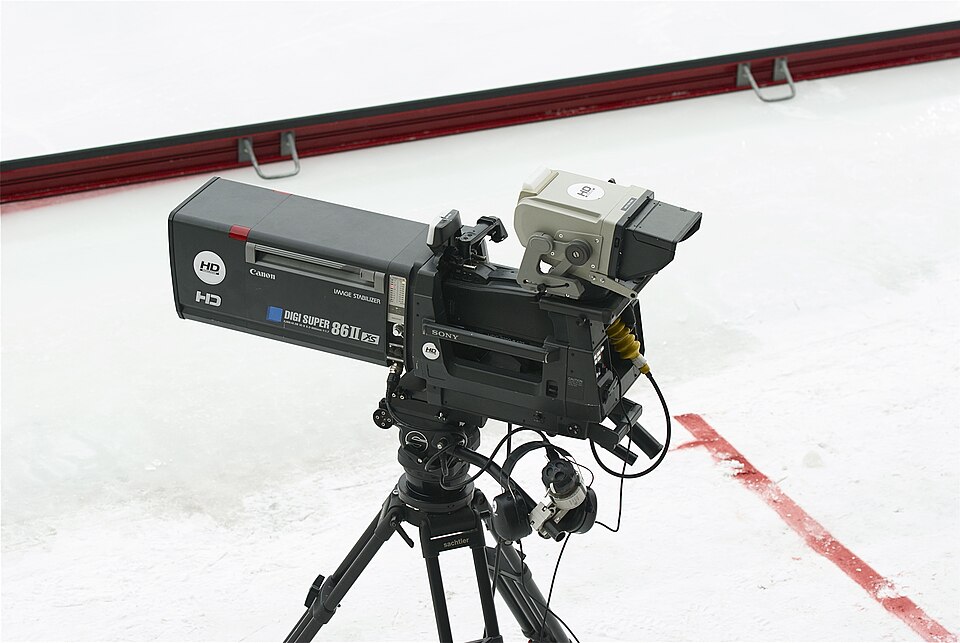

A broadcast studio camera is the workhorse of live television, designed to deliver stable, color-accurate image over extended periods in a professional control environment. Unlike documentary or cinema cameras that prioritize portability, broadcast cameras mount on large robotic rigs or manual pan-tilt heads at the studio floor, tethered to a fiber or triax remote-control trunk that feeds power, focus commands, and signal back to a production control room. The Camera Head houses a large-format sensor—typically a 2/3-inch or 1-inch imager—yielding the resolution and color fidelity required for prime-time video, and the B4 lens mount is the broadcast standard, allowing a studio to swap among dozens of interchangeable glass lenses without opening the camera body.

The sensor signal flows through an Signal Chain that performs A/D conversion, color matrix transformation (converting RGB to YCbCr), gamma correction, and mastering, emerging as broadcast-grade SDI video. The Fiber / Triax Adapter allows the camera to run over a single fiber or triax cable from the production truck, embedding both video and control bidirectionally. On the front, the Control Panel provides immediate access to iris, focus, and zoom through the lens optics, while a Viewfinder on the back—often a 1.3-inch color LCD—gives the on-set camera operator framing and focus confirmation. The Filter Wheel (ND/CC) motorizes ND and color correction filters into the optical path to adapt to changing daylight or set lighting without swapping glass.

How it works

The Sensor Block sits at the optical axis, behind the B4 lens mount. Light passes through the interchangeable lens, bounces off the IR Corrector Lens to block thermal infrared that would otherwise fog the image, and lands on the large imager. The sensor is scanned in interlaced or progressive video raster—typically 1080 interlaced at 59.94 fps (NTSC) or 50 fps (PAL) for broadcast, or 1080p/2160p for higher-end production—and the A/D Converter Board immediately quantizes the analog image into a digital stream at 10 or 12-bit precision, one sample per color channel per pixel.

The Color Space Converter then applies the color space matrix, converting the camera's native RGB response into YCbCr—the standard broadcast representation in which luma (Y) carries brightness and chroma (Cb, Cr) carries color difference. This is where gamma correction also happens: the raw sensor response is linearized and then re-encoded to the camera's gamma curve (rec.709 for HD broadcast, rec.2020 for UHD) to preserve shadow and highlight detail in distribution.

The SDI Output Card drives either an SDI (Serial Digital Interface) port for short runs to the production truck, or an embedded Fiber Optic Module that sends the signal over a single-mode or multi-mode fiber trunk. SDI is point-to-point video only; for remote control, a Fiber / Triax Adapter on the back can multiplex power and control signals onto the same fiber or triax cable, allowing the operator at the production truck to command iris (aperture), focus, and color balance while the camera sends full-bandwidth video back.

The Viewfinder is a small high-contrast monitor mounted on a rotating arm at the camera rear, fed a tap of the processed video so the on-set operator can frame and check focus before recording. Focus peaking—an overlay that highlights edges—is essential for manual focus on a moving subject, and magnified playback on the viewfinder confirms the lens is sharp before the director calls "rolling."

The Power Supply feeds the sensor and processing logic from AC mains or a studio battery rail, and the Tripod Collar & Pad provides a friction shoulder pad for hand support and a dovetail clamp for the robotic pan-tilt head that controls pan, tilt, and zoom in response to the production director's remote jog wheel. The modular B4 lens mount and Filter Wheel (ND/CC) mean the camera can be adapted to different focal lengths and lighting conditions without breaking down the setup—a single studio might own ten different broadcast lenses and slot them on the camera depending on the shot geography and depth-of-field taste.

Broadcast signal path and standards

Broadcast cameras output either composite (NTSC/PAL) or digital formats. SDI—and its high-definition variants HD-SDI and 3G-SDI—serialize the YCbCr stream into a robust point-to-point signal immune to ground loops and crosstalk. A professional production truck receives the SDI feed at a master control room, where a video router switches between multiple cameras, a character generator burns graphics over the live feed, and the entire composite output is encoded for transmission. In modern remote operations, the camera sends video and telemetry over a fiber trunk to a studio hub, decoupling the camera from the truck's ground plane and allowing longer cable runs without signal degradation.

The Viewfinder loops a low-bit-rate JPEG or H.264 stream over a separate control channel so the camera operator sees framing and focus assist in real time, independent of the main SDI output.
