Car Wash Tunnel System Product

Overview

An automated car wash tunnel is a commercial facility transporting vehicles through a series of automated wash stations: rotating brushes, microfiber mitts, high-pressure water jets, and hot-air dryers. The vehicle progresses on a conveyor belt while stationary equipment applies wash solution, scrubs exterior surfaces, rinses, and dries. A single tunnel can wash 4 vehicles per hour at full throughput, eliminating labor-intensive manual hand-washing and enabling standardized wash quality across high-volume operations (commercial fleets, car rental companies, dealerships).

The facility is a welded steel-frame tunnel (2.5 m wide × 2.2 m high × 8 m long) with a vehicle entrance and exit. A chain-driven conveyor moves vehicles at 0.5 m/min (15-minute wash cycle), powered by a 5 hp motor with variable-frequency drive allowing cycle-time adjustment.

The wash sequence includes five stages:

Stage 1 (0–2 m): Pre-soak and brush washing. The vehicle enters and is immediately sprayed with low-pressure wash solution containing detergent. Two rotating cylindrical brushes (soft nylon, 40 durometer) contact the vehicle sides and top. The brushes rotate at 40 rpm while the vehicle moves at 0.5 m/min, creating continuous scrubbing action. The brush arms are spring-loaded, maintaining gentle contact pressure (~5 kg/cm²) to avoid paint damage while removing road grime, bird droppings, and light contaminants.

Stage 2 (2–4 m): High-pressure preliminary rinse. Horizontal arches (top and bottom) spray high-pressure water (40 bar, 100 L/min total) removing brush wash residue and loosening debris. The top arch sprays down on the vehicle roof and hood; the bottom arch sprays upward, cleaning the underbody and wheels.

Stage 3 (4–6 m): Microfiber mitt wash. Two rotating microfiber mitt modules (cloth-strip wound on drums) contact the vehicle in a second wash pass, using gentler friction than bristle brushes. Fresh wash solution is sprayed onto the cloth, and the mitt drums rotate at 30 rpm. This stage is particularly effective for paint-sensitive vehicles (clear-coat finishes, polished metal) where bristle contact might cause micro-scratches.

Stage 4 (6–7.5 m): Final high-pressure rinse. The same arch system sprays high-pressure water a second time, removing all soap residue and ensuring a spot-free rinse. Water quality is critical at this stage: mineral-rich tap water leaves spots after drying, requiring softened or deionized water. Most facilities use water recirculation with sand filtration to minimize spot-forming minerals while reducing water consumption from 500 L/vehicle (full fresh-water wash) to 100 L/vehicle.

Stage 5 (7.5–8 m): Hot-air drying. A high-velocity blower (5000 m³/h) draws ambient air through a 20 kW electric heating element, warming the air to 40–50°C. The heated air is directed through slot nozzles across the vehicle width and length, evaporating residual water in 1–2 minutes. Vehicle motion carries the water droplets toward the exit as the air dries the surface.

The water recirculation system is critical for environmental and economic efficiency: a 5000 L underground sump tank collects all rinse water and wash spray runoff. A centrifugal circulation pump (100 L/min) draws from the sump and forces water through a sand filter (removing suspended solids) and a settling chamber (allowing heavy particles to sink). Filtered water is recirculated back to the wash stages. Fresh water from the municipal supply (or on-site tank) is automatically added as makeup to replace evaporative and carry-off losses. This system reduces water consumption by 80% and wastewater discharge by a similar amount, compared to non-recirculating systems.

The control system is a programmable logic controller (PLC) with a touchscreen interface. Proximity sensors detect vehicle entry (triggering wash start) and exit (triggering brush/mitt retraction). The PLC sequences each stage automatically: detergent injection timing, brush engagement/retraction, solenoid valve activation for arch rinsing, and dryer activation. Operators can adjust cycle parameters (brush pressure, wash duration, water temperature) via the touchscreen. Fault detection (low water pressure, high pump temperature, blocked nozzles) triggers audible alarms and halts the conveyor, preventing vehicle damage.

How it works

A vehicle arrives at the wash entrance and the operator (or customer via pay kiosk) selects wash type: Basic (brushes + rinse), Deluxe (brushes + mitts + rinse), or Premium (full wash including undercarriage spray). The PLC confirms the selection and activates the entrance guide lights.

The vehicle enters the tunnel and is captured by the conveyor chain via wheel guides. The Vehicle Conveyor System begins moving the vehicle at 0.5 m/min, and the first Rotating Brush Modules module engages. A low-pressure pump sprays car-wash-tunnel-wash-solution (pre-mixed detergent) as the Brush Cylinder rotates, contacting the vehicle sides with soft nylon bristles. The brush rotates at 40 rpm while the vehicle moves at 0.5 m/min, creating a scrubbing action with 30:1 brush-to-vehicle relative motion.

After 2 minutes (2 m of conveyor travel), the first brush retracts via its Brush Solenoid, and the top-and-bottom High-Pressure Water Arches activate. High-pressure water (40 bar) sprays from 24 nozzles, washing away loose dirt and brush detergent. The High-Pressure Pump is powered by a 10 hp motor, consuming peak electrical load at this stage.

At 4 m of travel, the second Microfiber Mitt Modules module engages. The microfiber cloth is sprayed with fresh wash solution, and the mitt drum rotates at 30 rpm. This is gentler than the bristle brush and effective for vehicles with premium paint finishes. The mitt cloth is replaced every 1–2 months as it accumulates embedded dirt.

At 6 m, a second high-pressure rinse arch spray activates, removing all soap residue. Water recirculation begins at this stage: much of the rinse water drains to the Sump Tank, where it is filtered and recirculated. Only ~20 L of fresh makeup water is added per vehicle to compensate for evaporative and carry-off losses.

At 7.5 m, the Air Drying System blower activates. The Drying Blower draws ambient air and forces it through the Heating Element, warming to 45°C. The hot air is directed through Dryer Slot Nozzle across the vehicle top and sides. The Dryer Thermostat maintains 40–50°C; if ambient temperature is high (above 30°C), the thermostat reduces heating element output to conserve energy.

The vehicle exits the tunnel at 8 m, and the conveyor automatically stops. The next vehicle can immediately enter (if queued), or the system waits for the next customer.

Daily operation includes periodic maintenance: the sand Sand Filter requires backflushing every 1–2 days to remove accumulated sediment; the Settling Chamber is drained weekly; brush and mitt modules are inspected for wear and replaced annually; the High-Pressure Pump is serviced every 500 operating hours (~3 months).

Operational constraints

Water quality is critical: high-mineral tap water creates spots after air drying. Most facilities use softened water (ion-exchange resin to remove calcium and magnesium). Alternatively, deionized water (completely mineral-free) prevents all spotting but is expensive (~USD 1 per liter in some regions).

Brush and mitt wear reduces effectiveness: soft nylon bristles harden and become less flexible over time, increasing scratch risk. Worn mitts accumulate embedded dirt and create streaking. Replacement costs (bristle brushes USD 500 each; mitt drums ~USD 300 each) are significant maintenance expenses. High-volume facilities (4 vehicles/hour × 12 hours/day = 48 vehicles/day = 360/week) replace brushes every 2 years (USD 1000/year) and mitts annually (~USD 600/year).

Motor electrical load peaks during high-pressure arch spray: the 10 hp pump motor draws ~8 kW (assuming 85% electrical efficiency). Multiple stages operating simultaneously (brushes + mitts + dryer) can exceed 25 kW total, requiring three-phase 100 A service (approximately 20 kW sustainable). Undersized electrical services limit throughput: if the facility only has 30 A single-phase service (7.2 kW available), simultaneous brush + dryer operation will trigger breaker trips.

Weather impacts operations: high ambient temperatures (above 35°C) cause dryer air to exceed vehicle paint safe limits (above 50°C); operators must reduce heating or increase air flow. Freezing (below 0°C) can freeze water on vehicle surfaces if the dryer air is insufficient. Dust storms reduce visibility in open facilities but are less relevant for enclosed tunnels.

Underbody spray can damage vehicles: the 40 bar bottom arch spray can force water into seals, brake systems, and electrical connectors. Older vehicles with poor weather sealing may suffer water ingress. Modern cars are designed to tolerate underbody washing, but some manufacturers recommend against high-pressure spray on certain models.

Oversized vehicles (large SUVs wider than 2.5 m, or taller than 2.2 m) cannot fit in the tunnel. The facility must have a separate hand-wash bay for these vehicles or reject them.

Market and variants

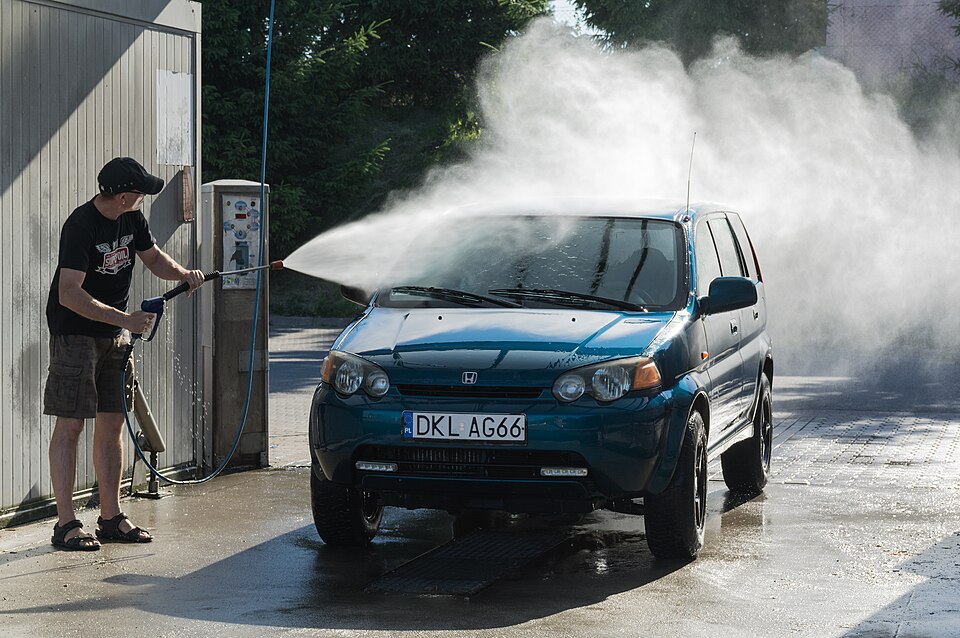

Self-service car washes: Coin-operated spray booths where customers manually spray their vehicle using a high-pressure wand. These are low-capital facilities (cost ~USD 20,000 per stall) but labor-free.

Tunnel washes: Fully automated (like the description above), cost USD 200,000–500,000 to build, but handle high volume (4+ vehicles/hour).

Touchless car washes: Tunnel systems using only high-pressure water jets and chemical spray, without brushes or mitts. These reduce scratch risk but are less effective on heavy contamination.

In-bay automatics: Stationary brush/mitt equipment that moves back-and-forth over a parked vehicle. Lower capital cost (USD 80,000–150,000) and simpler installation than tunnels, but slower throughput (1 vehicle/10 minutes).

Hybrid systems: Tunnel wash followed by hand-detailing (interior vacuum, hand-wax application) for premium services.

Environmental regulations increasingly mandate water recirculation and sediment removal: California and EU regions require facilities to treat wash water and prevent sediment discharge to storm drains. Recirculation systems add capital cost (USD 50,000–100,000) but reduce operational water costs enough to achieve payback in 2–3 years at high-volume facilities.

Modern touchless and waterless car wash technologies (using biodegradable solvents sprayed and buffed off) are emerging as environmental alternatives, though not yet widespread. These avoid mechanical contact-scratch risk but require operator skill and are not suitable for extremely dirty vehicles.
