A circuit-level energy monitor breaks down a home's or building's total electrical consumption by individual branch circuit, providing granular visibility into which loads consume the most energy. Unlike a utility meter that shows only whole-building consumption once per month, a circuit monitor updates every 10 seconds and identifies specific culprits: the kitchen oven, HVAC compressor, pool pump, water heater, or phantom loads.

This visibility empowers occupants to shift energy use to off-peak hours, identify and eliminate waste, and optimize charging for electric vehicles and home batteries. For building managers, circuit-level data enables fault detection (a sudden power spike on a circuit suggests an electrical short), and for grid operators, aggregated data from thousands of monitors provides demand flexibility and early warning of grid stress.

Architecture

Non-Invasive Current Sensing

The Current Transformer Array is the key innovation: 20 split-core [[circuit-level-energy-monitor-ct-clamp|current transformer clamps]] wrap around individual circuit conductors without cutting any wires. Each CT has a 100 A primary and 5 A secondary; when 50 A flows through the conductor, the secondary outputs 2.5 A, proportionally representing the load.

The clamps are mounted on a DIN-Rail Mounting Plate, an aluminum rail that positions them above the main panel's bus bar. Installation takes 30–60 minutes and requires no electrician to de-energize the service.

Signal Conditioning and Digitization

The Analog Signal Processor receives 20 analog current signals from the CT secondaries. A Multi-Channel ADC Chip, a 16-bit analog-to-digital converter with a 20-channel multiplexer, samples all 20 channels at 1 kHz. At this rate, the converter resolves 1% of full scale (1 A out of 100 A), enabling detection of even small loads.

The ADC output is buffered through a Digital Isolator, a digital isolator that breaks the ground loop between the panel and the remote gateway, eliminating 50/60 Hz noise that would corrupt measurements.

Power Calculation

The processor in the Local Data Hub converts RMS current to power using the formula:

Power (watts) = RMS Current × Line Voltage

For single-phase circuits, line voltage is fixed (120 V or 240 V), and the processor simply multiplies measured current by this constant. For three-phase circuits, the processor calculates vector sum of three phase currents, accounting for phase angle. Integrating power over time yields energy (kWh).

Wireless Data Transmission

The Wireless Transmitter Module module transmits all circuit power readings to a cloud analytics platform. Most deployments use Wi-Fi 802.11n (fast, free) for homes with internet, and fall back to LTE cellular (via the LTE Modem modem) if Wi-Fi is unavailable. Data packets are small (~200 bytes per update), so cellular data usage is typically <100 MB/month.

The Local Data Hub, a small single-board computer, aggregates all sensor data, caches it locally (30-day rolling history), and syncs with the cloud every 10 seconds to 1 hour depending on configuration.

Power Supply and Redundancy

The Power Supply Module supplies 12 V and 5 V to all subsystems. Most installations accept 120 VAC from an adjacent breaker or 24 VDC from a solar inverter. Some deployments use PoE (Power-over-Ethernet) to supply power and data over a single Ethernet cable, eliminating the need for separate AC wiring.

Installation and Configuration

Installation is a three-step process:

1. Clamp placement: Electrician positions the 20 clamps around the top 20 breakers in the panel (or fewer if monitoring only critical circuits).
2. Power and network: Connect 120 V AC or 24 VDC to the [[circuit-level-energy-monitor-power-conditioning|power supply]], and run Ethernet or Wi-Fi to the gateway.
3. Cloud provisioning: Scan a QR code on the gateway, provide Wi-Fi credentials and cloud account details, download a circuit layout template, and assign names to each breaker ("kitchen," "garage EV charger," etc.).

Most installations are complete within 1 hour, with zero downtime to the electrical service.

Energy and Economic Use Cases

Home Energy Management

A homeowner sees that their water heater consumes 4 kW during peak rate hours (4–9 PM, $0.22/kWh) but only needs 1 kW during off-peak (midnight–6 AM, $0.08/kWh). Installing a smart timer to heat water at night saves $300/year. Another homeowner discovers their "always-off" entertainment center draws 150 W 24/7 from phantom loads; unplugging it saves $100/year.

Demand Response

Building owners can enroll their facility in a utility demand response program. When the grid is stressed, the utility signals the gateway to reduce consumption by 10%. The gateway identifies the three most power-hungry circuits (HVAC, water heating, pool pump) and temporarily reduces voltage to each by 10%, shaving 15 kW of demand without disrupting occupant comfort. The building earns $2,000–$5,000/year for participation.

Solar Integration

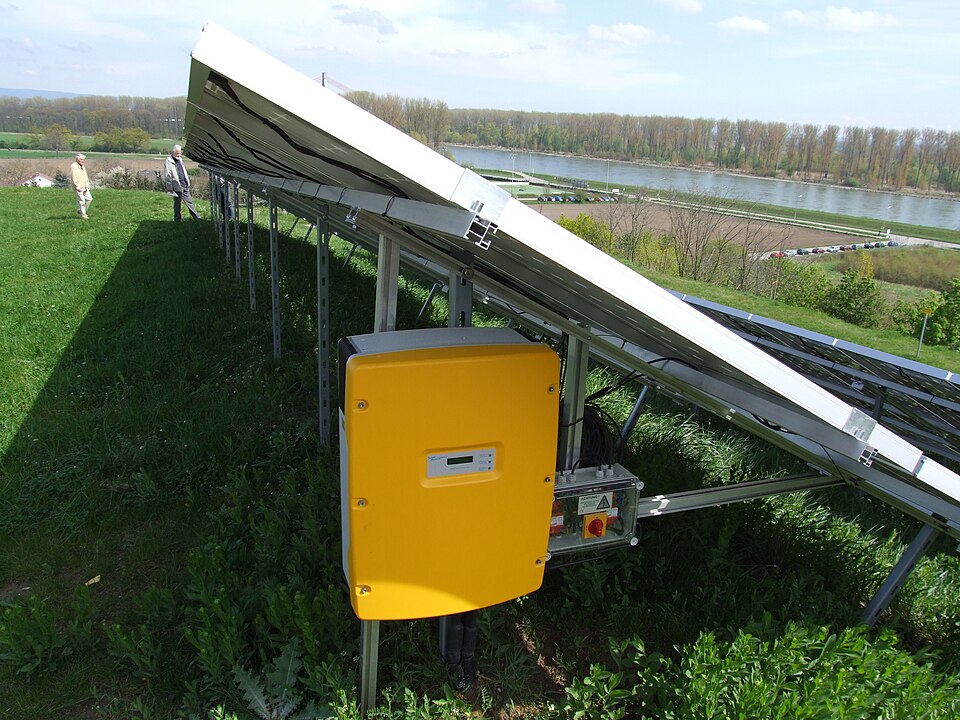

A home with a 10 kW rooftop solar array uses the circuit monitor to shift high-consumption activities (EV charging, hot water, laundry) to midday hours when solar production peaks. By maximizing self-consumption, the home reduces grid imports by 30–50%, cutting electricity bills by $1,500–$3,000/year while reducing carbon emissions.

Fault and Anomaly Detection

The cloud analytics engine learns the typical power signature of each circuit. If the bedroom circuit suddenly draws 50 A at 3 AM (when the room should be dark and unoccupied), the system alerts the homeowner to a potential short circuit or overloaded device. Early detection can prevent fires and equipment damage.

Standards and Interoperability

Circuit monitors must comply with:

• IEC 61000-4-3: Immunity to radiated electromagnetic interference (essential for Wi-Fi coexistence).
• IEEE 1451: Standard for sensors and transducers, enabling plug-and-play integration.
• OpenADR 2.0a: Protocol for demand response signal reception (if cloud integration is required).
• Wi-Fi Alliance: Certification for 802.11n and Bluetooth interoperability.

Many utilities are adopting "smart grid" data standards like ANSI C12.18 and C12.22 to enable circuit monitors to directly receive pricing and demand signals from the utility without cloud intermediaries.

Grid and Environmental Impact

When deployed at scale (tens of thousands of homes), circuit monitors enable utilities to implement advanced demand response strategies. Traditional approaches require the utility to estimate how much load can be shed; circuit monitors provide real-time granular data, enabling precise demand forecasting and nearly eliminating overestimation and resulting price manipulation.

On a per-home basis, a circuit monitor typically enables 5–15% reduction in total energy consumption through behavioral changes and load shifting, equivalent to a small solar array. Aggregated across a utility service territory with 1 million households, this is comparable to a 100–150 MW peaking plant, eliminating the need for new fossil fuel infrastructure and reducing grid carbon intensity by 5–10%.
