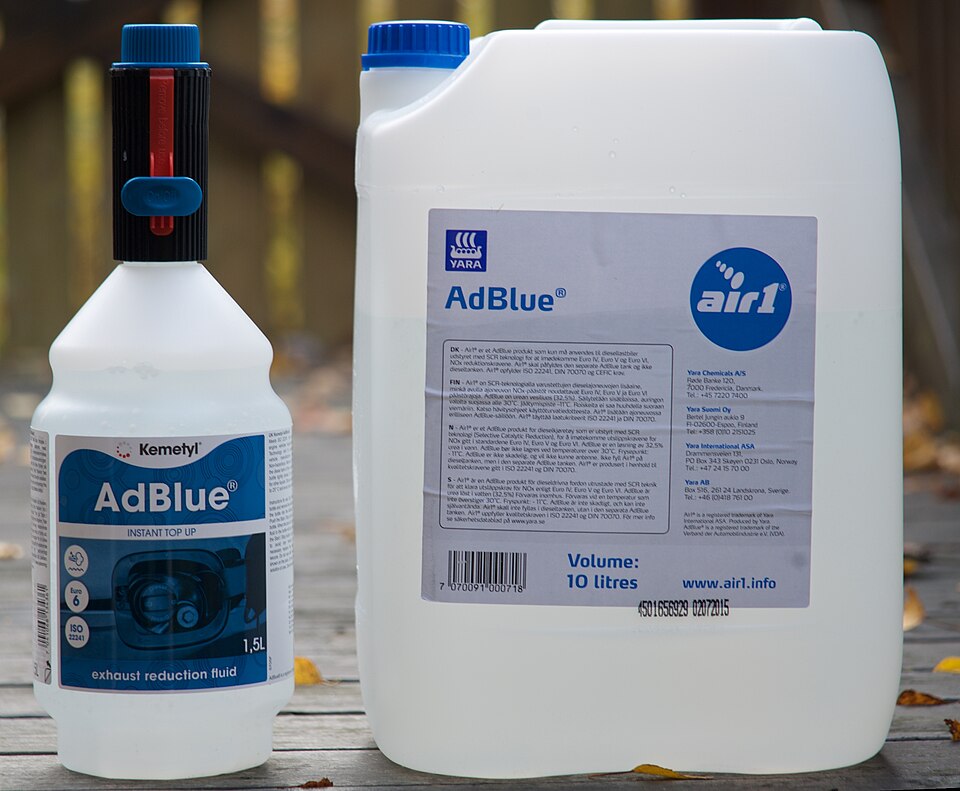

DEF Dispenser Product

Overview

DEF (Diesel Exhaust Fluid) dispensers supply the urea solution consumed by Selective Catalytic Reduction (SCR) systems on modern diesel vehicles. Trucks and buses rated 2500+ lb GVWR require SCR to meet EPA nitrogen oxide (NOₓ) emission standards; vehicles refuel DEF every 5000–10000 miles of normal operation (faster than fuel consumption due to urea's high exhaust interaction ratio).

A DEF dispenser is a simplified fuel pump: no high-pressure metering, no payment gateway integration (often co-located with diesel pumps under the same Fuel Management System). The critical challenges are (1) maintaining DEF above its freeze point (32 °F) and (2) ensuring sterile, particle-free dispensing (DEF is hygroscopic and easily contaminated).

Tank and Heating System

The Heated Cabinet Assembly is an insulated stainless steel or epoxy-coated cabinet containing a DEF Storage Tank food-grade polyethylene tank holding 30–100 gallons of DEF. The Cabinet Foam Insulation is 2-inch foam lining the cabinet walls, maintaining tank temperature during cold winter nights.

The Immersion Heating Element is a 3 kW electric immersion heater submerged in the tank. The Thermostat Control Switch bimetallic control maintains setpoint: if tank temperature drops below 70 °F, the heater energizes; at 100 °F, the heater de-energizes. This floating control keeps DEF between 70–100 °F year-round, preventing crystallization (which occurs at 32 °F and makes DEF pump-resistant).

The Solid-State Relay is a solid-state relay (SSR) switching the 240 VAC heating load; because urea is corrosive, the SSR's optoisolation prevents electrical noise from degrading the fluid.

Pump and Metering

The Dispensing Pump Unit is a simple positive displacement pump. A Pump Drive Motor 12 VDC brushed motor drives Pump Gears polymer composite gears through the Pump Housing aluminum housing. The pump delivers 5 gallons per minute—slow compared to gasoline pumps but sufficient for DEF viscosity.

The Volume Meter measures volume dispensed. An oval gear or piston meter rotates proportionally to fluid flow; a Meter Magnetic Pickup magnetic pickup counts rotations and outputs pulses. One pulse typically represents 0.01 gallons; the Display Console accumulates pulses and calculates total volume and price.

Filtration

DEF is hygroscopic (absorbs moisture from air) and easily contaminated with particulates. Urea crystallizes around dust; crystals can jam vehicle SCR injectors, causing expensive repairs. The DEF Filter Assembly is a 0.5 micron membrane filter installed inline between tank and pump.

The Filter Membrane membrane is hydrophobic, shedding water while trapping particles. The Filter Canister is a spin-on or threaded cartridge design; technicians replace the element every 6–12 months or when a Pressure Sensor clogging indicator shows pressure differential rising above 5 psi.

Dispensing Nozzle and Spill Control

The DEF Nozzle with Spill Containment is a simple spring-return design without the solenoid shutoff of gasoline pumps. A spring-loaded Nozzle Poppet Valve seals when back-pressure from the vehicle's filler neck is released. The nozzle spout is 1/4" OD stainless steel, smaller than fuel nozzles to prevent accidental insertion into gasoline cars.

The Spill Containment Drip Pan Drip Cup surrounds the nozzle tip, capturing minor drips. A Drip Pan under the entire dispenser holds 5 gallons, collecting larger spills. Technicians open a Pan Drain Valve periodically to dispose of spilled DEF (which is non-toxic but must be handled per EPA aquatic protection rules).

Display and Price Management

The Display Console is a wall-mounted LCD console. The Display Microcontroller microcontroller accumulates meter pulses and temperature sensor readings:

• Volume dispensed (0.1 gallon resolution)
• Price per gallon (set by operator, typically $3.50–$5.00)
• Total price (volume × price)
• Tank temperature (monitored for freeze-point risk)

Some advanced units integrate with the Fuel Management System, syncing DEF prices with fuel prices and recording transactions for inventory reconciliation. DEF is cheaper than diesel (per gallon) but consumed at a slower rate; customers are often surprised by the cost.

DEF Chemistry and Contamination Risks

ISO 22241-compliant DEF is exactly 32.5% urea (NH₂COONH₂) by weight in deionized water. Tap water or any mineral content causes urea crystals to precipitate, clogging filters and injectors. Vehicle SCR sensors detect urea concentration and can shut down the engine if DEF quality drops below 30% or exceeds 35%.

Biofouling is another risk: bacterial growth (Bacillus, Corynebacterium) in DEF tanks produces biofilm that clogs filters. Proper storage (sealed tank, temperature-controlled, replaced every 12 months even if not dispensed) prevents biofilm. The DEF Filter Assembly helps, but prevention is key.

Maintenance and Compliance

DEF dispensers require less maintenance than fuel pumps but more than diesel-only pumps:

• Monthly: Inspect heater operation, verify tank temperature range
• Quarterly: Check filter clogging indicator; replace if pressure differential > 5 psi
• Annually: Full system pressure test, meter calibration check, tank interior inspection for corrosion
• Every 2 years: Replace DEF tank if age > 3 years (shelf life limit for sealed storage)

The Heated Cabinet Assembly insulation should be intact; foam degradation reduces heating efficiency. Stainless fasteners must remain corrosion-free; any rust indicates potential tank wall degradation.

Temperature Challenges in Cold Climates

In regions with winters below −10 °C, DEF dispensers must be sized for heating demand. A 50-gallon tank in −20 °C ambient requires continuous heater operation; undersizing the heater results in freeze-up and dispenser downtime. Some cold-climate sites add trace heating to the Braided DEF Hose, electrically warmed tubing preventing urea crystallization during fill.

Retrofit to Existing Fuel Stations

Many fleet depots and fuel stations retrofit DEF Dispenser units post-construction. The 240 VAC requirement for heating often necessitates electrical upgrades. Some operators install DEF dispensers at the diesel pump island alongside fuel, using shared {{fuel-management-system}} authorization and billing (urea volume tracked separately from fuel volume).
