Dental Chair Unit Product

Overview

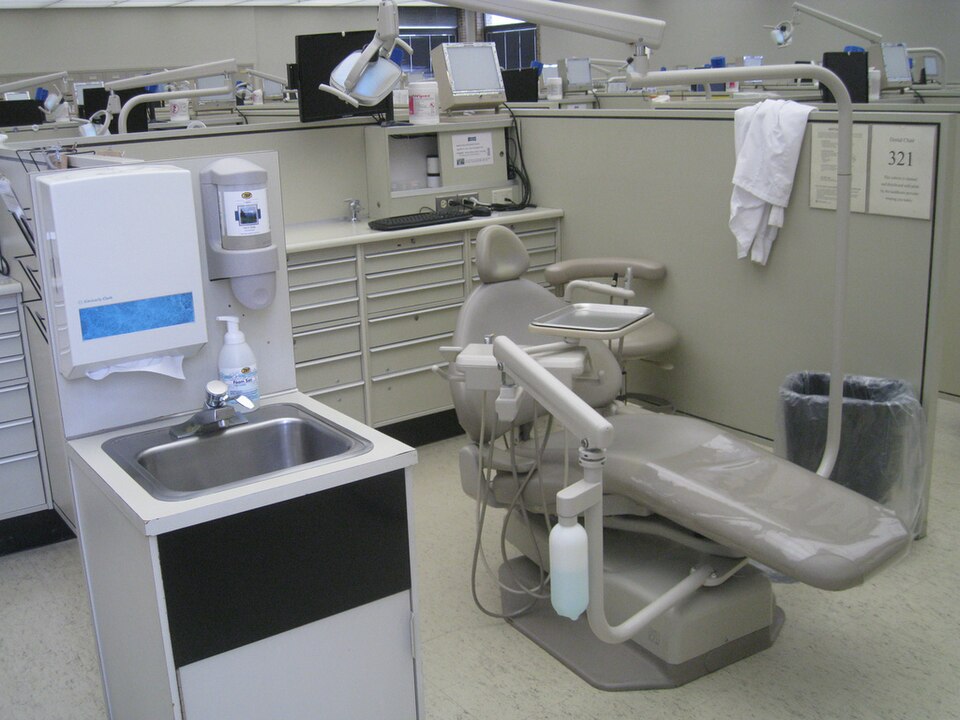

A dental chair unit is the integrated treatment center around which an operatory is built. A single floor-fixed structure carries the powered patient chair, the dentist-side delivery unit, the assistant-side suction, the water and air supply, a rinsing cuspidor, and the operating light, all plumbed and wired back to a common service hub so that one mains feed, one compressed-air line, and one water line serve the entire workstation.

The patient lies on the Patient Chair, a floor-mounted powered chair that lifts and reclines to present the mouth at the operator's working height. Instruments reach the dentist through the Delivery Unit (Dentist Side), a counterbalanced bracket table carrying the high-speed and low-speed handpieces and a 3-way syringe. The Assistant Side Unit and the Suction System clear fluids and aerosol from the field, while the Water & Air Supply conditions and meters drive air and clean water to every instrument. Rinsing is handled at the Cuspidor (Spittoon), the field is lit by the Operating Light, and the operator drives the unit from the Control Panel & X-Ray Viewer.

Construction

Every module terminates in the Junction Box, a service hub holding the medical AC-DC power supply, the air and water plumbing manifold, and the wiring harness that fans out to each subassembly. Chair motion comes from two 24 V DC linear actuators built on a common motor core: the lift actuator raises the seat column on a lead screw, and the recline actuator drives the backrest pivot. Both run against end-of-travel limit switches commanded by the chair control board, which stores the position presets and reads the foot control.

Air and water are gated by solenoid valves on the supply manifold, so a single pedal press releases drive air to the active handpiece while opening its coolant water line. The same valves feed the cuspidor bowl rinse and cup filler. The result is a workstation where chair position, instrument selection, illumination, and rinsing are coordinated from one set of controls.', },

'dental-handpiece': { specs: [ ['Type', 'Air-turbine high-speed handpiece'], ['Free-running speed', '380,000–420,000 rpm'], ['Drive medium', 'Compressed air, 2.0–3.5 bar'], ['Air consumption', '40–55 NL/min'], ['Bur type', 'Friction-grip (FG), Ø1.6 mm shank'], ['Chuck', 'Push-button collet'], ['Bur retention force', '≥ 22 N'], ['Bearings', 'Ceramic hybrid, grease/oil-mist lubricated'], ['Coolant', 'Triple-port water spray, 50 mL/min'], ['Chip air', 'Separate debris-clearing air jet'], ['Illumination', 'Fiber-optic glass rod, 25,000 lux'], ['Coupling', '4-hole / 6-hole quick-connect swivel'], ['Head diameter', '11.0 mm (standard head)'], ['Sterilization', 'Autoclavable to 135 °C'], ], body: '## Overview

A dental handpiece is the high-speed cutting instrument a dentist uses to prepare teeth for fillings, crowns, and other restorations. It is an air-driven turbine tool: compressed air spins a small bearing-mounted rotor at roughly 400,000 rpm, and that rotor grips a tungsten-carbide or diamond bur that does the cutting. A fine water spray cools the tooth and bur, a separate air jet clears debris, and a fiber-optic light pipe illuminates the working field.

The cutting forces are generated in the Head Assembly, a stainless shell that holds the Turbine Cartridge and the Push-Button Cap. The cartridge is the heart of the tool: a spindle and impeller running on ceramic hybrid bearings, with a push-button chuck that clamps the bur shank. Pressing the cap opens the chuck so a bur can be swapped in seconds. The head sits on the Body & Neck, an angled neck-and-grip shell that routes services from the back end, which terminates in the Connector & Coupling coupling and swivel that mate to the supply tubing.

How it works

Three internal services run through the Air & Water Channels channels: drive air to spin the turbine, chip air to blow debris clear, and coolant water fed to a ring of head nozzles. Drive air enters tangentially and strikes the blades of the turbine impeller, spinning the spindle and the bur it holds. Because the rotor floats on ceramic bearings, friction is low enough to reach speeds near 400,000 rpm, but cutting torque is modest, so the operator works with light pressure and lets speed remove tooth structure.

Illumination is piped separately through the Fiber-Optic Light Guide light guide, a polished glass rod that carries light from the coupling to an exit window beside the bur. The whole instrument is sealed against the autoclave so it can be steam-sterilized between patients, and the turbine cartridge is a replaceable service item that is swapped when its bearings wear.', },

'dental-xray': { specs: [ ['Type', 'Wall-mounted panoramic / intraoral unit'], ['Imaging modes', 'Panoramic + intraoral'], ['Tube voltage', '60–70 kVp'], ['Tube current', '4–10 mA'], ['Anode', 'Stationary tungsten target'], ['Focal spot', '0.5 mm (IEC 60336)'], ['Generator', 'High-frequency DC inverter'], ['Total filtration', '≥ 2.5 mm Al equivalent'], ['Detector', 'Indirect CMOS with scintillator'], ['Scintillator', 'Gd2O2S / CsI'], ['Panoramic scan time', '12–14 s'], ['Gantry rotation', 'Motorized C-arm, belt-driven'], ['Patient positioning', 'Chin rest, bite block, laser alignment'], ['Mains supply', '230 V AC, 50/60 Hz'], ], body: '## Overview

A dental X-ray unit produces the radiographic images dentists use to see caries, bone level, and root anatomy hidden from direct view. This is a wall-mounted system that performs both intraoral exposures and panoramic imaging, in which a rotating arm sweeps an X-ray source and a digital detector around the patient's head to build a single flattened image of the whole dental arch. A digital CMOS detector replaces film, so the image appears on screen within seconds.

The system hangs from the Wall Column Mount, a wall-fixed telescopic column with a motorized height drive, and reaches the patient through the Articulating Extension Arm, a counterbalanced extension arm. X-rays are generated in the X-Ray Tubehead, an oil-filled, lead-shielded head holding the tube, high-voltage generator, and collimator. For panoramic exposures the tubehead and detector are carried in fixed opposition on the Rotating Panoramic Gantry, a motorized C-arm that orbits the patient. The patient is held still by the Patient Positioning Assembly assembly, the image is captured by the Digital CMOS Sensor, and exposures are run from the Control Panel.

How it works

Inside the tubehead a high-frequency generator board steps mains voltage up to 60–70 kVp and heats the tungsten filament. The heated filament boils off electrons, which the kilovoltage accelerates into the stationary tungsten anode; the abrupt deceleration emits an X-ray beam that exits through a lead collimator defining the field. The cooling oil insulates the high voltage and carries heat to the housing, where the Tubehead Cooling Fan fan dissipates it between exposures, and the high-voltage feed reaches the head through the HV & Signal Cabling.

On the detector side, the scintillator converts X-rays to visible light, the CMOS array reads that light as a digital frame, and the readout board streams it to the console. In panoramic mode the C-arm rotates so the focal trough tracks the curve of the jaw, exposing each segment of the arch in turn as the detector reads continuously, then software stitches the strips into one image.', },

'vet-monitor': { specs: [ ['Type', 'Portable multiparameter monitor'], ['Patient range', 'Animal (small to large)'], ['Parameters', 'ECG, SpO2, NIBP, Temp, EtCO2, Resp'], ['ECG', '3/5-lead, atraumatic clips'], ['SpO2 range', '0–100 %, paw/tongue clip probe'], ['NIBP method', 'Oscillometric, tail/limb cuff'], ['Temperature', 'YSI-400 rectal/esophageal probe'], ['EtCO2', 'Sidestream NDIR, 0–150 mmHg'], ['Respiration', 'Thoracic impedance from ECG'], ['Display', 'Color LCD touchscreen'], ['Alarms', '3-level audible + tri-color visual'], ['Power', 'Medical AC-DC + internal Li-ion pack'], ['Battery runtime', '≈ 4 h on internal pack'], ['Connectivity', 'WiFi / Bluetooth to central station'], ['Isolation', 'IEC 60601 patient isolation'], ], body: '## Overview

A veterinary vital signs monitor continuously measures and displays the physiological parameters that tell a clinician how an animal is doing under anesthesia or in critical care. It is a portable multiparameter unit: one instrument tracks the electrocardiogram, oxygen saturation, non-invasive blood pressure, body temperature, end-tidal CO2, and respiration at once, using probes and cuffs shaped for animal anatomy, and raises audible and visual alarms when any value leaves its set limits.

The clinician reads waveforms and numerics on the Display Assembly, driven by the Main Board, a SoC compute board that runs the user interface and stores trends. Patient signals are gathered by the dedicated parameter modules: the ECG Module with its atraumatic lead clips, the SpO2 Module with a paw or tongue clip probe, the NIBP Module driving an oscillometric cuff, and the EtCO2 Capnography Module sampling exhaled gas. Their outputs converge on the Parameter Acquisition Board, an isolated analog front-end. Out-of-range readings trigger the Alarm Unit, and the unit runs from the Power System on mains or its internal pack.

How it works

Each parameter is sensed differently. The ECG module reads the heart's electrical signal from electrodes clipped to the limbs; respiration is derived from the small impedance change across those same electrodes as the chest moves. The SpO2 probe shines red and infrared light through a thin tissue site such as the tongue or paw and computes oxygen saturation from how the two wavelengths are absorbed. The NIBP module inflates a small-animal cuff with its onboard pump, then bleeds pressure through a valve while a sensor watches the oscillations to find systolic, mean, and diastolic pressure. The capnography module aspirates a gas sample and measures CO2 by infrared absorption in an NDIR optical bench.

Because the patient is electrically connected to the monitor, the acquisition board sits behind a galvanic isolation barrier that meets IEC 60601, so a mains fault cannot reach the animal. Digitized signals pass to the main board, which displays them, evaluates alarm limits, and streams data over the WiFi module to a central station.
