Overview

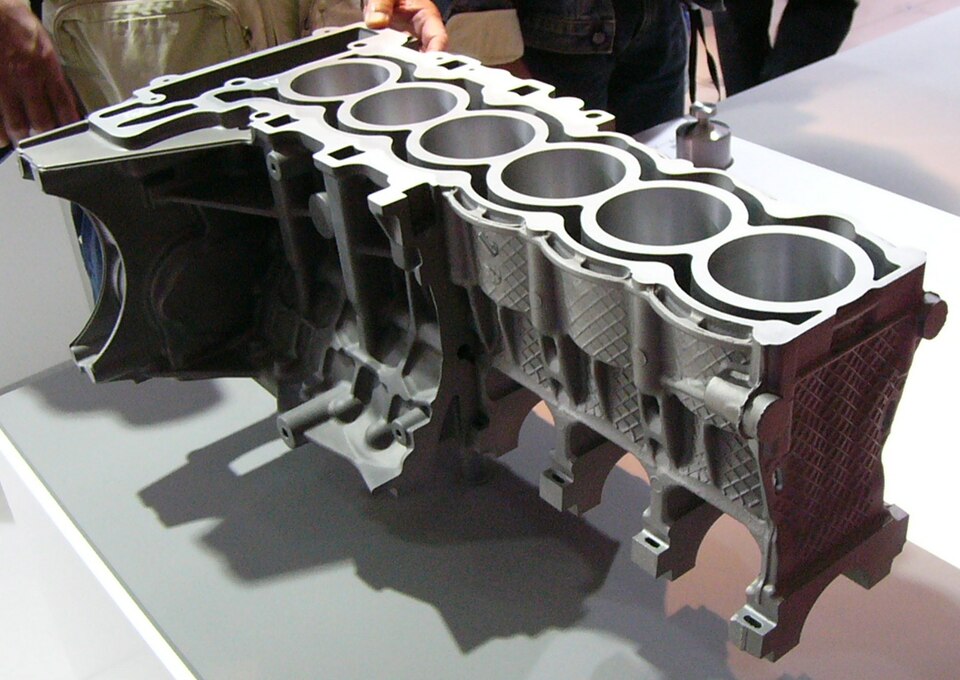

Die casting is a precision metal casting process in which molten metal is injected under high pressure into a hardened steel die cavity, producing finished or near-finished metal parts in rapid cycles. The process excels at forming thin walls (0.8–2 mm), fine details, and smooth surfaces in aluminum, zinc, magnesium, and copper alloys. A modern die casting machine is a highly integrated system combining heating, injection, clamping, cooling, and ejection in a precisely choreographed sequence lasting 15–60 seconds per part.

The Injection Unit heats and accelerates a charge of molten metal. The Clamping Unit holds the Die Assembly closed under enormous force—300–1500 tonnes—preventing the high-pressure metal from forcing the die halves apart. The Hydraulic System provides the power and control, while the Cooling & Support Systems manages cooling and vacuum to ensure quality castings. The Control Panel orchestrates the entire sequence, and the Safety & Guards prevents operator injury.

How it works

The shot begins in the Melting Furnace, a heated chamber maintaining a 100–200 cm³ pool of molten aluminum alloy at 650–750 °C, or zinc alloy at 380–420 °C. The operator or feeder adds ingot or scrap as the metal level drops. Just before injection, a precise volume of metal is lifted into the Shot Sleeve, a heated steel cylinder.

The injection cycle starts when the Clamping Unit closes the die halves, driven by a Toggle Linkage powered by a Clamp Actuator Cylinder. The toggle provides mechanical advantage, multiplying the cylinder force to hold the die closed. Once clamped (force measured continuously), the Vacuum System evacuates the die cavity to 50–100 mbar absolute, removing air that would otherwise trap in the casting, causing porosity and weakening the part.

At the signal from the Control Panel, the Plunger Head accelerates, driven by the Main Pump through a die-casting-directional-control-valve. The plunger travels 50–100 mm over 50–100 ms, accelerating the molten metal from rest to 2–10 m/s. The fast-moving stream (the "shot") is forced through a heated Nozzle & Gate into the die cavity at pressures of 200–350 bar.

As the molten metal fills the cavity, the pressure remains high, forcing the metal to fill fine details and thin sections, and compacting the structure. While the metal is still injecting and solidifying, the Cooling Circuit in the die are circulating 30–40 °C water pumped by the Cooling Water Pump. The cool die rapidly extracts heat, solidifying the outer shell of the casting within 5–20 seconds.

Once the metal is solid enough to hold its shape, the plunger is withdrawn. The clamping force is released, and the Ejector Plate is driven forward, pushing out the finished casting via a ring of hardened Ejector Pin. The Stripper & Return Plate helps eject the casting from the sprue, and the ejector pins return automatically as the machine opens for the next cycle.

The finished part cools outside the die for a moment, then is removed for deflashing (removing the thin sprue and fin that forms at the parting line), inspection, and secondary operations if needed. Cycle times are short—15–60 seconds depending on part size and metal type—allowing a single machine to produce thousands of parts per day.

Process control is critical. The Pressure Transducer sensors measure injection and hold pressure throughout the fill; deviations indicate problems like trapped air, slow fill, or nozzle blockage. The Temperature Sensor on the die monitors heat accumulation; if the die gets too hot, metal will not solidify quickly, and if it is too cold, thin walls may not fill. The Control Panel adjusts cooling flow, injection velocity, and hold pressure to maintain consistent quality, part after part.
