Diver Propulsion Vehicle Product

Overview

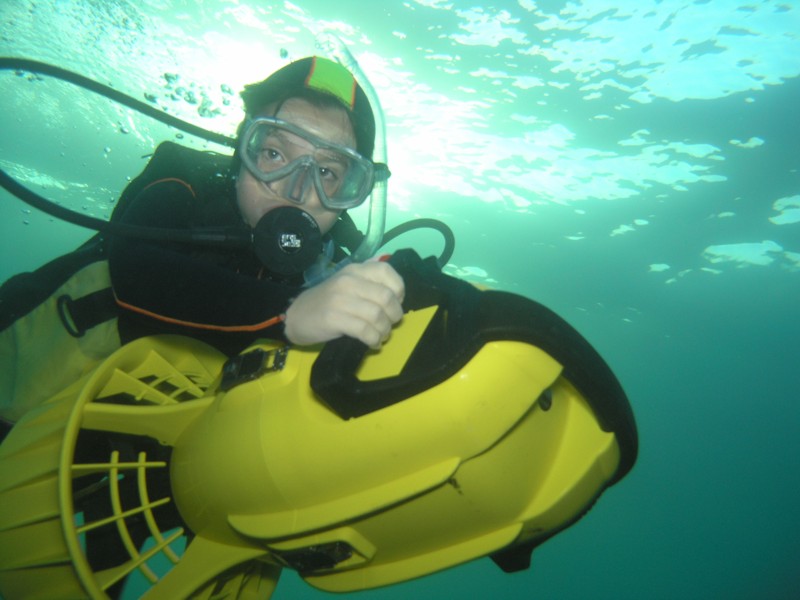

A diver propulsion vehicle (DPV)—colloquially "scooter"—is a handheld electric tow vehicle that extends underwater breathing gas endurance and exploration range. A typical recreational unit weighs 18 kg dry, operates to 40 m depth, and delivers 1.5 m/s tow speed for 3–4 hours at half-throttle. For technical and commercial diving, DPVs are force multipliers: a diver towing a scooter consumes 30–40% less breathing gas than finning the same distance, and can cover a 2-3 km search grid in a single-day operation.

The core architecture is simple: a brushless motor driving a shrouded propeller, powered by an onboard lithium-ion battery pack, with handheld throttle control. Unlike larger subsea vehicles (e.g., Work-Class ROV), a DPV is diver-portable—one person can swim it to the dive site, clip it to a tether ring, and launch. Yet the engineering of battery chemistry, motor efficiency, and hydrodynamic drag reduction directly mirrors deep-water systems at smaller scale.

Power and Propulsion

The Electric Motor is a 3 kW brushless DC outrunner mounted in a streamlined Hull Assembly. Direct-drive coupling (no gearbox) to a three-blade composite Propeller yields ~1200 rpm, balanced for low cavitation noise—critical when working in sensitive environments or during covert ops.

Thrust is generated by a Kort-type Nozzle Duct shroud, which recirculates wake and increases effective propeller loading. At 50% throttle (1.5 kW), the vehicle produces 280 lbf static thrust, enough to tow two divers in moderate current (0.5 knot). The Propeller Seal at the propeller shaft is the single most critical wear item; saltwater leakage floods the motor and ruins insulation within days.

Battery System

The Battery Section section houses 20 LiFePO4 cells (2600 mAh @ 3.2 V nominal) in series-parallel (10S2P topology), totaling 48 V nominal and 100 Wh nominal energy. LiFePO4 chemistry is chosen over NCA/NCM lithium for superior cycle life (5000+ cycles) and intrinsic thermal stability—critical in an enclosed pressure vessel. The BMS Board monitors cell voltage balance and over-temperature cutoff; if any cell drifts >0.1 V, the board triggers a controlled discharge to rebalance.

At half throttle (1.5 kW draw), the 100 Wh battery sustains roughly 3.5 hours Bottom Time. Higher throttle (3 kW) exhausts the pack in 20 minutes. Divers typically carry two battery cartridges per day-dive and hot-swap at the surface between bottom runs.

Control and Safety

The Control Pod is mounted on the center body tube at thumb reach. A rotary potentiometer under a spring-loaded trigger gives smooth 0–100% throttle modulation; divers prefer proportional control because sudden full-power engagement can induce vertigo or tangling. A Kill Switch (spring-return momentary) offers redundant emergency off: if the diver incapacitates or passes out, releasing the grip opens the main contactor, and the motor coasts to stop within 5 seconds.

The LED Indicator displays battery state-of-charge in three segments (green/yellow/red), visible in low-light conditions. Some commercial units integrate dive computer wrist interfaces via Bluetooth; military variants couple DPV control to helmet HUD telemetry.

Buoyancy and Handling

A DPV is constructed to be near-neutral buoyancy in saltwater (1025 kg/m³). The hull is foam-filled with 50 kg/m³ closed-cell syntactic polymer; lead trim pockets allow divers to dial in ±0.5 kg buoyancy at the surface. This ensures the vehicle neither sinks nor floats uncontrollably during ascent/descent—a diver with marginal buoyancy control can flip the scooter and lose orientation in murky water.

The Grip Assembly (One Side) assembly (two foam-padded bars) provides steering authority through vectored drag: shifting hand pressure left/right yaws the vehicle ±20° without manual fin flaps. A Tether Ring at the rear allows clip-in of a separate safety line, de-coupling vehicle loss from diver safety.

Operational Envelope

Typical DPV operations in commercial/technical diving involve three phases:

1. Surface tow: Vehicle is towed to site on a short line, diver finning to minimize battery drain.
2. Subsea transit: DPV engaged at 50–75% throttle, diver riding in tow behind the vehicle for 1–3 km.
3. Work zone: Vehicle pinned (tether clipped to structure), diver switches to pure finning for precise manipulation tasks (pipeline inspection, salvage, survey).

A single scooter can cover a 5-10 km offshore search grid in daylight, with midday battery hot-swap at the support vessel. Larger expeditions (e.g., 40 m depth cave surveying) stage multiple battery cartridges and carry backup scooters.

Common Failure Modes

Saltwater corrosion dominates scooter maintenance. The Propeller Seal at propeller penetration is a wear item (service every 50 hours). Motor winding insulation degrades if water ingress occurs; post-dive freshwater soak is mandatory in tropical/biofouling waters. Lithium cell voltage drift and BMS early shutdown ('puffing') occur if the vehicle sits unused for >6 months; storage requires quarterly charge/discharge cycles.

Modern DPVs integrate pressure housings and redundant float switches to detect internal water and auto-disable motor power, preventing catastrophic failure at depth.
