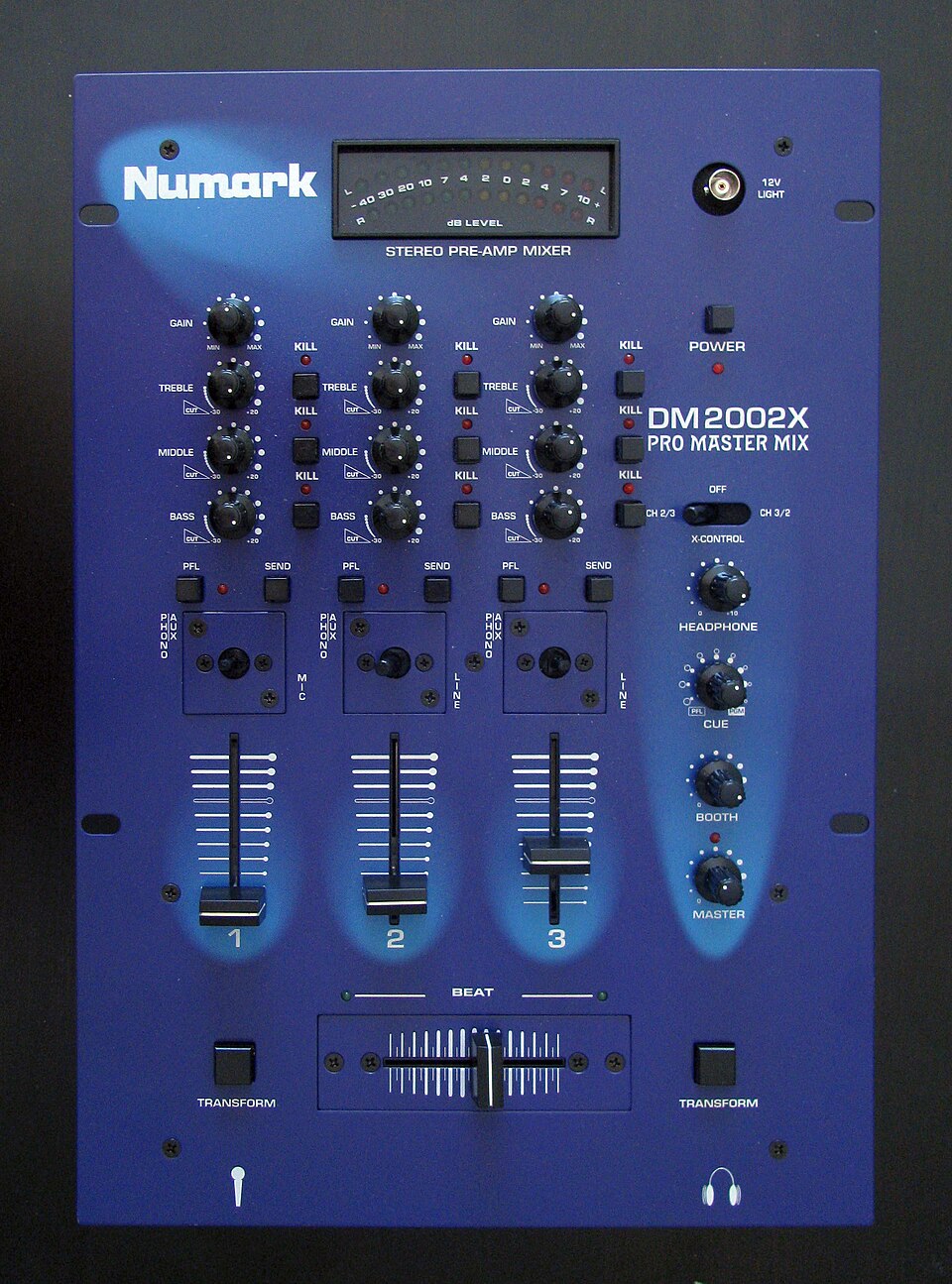

A DJ mixer blends two or more music sources into one continuous program. It differs from a studio mixing console in three ways that define the product: a crossfader for fast transitions between two buses, phono preamplifiers so turntables plug in directly, and a cue system that lets the DJ hear the next track in headphones while the audience hears the current one. The format crystallized in the late 1970s and the control layout has barely changed since: per-channel vertical faders and EQ above a horizontal crossfader, in a chassis sized to sit between two turntables.

Signal flow

Each source enters a Channel Strip. The Input Selector picks line, phono, or USB; the Trim Potentiometer normalizes the level; the three EQ Potentiometers shape it; and the Channel Fader sets its contribution. On mixers aimed at club mixing the EQ bands kill completely — turning the low band fully down removes bass rather than merely shelving it, so two tracks can play simultaneously without their kick drums stacking. The channels are assigned to bus A or B, the Crossfader Section pans between the buses, and the Summing Bus in the Master Section adds everything with enough headroom that all channels at full level do not clip.

The master path ends at the Balanced Output Driver, which feeds the house system over XLR at +4 dBu; a separate Booth Level Pot feeds the DJ booth monitors at an independent level, and the Level Meter bargraphs show how close the program sits to clipping.

The crossfader

The Crossfader Unit takes more abuse than any other control: scratch DJs cut it edge-to-edge several times per second for hours. Carbon potentiometer faders wear out and crackle, so performance mixers use contactless sensing — a magnet in the knob carriage read by Hall Sensors, with no electrical contact to degrade — rated beyond four million traversals. The Curve Control reshapes the response: a gradual blend for mixing, or a cut curve that brings a channel to full volume within the first millimeter of travel for scratching. Because the fader still eventually wears mechanically, the Fader Plate lets it be replaced with a screwdriver.

Phono preamps

A moving-magnet turntable cartridge outputs about 5 mV — a thousandth of line level — and vinyl is cut with the RIAA pre-emphasis curve: bass attenuated and treble boosted to fit the groove geometry. Each Phono Preamp therefore provides roughly 40 dB of gain through a RIAA Stage whose feedback network applies the exact inverse curve, restoring flat response. Noise discipline matters at these signal levels; the Ground Post takes the turntable's chassis earth to stop 50/60 Hz hum loops between deck and mixer.

Effects and cueing

The Effects Engine inserts a DSP loop on a selected channel or the master. A Effects Codec digitizes the bus, the Effects DSP runs echo, reverb, flanger, roll, and filter algorithms, and the Beat Detector estimates tempo so delay times quantize to musical divisions — a half-beat echo stays a half-beat echo when the DJ changes the division with the FX Controls. Processing runs at 24-bit, 48 or 96 kHz, and an Microcontroller manages parameters and the USB interface that doubles as a sound card for laptop DJ software.

The Cue Section is the half of the mixer the audience never hears. Pressing a channel's Cue Button routes its pre-fader signal to the Headphone Amplifier — pre-fader, so the DJ auditions a track that is still silent in the room. The Cue Mix Pot blends cue against master program in the headphones, which is how tempo and phrase alignment are judged before the fader comes up. The amplifier delivers 100 mW or more into 32 Ω through parallel Headphone Jacks, enough to overcome booth monitor spill.

Construction and power

The Chassis pairs a steel case with a screen-printed Faceplate about 320 mm wide — the club standard that lets any mixer drop into existing booth furniture. Controls wear color-coded caps from the Knob Set so they read under stage lighting. The Power Supply derives ±15 V analog rails through Analog Regulators kept separate from the DSP's digital supplies, preserving the better-than-0.005 % distortion figure through a signal path that may run for ten hours a night.
