Drywall Screw Gun Product

Overview

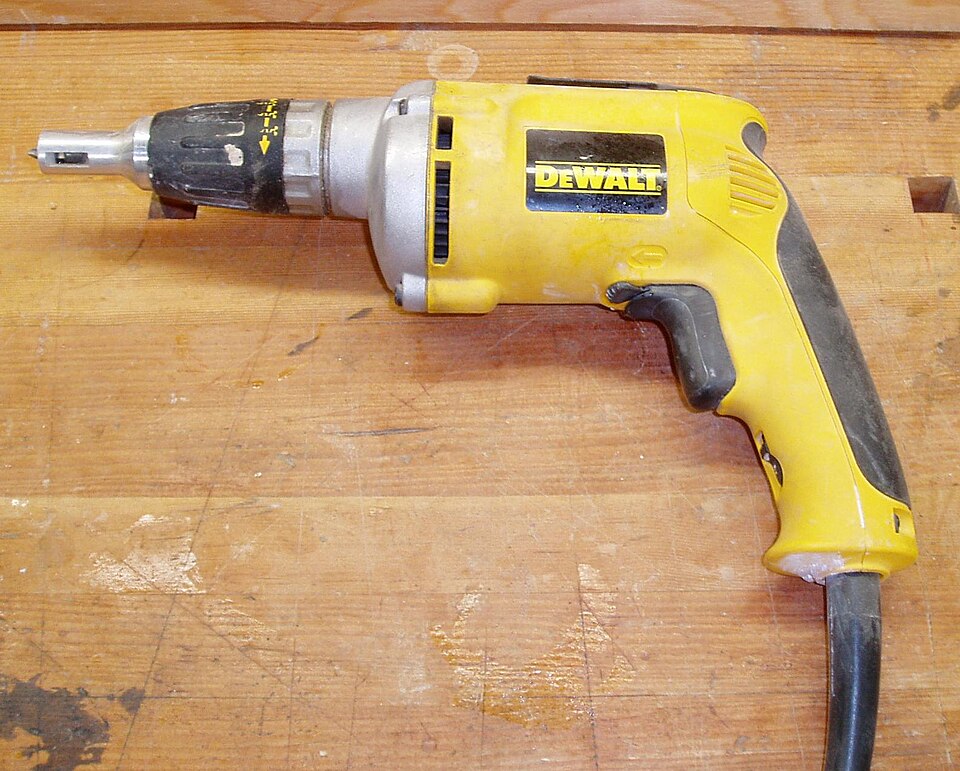

A drywall screw gun is a specialized fastening tool designed for rapid, repetitive installation of drywall screws into framing and assembly work. Unlike general-purpose drill-drivers, this tool combines three critical features: a high-speed brushless motor optimized for sustained 2000+ RPM operation, an automatic collated screw feeder that advances one screw per trigger pull, and a depth-sensing nose clutch that stops rotation when the screw head reaches the material surface. This combination enables skilled operators to install 200–300 screws per hour with consistent depth and minimal material damage.

The drywall screw gun emerged in the 1970s to replace slower hand-driving methods in gypsum board hanging. Modern cordless versions, like this model, have largely displaced pneumatic and AC-powered equipment on construction sites due to superior mobility, quieter operation, and lower tool cost.

How it Works

The High-Speed Brushless Motor is a brushless motor optimized for high RPM and relatively low torque per fastening task. When the operator squeezes the Variable Trigger Switch, the Speed and Clutch Control Board power the motor and feeder. Motor torque transfers through a Belt Drive Transmission to the spindle, where the Depth-Sensing Nose Clutch couples motor power to the chuck.

Simultaneously, the feeder mechanism engages: the Feeder Drive Motor drives a Feed Pawl Gear that indexes the collated screw strip by one position, advancing the next screw into the chuck. The screw rotates at 2000+ RPM, boring into the drywall or fastening surface.

The Clutch Nose Plate is spring-loaded and mechanically coupled to the Clutch Hub Spindle. As the screw head contacts the material and resistance increases, the nose compresses backward against the spring load. When compression reaches a preset threshold (typically 15–30 mm), a mechanical switch cuts power to both the main motor and feeder, stopping the tool instantly. The screw is now seated to the correct depth: flush or slightly countersunk, depending on adjustment.

Collated Magazine and Feed System

The Screw Hopper Magazine holds 50–100 drywall screws glued together in a spiral-wound collated strip. The Screw Strip Retainer guide rail keeps the strip centered as the Feed Pawl Gear advances it. The Magazine Release Lever ejects the magazine for empty-magazine swap, allowing operators to reload without tool interruption.

Depth Control and Material Protection

The nose clutch is critical to drywall work. Driving a screw too deep mushrooms the paper facing and weakens the drywall joint. Stopping too shallow leaves the screw head proud of the surface. The Clutch Nose Plate adjustment allows technicians to dial in the correct penetration depth for different material thicknesses (typically 1/2" or 5/8" drywall over various frame spacings).

Construction and Ergonomics

The Body and Grip Assembly is molded from durable polymer with a Rubberized Grip Sleeve sleeve that dampens vibration and reduces operator fatigue during multi-hour sessions. The belt drive design places the motor end-loaded on the spindle axis, distributing force evenly and improving balance.

The Belt Drive Transmission uses a Drive Belt and Motor Pulley/Spindle Pulley pair to step motor RPM down slightly while multiplying torque for the actual screw drive. The belt provides slight slip damping that absorbs shock when the nose clutch engages, protecting motor bearings.

Power Delivery and Battery

The Lithium-Ion Battery Pack is a compact 20V lithium-ion pack with integrated BMS Board for cell balancing. Typical run time is 8–10 hours on a single charge in moderate drywall-hanging duty, making battery swap-out practical on large job sites where spare packs rotate through a charger.

Applications and Limitations

Drywall guns excel at rapid installation in hanging, repair, and renovation work. They are equally useful for fastening in general assembly, furniture making, and cabinet installation anywhere collated screws fit the application.

Limitations include the inability to drive non-collated fasteners (hex bolts, lag bolts) and reduced performance in hardwoods or metal where high torque is required. For those tasks, an Cordless Impact Driver or traditional drill-driver is more suitable.

Maintenance

The Feeder Drive Motor and Feed Pawl Gear accumulate gypsum dust over months of use. Periodic blowing out with compressed air keeps the feed mechanism reliable. The Drive Belt should be inspected annually for wear and tensioned if it slips. The nose clutch spring and Clutch Nose Plate pressure plate require no maintenance but should be replaced if the tool loses depth consistency.

Variants and Accessories

Some high-end models include electronic depth preset via a digital display, eliminating trial-and-error adjustment. Magazine capacity varies from 50 to 100 screws depending on form factor. Optional swivel handles and belt hooks allow one-handed overhead fastening in drywall ceiling work.
