Egg Incubator Product

Overview

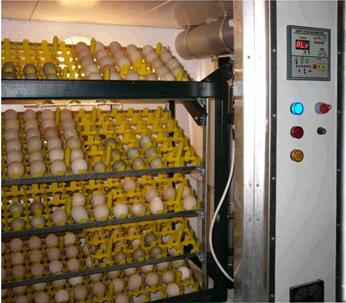

An egg incubator is a thermostat-controlled cabinet maintaining the temperature, humidity and turning motion that would normally be provided by a brooding hen. Historically made with petroleum lamps or hot-water baths, modern units use an electric heating element and a blower to distribute warm air evenly across racks of eggs. The device stands alone in a coop or hatchery and is opened only to turn eggs manually or to monitor progress. A mechanical timer or modern micro-controller orchestrates turning cycles, and a bimetallic thermostat (or digital sensor) holds temperature within 0.5 °C.

The incubator is used in three phases. During incubation (days 1–18), eggs are turned on the tray every 4 hours to prevent the embryo from settling against the shell and dying. Once the Automatic Turning mechanism rocks the Hatcher Trays automatically, the operator checks humidity daily and does not open the cabinet unless adding water. On lockdown (day 18), eggs are moved to a hatcher tray, turned manually one last time, and humidity is raised to 65–70 % for the chicks' final absorption of the air cell. Over the next 3 days, chicks pip (break through the shell) and hatch with no further intervention. Failed eggs are culled; successfully hatched chicks are dried and brooded separately.

The cabinet and insulation

The core of any incubator is thermal stability. The Incubator Cabinet wraps eggs in 50–75 mm of polyurethane Foam Insulation, topped by an Outer Shell and Inner Lining. The Door Frame is gasketed and hinges on the side, and its Observation Window of tempered glass lets the operator see progress without admitting cold air; the larger the window, the easier candling and visual counting, but the greater the thermal loss through the glass.

Inside, a Heat Baffle or Distribution Duct baffle prevents hot air from the Heating Element short-circuiting and creating stratification, where the air near the heater is 2–3 °C hotter than the egg level. A well-designed baffle forces all circulation to sweep underneath all Incubation Tray cells.

Temperature and humidity

The Heating System subsystem is usually a 60–100 W coiled nichrome wire shielded by a Heating Guard to prevent chicks or operators from touching a 200+ °C surface. A Bimetallic Thermostat bimetallic switch or a Microcontroller with a thermistor input cuts the heating relay when setpoint is reached; as the cabinet cools, heating resumes. The Blower Motor runs continuously or cycles with heating, pushing warm air underneath the Heat Baffle and around all egg racks, so no tray sees more than 0.5 °C variation.

Humidity is handled passively. An open Water Pan sits below the baffle; evaporating water raises cabin humidity, and the rate is tuned by pan size and blower speed. An Hygrometer Display (dial or electronic) displays relative humidity; the operator adds water daily to keep RH in the 40–50 % range during incubation. On lockdown (day 18), water pan area is increased and/or the pan is filled to raise RH to 65–70 %, which reduces the air cell size and eases the chick's final pip.

Turning mechanism

Egg Automatic Turning is essential: without motion, the embryo sinks against the shell, the blood vessel network fails to form correctly, and mortality spikes. The automatic mechanism uses a Turn Motor (typically 0.5–5 W, geared down to 0.5–2 RPM) coupled through a Turn Gearbox to a Cam Follower that translates the rotation into a rocking motion. The Tray Support Frame holds the Incubation Tray on a pivot so it tips side-to-side, typically ±40–45°, once every 4 hours. A simple mechanical timer or a Microcontroller orchestrates the cycle; most modern incubators allow the operator to set turn frequency (every 2–6 hours is common). On day 18, turning stops to prevent chicks from running themselves ragged and to allow them to position for pipping.

Airflow design

The Ventilation System subsystem must move enough air to prevent CO₂ buildup (eggs produce CO₂ as they develop, which impairs oxygen diffusion) while keeping noise low and temperature stable. A Blower Motor typically draws 5–15 W and moves 20–50 CFM, either continuously or cycling with the heater. The Blower Impeller is usually a tangential or centrifugal design, often brushless DC, mounted on a small motor shaft and enclosed in a shroud. The Distribution Duct directs warm, humid air underneath the Heat Baffle, forcing it up through all egg racks. Exit air leaves through grilles or a rear damper, which can be cracked open during lockdown to prevent CO₂ accumulation.

Hatching trays and finishing

Once embryos are developed, eggs move from the Incubation Tray to a Hatching Tray — an open-weave design that allows chicks to stand and dry and also lets eggshell debris fall through. The Tray Divider allows a single cabinet to hatch multiple batches or species. Successful chicks pip the air cell on day 19–20, then break free (usually by day 21); unsuccessful eggs remain closed. After all have either hatched or died, the hatching tray is removed and replaced for the next batch.

Control of the incubator has evolved from a simple mechanical thermostat to a digital micro-controller. Modern units with an Microcontroller and LCD Panel allow precise temperature ramps (some embryos tolerate and even benefit from slight heating variations during development), customizable turning schedules, and data logging. Professional hatcheries use incubators with 100–500 egg capacity and multiple separate chambers, each with independent control; the backyard model is a single cabinet holding 80–200 eggs and keeping the gardener or small farmer self-sufficient in chicks.
