Overview

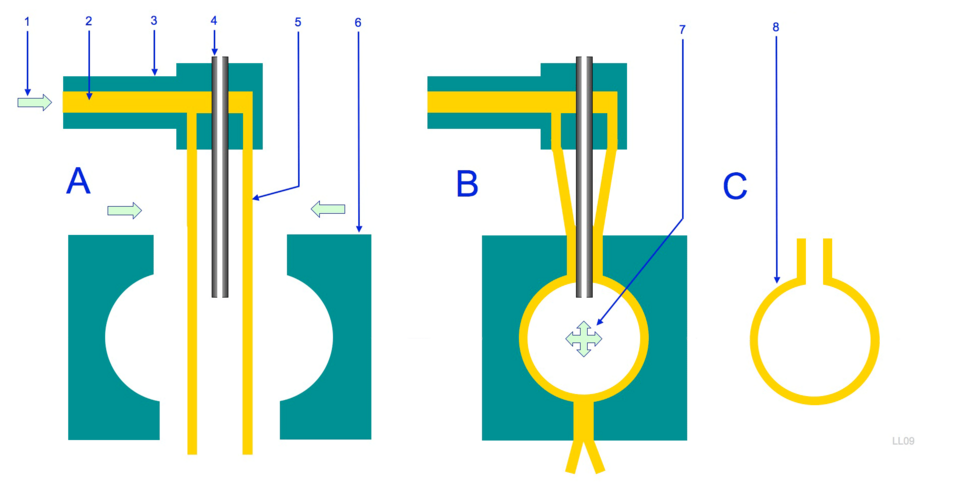

Extrusion blow molding (EBM) is a continuous manufacturing process that combines plastic extrusion and blow molding into a single production cycle. Molten plastic is continuously extruded as a hollow tube (the [[extrusion-blow-molder-die-head|parison]]), which is immediately captured in a two-piece mold cavity, pinched at top and bottom, then inflated with compressed air. The process is favored for high-volume production of thin-walled hollow parts—particularly plastic bottles, containers, and automotive tanks—because it offers excellent dimensional control, minimal material waste, and cycle times competitive with injection molding for large hollow geometries.

Process Flow

1. Extrusion

Plastic resin (typically [[extrusion-blow-molder-screw-barrel|HDPE pellets]]) is fed into the [[extrusion-blow-molder-extruder|extruder hopper]]. An Archimedean screw rotating at 20–100 RPM transports pellets forward, melting them through friction and electric heating (three barrel zones: 150 °C feed section, 200 °C transition, 230 °C metering). The molten plastic accumulates at the screw tip under backpressure, building a consistent melt pressure (40–80 bar) that forces material into the [[extrusion-blow-molder-die-head|die head]].

2. Parison Formation

The [[extrusion-blow-molder-die-head|die head]] forms the extruded plastic into a hollow parison—a thick-walled tube, open at the top. The mandrel (inner pin) defines the wall thickness by setting gap between inner and outer die surfaces. A typical parison might be 50 mm outer diameter, 2–4 mm wall thickness, and 150–300 mm long. The parison hangs vertically from the die, oscillating slightly as it cools and solidifies in air.

3. Mold Clamping

At the moment the parison reaches desired length (1–3 seconds of extrusion), the [[extrusion-blow-molder-mold-clamp|hydraulic mold clamp]] closes around the parison, pinching the bottom and sealing it. The top of the parison is simultaneously clamped. The cavity mold defines the final part geometry (e.g., bottle shoulders, neck, base contours).

4. Blow

Compressed air (7–10 bar, supplied by the [[extrusion-blow-molder-blow-air-system|air compressor system]]) is injected into the parison through the top, inflating it outward against the mold walls. The plastic, still warm from extrusion, expands uniformly, conforming to the mold cavity in 0.5–2 seconds. Wall thickness is now thinner (1–2 mm) and more uniform than the original parison because plastic is stretched and redistributed.

5. Cooling

The [[extrusion-blow-molder-cooling-circuit|cooling circuit]] circulates chilled water (10–20 °C) through galleries in the mold, solidifying the plastic part against the cavity walls. Cooling time is typically 5–15 seconds depending on part wall thickness and material thermal conductivity.

6. Ejection & Flash Removal

The mold opens, and the cooled part (still attached to the parison scrap at top and bottom) is ejected. Flash—excess plastic remaining at the mold parting line and around the parison pinch points—is manually or automatically trimmed away. The part is now ready for secondary operations (threading, assembly, labeling).

Advantages

• Thin-walled geometry: Walls can be <1 mm without structural compromise because the blow process redistributes plastic uniformly.
• Large hollow sections: EBM excels at parts with complex hollow interiors (e.g., automotive fuel tanks with integral stiffening ribs).
• Material efficiency: Minimal scrap (only flash and parison scrap), unlike injection molding which may generate 10–20% sprue/runner waste.
• Speed: Cycle times 10–60 seconds are competitive with injection molding for large containers.
• Stress-free parts: Blow-molded parts exhibit lower residual stress than injection-molded equivalents, improving impact resistance.

Key Design Considerations

Wall Thickness Distribution

EBM wall thickness depends on the thickness of the original parison and how much it stretches. A uniform, slow extrusion ensures consistent parison diameter; a thin parison results in very thin (but fragile) parts. Most designs target 1.5–3 mm walls in the body, thickening to 4–6 mm at stress points (base, handles, thread).

Mold Geometry

The cavity mold must allow air to penetrate all internal surfaces; pockets without air flow will remain un-inflated, appearing as sinks or voids. Mold design includes [[extrusion-blow-molder-die-body|vent lines]] or passive air traps for internal chambers. The mold parting line (where halves meet) must seal tightly, or high-pressure air escapes and the part inflates incompletely.

Parison Control

Parison weight (length and wall thickness) is critical. If too thin, the part will be weak; if too thick, it wastes material and increases cooling time. Most machines include programmable parison-gap adjustment (a spacer or screw that modulates [[extrusion-blow-molder-mandrel|mandrel position]]) to tune parison thickness without mold changes.

Blow Pressure & Timing

Blow pressure must be sufficient to inflate the parison against mold wall friction, but not so high that it over-stretches the plastic or causes mold leakage. Typical pressures are 6–12 bar; high-strength parts (automotive fuel tanks) may use 15–20 bar. Blow timing is critical: too early (plastic still too hot), and the part inflates unevenly; too late, and the plastic has cooled and solidified, preventing full expansion.

Polymer Behavior

HDPE (High-Density Polyethylene)

Standard choice for EBM: excellent processability, impact resistance, and cost. Melt temperature 230 °C. Produces clear, strong bottles and containers. High crystallinity (70–80%) means rapid solidification in the mold.

LDPE (Low-Density Polyethylene)

Lower stiffness than HDPE, but better low-temperature impact. Melt temperature similar to HDPE, ~220 °C. Less commonly used for EBM because HDPE properties are superior; LDPE is preferred for flexible film extrusion.

PP (Polypropylene)

Higher melting point (~230–250 °C) than PE, offering better chemical resistance and higher temperature service. PP bottles are opaque but lighter and stiffer than HDPE equivalents. Requires careful cooling to avoid crystalline defects (warping, stress whitening).

PET (Polyethylene Terephthalate)

Rarely used for EBM because PET is difficult to extrude (high melt viscosity, narrow processing window). Instead, PET is molded as preforms by [[pet-preform-injection|injection molding]], then stretch-blow molded into final bottles.

Operational Challenges

Parison Sag

In large machines with tall dies, gravity causes the parison to droop and thin in the middle. This leads to thin-spot defects. Mitigation: increase parison extrusion speed, or add air jets that cool the parison and increase its stiffness.

Mold Sticking

The inflated plastic can stick to the mold surface, preventing ejection. Causes: excessive cooling time (plastic shrinks onto mold), or sticky residue from regrind material. Mitigation: reduce cooling time, apply mold release agent, or switch to virgin resin.

Flash Formation

Excess flash at the parting line increases trim labor and costs. Causes: loose mold fit, or insufficient sealing. Mitigation: regular mold maintenance (grinding parting surfaces), or upgrade to precision guide pins.

Inconsistent Wall Thickness

Variations in parison diameter translate to variable final wall thickness. Causes: fluctuating barrel temperature, or varying screw back-pressure. Mitigation: tight temperature control (±2 °C), and pressure-feedback loops.

Machine Types

Single-Cavity Machines

One mold cavity; simplest design, used for prototyping or small-volume custom products. Cycle time ~30 seconds per part.

Multi-Cavity Machines

4–16 cavities molded simultaneously, increasing output by 4–16×. Requires larger extruder and more robust mold structure. Typical for high-volume production (50,000+ parts/year).

Shuttle Machines

Mold moves (shuttles) front-to-back: one cavity is being inflated while the other is cooling, minimizing idle time. Historically popular but being phased out in favor of stationary molds with better cooling.

Maintenance & Troubleshooting

Daily

• Check extruder barrel and die heater set-points; verify no thermal runaway.
• Inspect cooling water flow and temperature; ensure no blockage.
• Check air compressor pressure gauge; should be stable at 7–10 bar.
• Run a few cycles and inspect for dimensional drift or surface defects.

Weekly

• Clean [[extrusion-blow-molder-breaker-plate|breaker plate]] screen if pressure rises above setpoint.
• Inspect mold for heat cracks or sticking residue.
• Verify mold cooling water circulation; no leaks.

Monthly

• Pressure-test all pneumatic and hydraulic lines for leaks.
• Inspect [[extrusion-blow-molder-die-body|die mandrel]] for wear; if worn, replace or regrind.
• Clean and oil all moving joints.

Quarterly

• Full mold inspection: grinding of parting surfaces if flash has worsened.
• Extruder screw inspection: look for buildup of degraded polymer in flight tips.
• Calibrate temperature sensors.

Economics

A typical small EBM machine (single cavity, 50 kg/h capacity) costs $80k–$150k. Multi-cavity machines ($300k–$1M+) are justified for high-volume production (>500,000 parts/year). Mold tooling adds $10k–$50k depending on cavity count and complexity.

Production cost breakdown for a 1-liter HDPE bottle:

• Material (HDPE): ~$0.15/bottle
• Energy (extrusion + cooling): ~$0.05/bottle
• Labor + overhead: ~$0.10/bottle
• Total: ~$0.30/bottle (retail price $0.50–$1.50 depending on brand)

High-speed, multi-cavity production achieves cycle times <10 seconds, enabling 2-liter bottle production at <$0.50/bottle.
