Overview

A fetal Doppler is a simple handheld ultrasound device that detects the heartbeat of a developing fetus by sending a beam of high-frequency sound waves into the mother's abdomen and listening for the characteristic Doppler shift caused by blood flowing through the fetal heart. When sound bounces off moving red blood cells, the frequency shifts upward if the cells are moving toward the probe and downward if moving away—the Doppler effect, the same phenomenon that makes an ambulance siren sound higher-pitched as it approaches and lower as it recedes. The Doppler-shifted echo is converted to an audio tone (a "whooshing" sound) that clinicians and parents recognize as a healthy fetal heartbeat, and simultaneously counted to display the heart rate in beats per minute. Fetal Dopplers are ubiquitous in prenatal care: they are used in the clinic to confirm fetal viability as early as 8–10 weeks gestation, to reassure expectant parents during routine visits, and to screen for fetal tachycardia or bradycardia that might warrant further investigation via full ultrasound imaging.

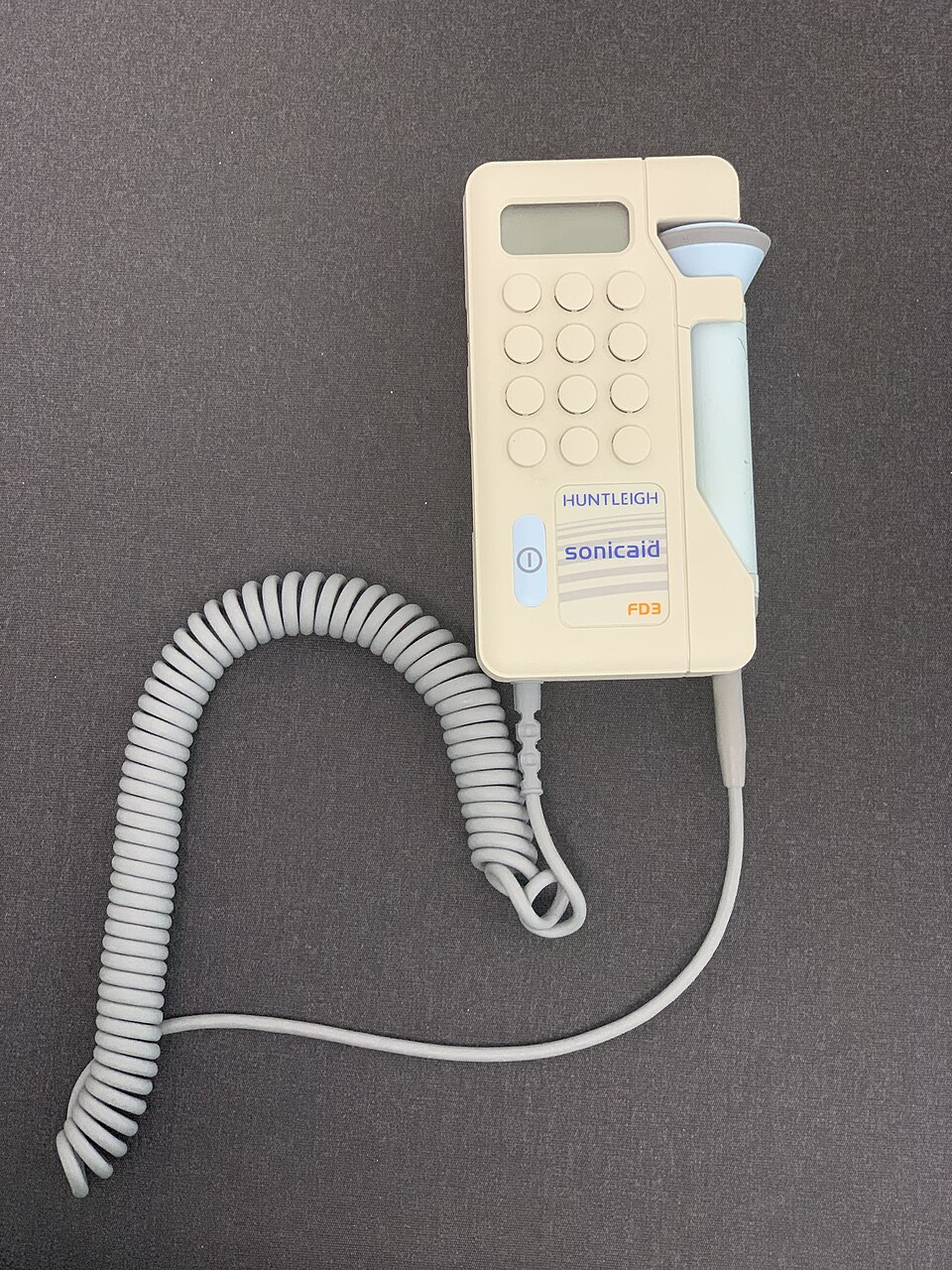

The Handheld Probe Head is a small handheld wand that the clinician applies to the skin over the lower abdomen or lower back, angled toward the uterus. A small amount of Gel Application Area acoustic gel is applied first to couple the ultrasound into the body (ultrasound does not travel well through air). The Piezoelectric Ultrasonic Transducer inside the probe emits a continuous or pulsed 2–4 MHz ultrasound beam. Echoes returning from the fetal heart are amplified and processed to extract the Doppler shift. The Heart Rate Display shows the heart rate on an LCD, and a Speaker produces the characteristic "swish-swish" audio that mothers and fathers find reassuring.

How it works

The Piezoelectric Ultrasonic Transducer is a piezoelectric crystal that converts electrical oscillations into mechanical vibrations (sound waves) and vice versa. The Transmit Pulser Circuit use a crystal oscillator running at 2–4 MHz to generate an electrical signal at that frequency. This signal drives the PZT Piezo Element in the transducer, causing it to vibrate at 2–4 MHz and emit ultrasound into the mother's body.

That ultrasound travels through amniotic fluid and fetal tissue until it hits the fetal heart. Some of the ultrasound bounces back as an echo. The heart is a moving structure (contracting and relaxing, and blood is flowing through its chambers and vessels). Because of this motion, the frequency of the returning echo is slightly different from the transmitted frequency—higher for structures moving toward the probe, lower for structures moving away. This frequency shift is the Doppler effect.

The Receiver Front End picks up these tiny echoes (typically microvolts in amplitude) and amplifies them. The Frequency Downconverter then shifts the Doppler-modulated signal down to the audio range (0–20 kHz), where human ears can hear it. This is called heterodyne conversion: the received ultrasonic signal (around 2–4 MHz) is mixed with a reference signal at nearly the same frequency, producing a beat note at the difference frequency (typically 0.5–2 kHz, depending on the blood flow velocity). This beat note is what we hear as the characteristic "swish-swish" or "whomp-whomp" sound—a whooshing tone that rises and falls with each heartbeat.

Simultaneously, the Heart Rate Detection Circuit counts the Doppler frequency shifts or counts the envelope of the audio signal, extracting a pulse rate. A microcontroller in the rate detector applies algorithms to filter out maternal heart tones and vessel noise, homing in on the fetal heart rate specifically. The result is displayed on the Heart Rate Display LCD as a number (e.g., "152 bpm"). Many devices also show a trending graph of the instantaneous heart rate over the past 30 seconds or so.

The Audio Output Amplifier drives both an internal Speaker (usually 1–2 watts, quite loud for a small device) and a Connector for headphones. The loud speaker serves not just as feedback to the clinician but also as reassurance to the mother—hearing the distinctive fetal heartbeat is often the first tangible confirmation of pregnancy and viability, especially for anxious parents.

Power comes from a rechargeable Rechargeable Battery (usually a single 18650 lithium-ion cell), which provides 4–8 hours of continuous operation between charges. The Transmit Pulser Circuit are duty-cycled: they may emit ultrasound only briefly and intermittently rather than continuously, further extending battery life.

Key advantages of fetal Doppler over full ultrasound imaging: it is small, portable, cheap, requires minimal training, and gives instant feedback. Disadvantages: it shows only heart rate and audio Doppler signal, with no ability to see anatomy, measure size, or assess fetal positioning. A normal fetal heart rate (typically 120–160 bpm) is reassuring, but absence of a signal or an abnormal rate (persistent tachycardia >160 or bradycardia <110) warrants formal ultrasound imaging. Some early Doppler devices could not detect fetal signals until 12–14 weeks gestation; modern ones with larger transducers and more powerful electronics can sometimes detect a heartbeat as early as 8–9 weeks, though reliability improves as gestation advances.

Acoustic gel is essential: without it, ultrasound is almost entirely reflected by the air-skin interface (impedance mismatch) and very little penetrates into the body. The gel's acoustic impedance is matched to skin, allowing the ultrasound to couple efficiently into the tissues.
