Fuel Dispenser Product

Overview

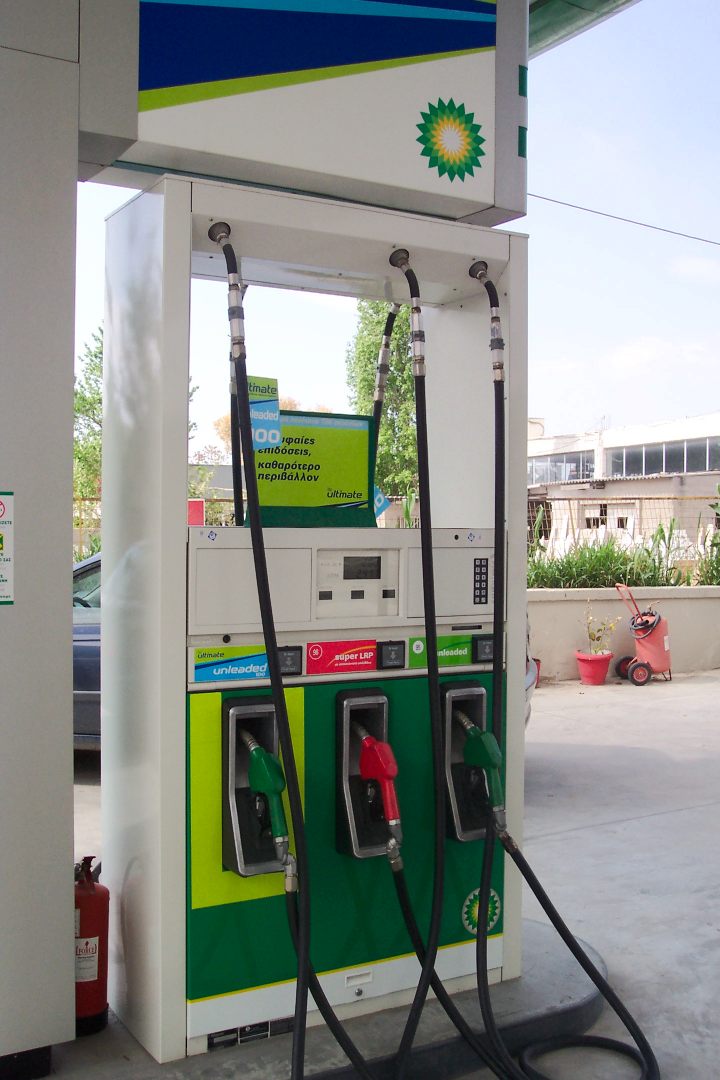

Fuel dispensers are the primary interface at retail filling stations, serving to accurately meter and deliver gasoline, diesel, or alternative fuels to customer vehicles. Modern dispensers combine precision metering with integrated payment processing and data telemetry. Each unit comprises a positive-displacement pump driven by a brushless electric motor, a multi-solenoid valve manifold for flow control and backflow prevention, and a front-mounted display and card reader module. The system operates at 24 VDC, fed from underground tank source pressure, with pressure relief and check valves protecting the fuel circuit.

The dispenser design balances accuracy (to 0.001 gallon), safety (solenoid shutoff on trigger release), and environmental compliance (vapor recovery hookup, spill containment). A typical pump delivers 2–3 gallons per minute at 40–60 psi metered outlet pressure. Nozzles terminate in quick-disconnect breakaway couplers rated for 2500 psi, preventing hose rupture and fuel spill if a vehicle drives away during fueling.

How it Works

When a customer initiates a fuel transaction, the dispenser's payment system (card reader and PIN pad) communicates with the station's fuel management system over dial-up modem or cellular. Upon authorization, the main controller energizes the Valve Block Assembly solenoid shutoff, and the Pump Unit motor spins up to deliver fuel.

The Pump Unit draws fuel from the underground Underground Storage Tank through the Fuel Filter Assembly, which removes particulates. Fuel passes through the Valve Block Assembly, where a spring-loaded Orifice Metering Plate restricts flow to the metered rate. Each Nozzle with Breakaway integrates a second solenoid shutoff and breakaway coupler; when the customer lifts the nozzle, an automatic nozzle shutoff (springed poppet triggered by back-pressure) closes fuel flow as the tank fills and back-pressure rises.

Volume is measured by a positive-displacement pump tally; the controller increments a gallon counter and updates the Display Head in real time. Price is calculated as volume × price-per-gallon and displayed to 0.001 dollar precision. When the nozzle shutoff trips (back-pressure rise) or the customer manually releases the trigger, fuel flow ceases, the transaction terminates, and a receipt is optionally printed or emailed.

Metering and Valve Architecture

Accuracy depends on the Pump Unit displacement and consistent pressure drop across the Orifice Metering Plate. A by-pass solenoid in the Valve Block Assembly returns excess pump flow to tank if outlet pressure rises above 60 psi, maintaining consistent metering pressure. The Check Valve ensures no backflow into the pump when the pump motor stops.

Display and Payment Integration

The Display Head updates every 0.1 seconds, showing volume in gallons and total price. Behind the head, the Payment Interface Module integrates a Card Reader Module (swipe or chip) and PIN Pad with a PCI DSS-compliant microcontroller. A Modem Module connects to the station controller or back-office FMS server, transmitting transaction data and receiving fuel authorization responses.

Environmental and Safety

The Cabinet Enclosure houses pump, valves, motor, and upper electronics in a sealed aluminum structure with gasket seals at door and panel joints. A stainless steel Internal Mounting Bracket anchors components against vibration. Nozzle Breakaway Quick-Disconnect fittings are quick-disconnect, dry-break type; if a vehicle accelerates while nozzled, the coupler separates at 75 lb pull-away force, allowing fuel to drain into a catch cup within the dispenser rather than spilling on the ground.

Modern dispensers also support vapor recovery (EVR) lines returning fuel vapors to tank, reducing emissions. Overfill prevention is managed by the Nozzle with Breakaway automatic shutoff or by tank-side Overfill Prevention Valve.

Fueling Various Fuel Types

The dispenser's Fuel Filter Assembly removes water and particulates from all fuel grades (regular, mid-grade, premium, diesel, E85, biodiesel). The Pump Unit and Valve Block Assembly are calibrated for the fuel type; diesel dispensers use lower RPM pumps and different orifice sizes than gasoline. The Display Head shows fuel grade and dispensed volume; on multi-product dispensers, a selector switch routes flow to the appropriate hose.

Maintenance and Reliability

Long-term reliability depends on fuel cleanliness; the Fuel Filter Assembly cartridge is replaced every 6–12 months depending on fuel source quality. The Pump Unit brushless motor is rated 2000+ hours. Nozzle Inline Solenoid Shutoff and main Valve Block Assembly solenoids are sealed against fuel vapor; coils are potted and gasket seals are FKM fluorocarbon for fuel resistance. Annual pressure tests and electrical inspections are mandated in most jurisdictions to verify pump performance and payment system integrity.
