Overview

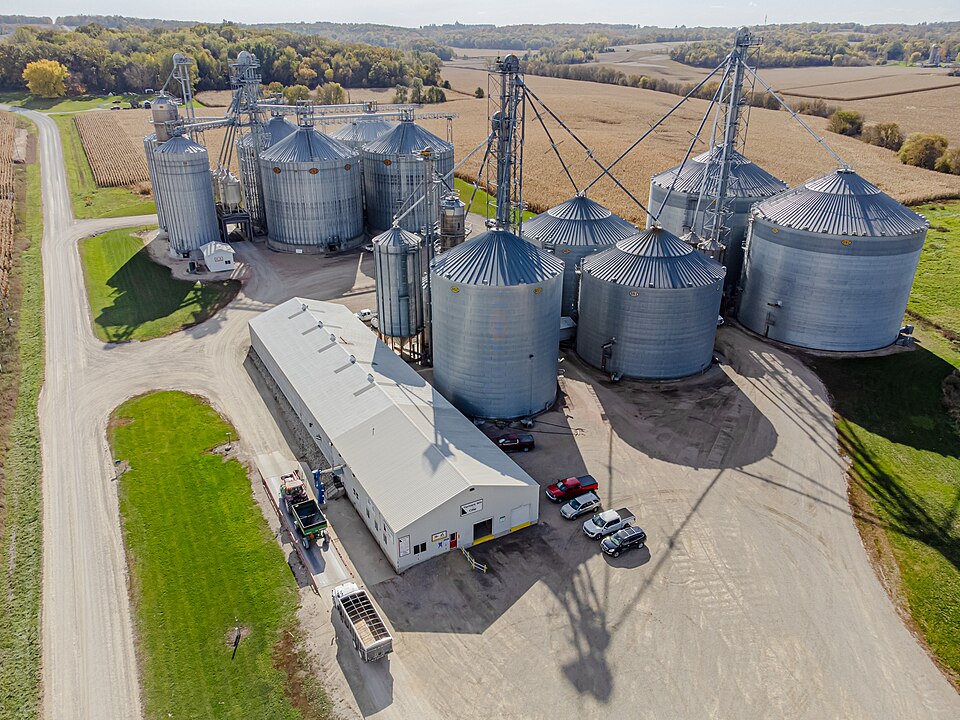

A continuous grain dryer removes water from freshly harvested grain so it can be stored without spoiling. Maize is commonly combined at 18–28% moisture; safe long-term storage requires 14–15%. At a typical 5-point removal a mid-size tower dries 20–60 tonnes per hour, evaporating one to three tonnes of water per hour, which is why the dryer is usually the largest energy consumer on an arable farm or grain terminal.

The machine is a vertical tower. Wet grain is lifted by the Bucket Elevator into the Wet Holding Bin at the top and descends by gravity through two louvred Grain Columns, each holding a bed about 300 mm thick. Between the columns sits the Hot-Air Plenum, fed with hot air from the burner; drying air passes crossflow (or, in mixed-flow designs, alternately co- and counter-current through inverted-V ducts) through the descending grain and exhausts to atmosphere. The bottom section is unheated: the Cooling Fan pulls ambient air through the grain to bring it within 5–10 °C of ambient before storage, recovering some heat into the drying zone in the process.

How it works

Heat comes from the Line Burner Head, a direct-fired line burner spanning the air duct and firing LPG or natural gas at up to 4 MW. Direct firing puts combustion products into the drying air, which is normal practice for feed grain; the Gas Valve Train provides EN 746-2 double safety shut-off and leak testing, the Flame Sensor closes the valves within a second of flame loss, and the Modulating Gas Valve trims gas flow to hold plenum temperature within ±2 °C. Air temperature is set by crop and end use: 40–45 °C for seed grain (germination is killed above about 45 °C kernel temperature), 60–80 °C for milling wheat, and up to 120–130 °C for feed maize.

Two Main Drying Fans, axial units of around 1.4 m diameter, each move 60,000–90,000 m³/h through the bed. Airflow, not heat, usually limits throughput: the resistance of a 300 mm grain bed sets fan static pressure at 300–600 Pa, and fan power is the largest electrical load at 18.5–30 kW per Fan Motor.

Residence time is the control variable. The grain column descends only as fast as the Metering Rollers at the base let it: full-width fluted rollers, driven through a Variable Frequency Drive and the Discharge Geared Motor over a 1:12 speed range. The Discharge Moisture Meter continuously measures discharge moisture and the Dryer PLC runs a PID loop on roller speed: grain coming out wet slows the discharge, extending residence time. The Inlet Moisture Meter feeds inlet moisture forward so the loop anticipates wet loads rather than reacting half a tower late — important because transport delay through the column is one to two hours.

The fill side runs on simple level logic. Level Probe probes in the wet bin start and stop the elevator so the columns never run partially empty, which would short-circuit the airflow; the Top Distributor spreads incoming grain evenly, and an Overflow Spout returns excess to the pit if the high-level probe fails. Dried, cooled grain leaves through the Discharge Hopper and Take-Away Auger to the outloading elevator.

Energy and fire safety

Evaporating water costs about 2.26 MJ/kg thermodynamically; real dryers use 4.5–5.5 MJ/kg after stack and casing losses. Heat-recovery designs duct warm, relatively dry exhaust from the cooling and lower drying sections back to the fan inlets, cutting fuel 15–25%. Specific consumption is tracked from the Air Thermocouple pair (plenum and exhaust) together with throughput.

Dryer fires are a recognized hazard: chaff and broken kernels lodge against column screens, dry out and ignite. Defences are layered — Grain Thermocouples distributed through the bed watch kernel temperature, dedicated Fire Detection Sensors trip the burner and fans on overtemperature, and operating procedure requires emptying and screen cleaning between crops. Dust zones around the elevator boot and discharge are ATEX classified.

Operation is supervised from the HMI Touch Panel on the control cabinet, which displays both moistures, all temperatures, throughput and alarm history; during harvest the machine typically runs 24 hours a day for several weeks, so unattended-operation interlocks and remote alarming are standard.
