Hearing Aid

Overview

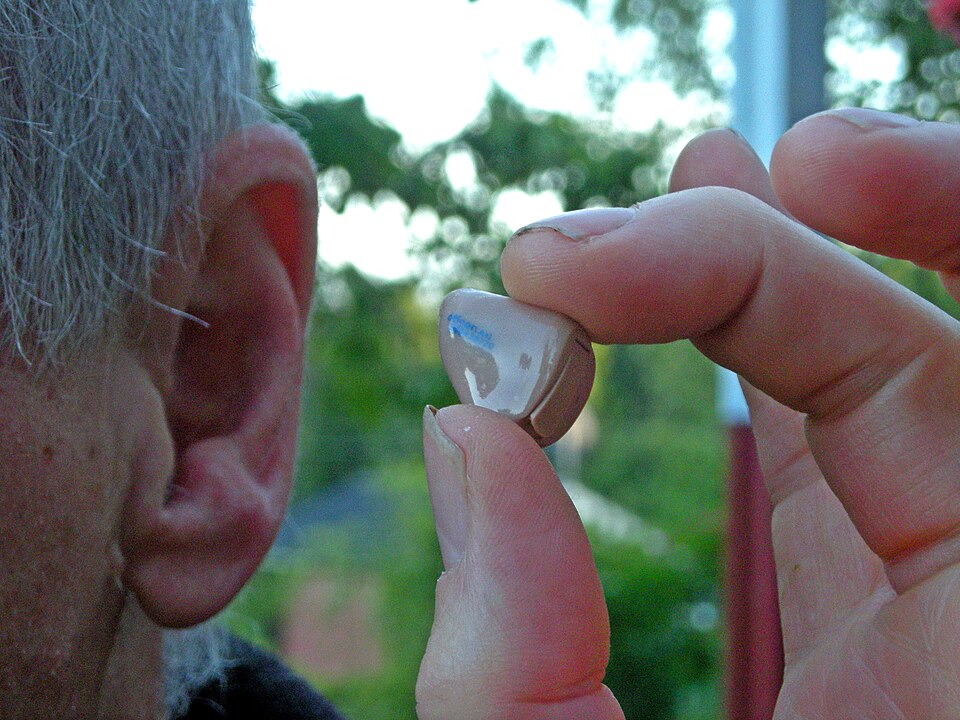

A hearing aid is a body-worn amplifier that compensates for a specific pattern of hearing loss. It does not simply make sound louder: it measures the incoming sound, breaks it into frequency bands, and applies more gain where the wearer hears poorly and less where their hearing is near normal, all while keeping loud sounds comfortable. This receiver-in-canal design splits the device between a behind-the-ear module that holds the electronics and a tiny loudspeaker that sits down in the ear canal.

Sound first reaches the Microphone Assembly, where two MEMS microphones spaced front and rear let the device sense which direction a sound came from and steer a listening beam toward speech. The captured signal passes to the DSP / Amplifier Board, whose Hearing-Aid DSP SoC runs the entire audiological algorithm. Everything is packaged inside the Shell / Housing, a sealed, coated housing shaped to curve behind the ear, with the Push Button on the faceplate for changing volume or program.

How it works

The processor divides the audio into many channels and applies wide-dynamic-range compression independently in each, so a quiet consonant is lifted clearly above the noise floor while a slammed door is held below the wearer's discomfort level. The same stage runs adaptive noise reduction and feedback cancellation, the latter essential because the Receiver Module (RIC) sits only millimeters from the microphones and would otherwise whistle. The amplified signal drives the in-ear receiver, which couples to the canal through a soft vented dome, and a replaceable Wax Guard keeps earwax out of the receiver outlet.

Beyond plain amplification, the Wireless Radio (BLE / NFMI) streams phone calls and media over Bluetooth LE and synchronizes settings between the left and right aids by near-field magnetic induction, while the Telecoil picks up audio directly from hearing-loop systems in theaters and counters. Power comes from a sealed Rechargeable Battery that runs through a full day; at night both aids drop into the Charging Case, a portable dock that recharges and dries them and carries its own reservoir cell to top them up away from a wall outlet.
