Injection Blow Molding Machine Product
Overview

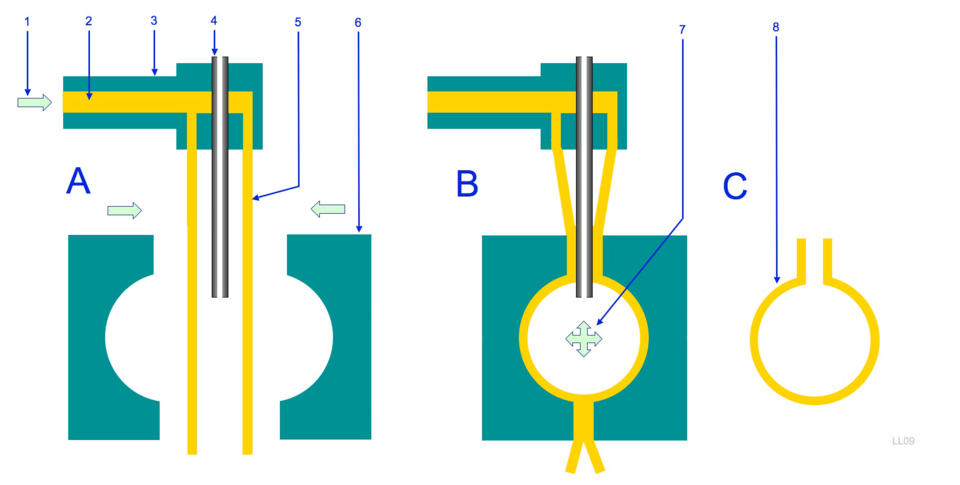

Injection blow molding (IBM) combines injection molding and blow molding into a seamless two-stage process on a single machine platform. Unlike extrusion blow molding which extrudes a continuous parison, IBM injects a preform directly into a heated cavity, then immediately rotates the preform to a blow station where it is inflated into the final container shape.
This process delivers superior dimensional control, thinner walls, and tighter tolerance tolerances compared to extrusion blow molding, making it the preferred method for cosmetic bottles, pharmaceutical vials, and small, high-precision containers. IBM's main drawback is lower throughput on large, thick-walled parts due to longer cooling times.
Process Architecture
Stage 1: Injection
The [[injection-blow-molder-injection-unit|injection unit]] works like a standard plastic injection molding machine: plastic resin is fed into a heated barrel, melted by a rotating screw, then pressurized and injected into a preform mold cavity. The [[injection-blow-molder-core-rod-assembly|core rods]] (typically two hardened steel pins) form the preform's inner bore and bottom. Injection pressure is 800–1200 bar, typical for thermoplastic molding.
Cooling time at the injection stage is brief (2–3 seconds) because the preform is thin-walled and will be reheated in the blow station. Once cooled sufficiently for handling (bottom surface solidified), the [[injection-blow-molder-indexing-table|carousel rotates]], advancing the core rod with preform to the blow station.
Stage 2: Blow
At the blow station, a second heated mold cavity closes around the preform. The cavity mold is hotter (100–130 °C) than the injection mold, re-heating the preform walls to near glass-transition temperature. High-pressure air (30–50 bar) is injected through a center pin, inflating the preform radially against the cavity walls. Blow time is 1–3 seconds.
The preform expands uniformly because the thin walls are supple and the blow station is designed to distribute pressure evenly. Wall thickness becomes uniform and thinner (1–1.5 mm typical) across the final container.
Stage 3: Cooling & Ejection
After blow, the mold remains closed while cooling water (or forced air) solidifies the blown container. Cooling time is 3–5 seconds. The mold then opens, and a mechanical stripper or pneumatic ejector removes the finished bottle.
The carousel rotates to the next position: a cooling/setup station where operators load fresh resin powder (if needed for the blow station recycling loop) and the cycle repeats.
Advantages Over Extrusion Blow Molding
- Tighter tolerances: Injection preforms are dimensionally precise (±0.2 mm); final bottle variation is <1%.
- Thinner walls: Inject-blow process achieves 0.5–1.5 mm walls; extrusion blow typically 1–3 mm.
- Complex geometries: Preform injection allows complex internal features (threads, internal reinforcement ribs, valve seats) to be molded in one shot.
- Minimal flash: Parting line is simpler; much less trim waste.
- Material efficiency: Near-zero scrap because the preform is designed to fit the blow cavity precisely.
Disadvantages
- Slower for large parts: Reheating the preform in the blow station takes time; large containers have longer cycle times than extrusion blow.
- Higher capital cost: IBM machines are more complex (dual molds, indexing table, heated blow cavity); $300k–$1M+.
- Limited to smaller containers: IBM is economical for <500 mL bottles; larger drums are better served by extrusion blow.
Key Materials
PET (Polyethylene Terephthalate)
Most common IBM material for beverage bottles. Injection temperature ~280 °C, preform mold temperature 70–80 °C. The reheated preform at the blow station (100–120 °C) is below PET's glass transition but above its crystalline melting point, allowing controlled molecular orientation during blow.
Oriented PET bottles exhibit improved gas-barrier properties (O₂ transmission rates <5 cm³/m²/day) and stiffness, making them ideal for carbonated beverages. Blow orientation is critical: if preform is too cool, plastic is stiff and doesn't expand fully; if too hot, it over-stretches and becomes thin and weak.
HDPE
Used for milk jugs, detergent bottles, and other large (500 mL+) thin-walled containers. Injection temperature ~220 °C, low blow-mold temperature (80–90 °C) because HDPE has low heat capacity and cools rapidly. IBM is less common for HDPE vs. extrusion blow because reheating adds little value for simple geometries.
PP (Polypropylene)
Injection temperature 220–240 °C. Blow-mold temperature must be precise (100–120 °C) to avoid crystalline defects. PP's low density (~0.90 g/cm³) makes it attractive for light-weight containers, but tight temperature control is required.
Machine Types & Configurations
Rotary Carousel (4–16 Stations)
Multi-station carousel rotating around a vertical axis. Each station is a separate injection cavity, blow cavity, or cooling position. While one station is injecting, another is blowing, and a third is cooling. This overlapping allows high throughput (100–400 bottles/hour) with modest individual cycle times.
Typical layout: 12-station carousel with 3–4 injection cavities, 4–5 blow cavities, and 4–5 cooling/setup positions.
Intermittent Carousel
Carousel indexes (rotates) once per cycle, then stops while all stations complete their phase simultaneously. Simpler control than continuous rotation but lower throughput.
Linear (Shuttle) System
Two opposing injection/blow head pairs on a linear shuttle, moving back and forth. Less common today; rotary carousels dominate because they achieve higher throughput.
Thermal Control Strategy
The blow station's thermal balance is critical. If the preform is too cold entering blow, it will resist expansion and the final bottle will be under-inflated (thin, weak walls). If too hot, the preform stretches excessively and becomes thin and brittle.
IBM machines often employ a ''staged heating'' approach:
- Injection mold: 70–80 °C (cools preform rapidly after injection).
- Transfer zone: Preform cools slightly in air during carousel rotation.
- Blow mold: 100–130 °C (reheats preform to ideal blow temperature).
Temperature sensors in the blow-mold cavity provide feedback; if the preform is below target, the cavity heater increases power; if above, cooling water increases flow.
Practical Challenges
Preform Sticking in Injection Cavity
If the preform cools too much or adhesive residue builds up, it may stick and jam the core rods. Mitigation: Apply release agent spray on core rods; ensure injection cavity cooling is sufficient; use virgin resin (regrind can be sticky).
Uneven Blow Inflation
If the blow-cavity entry port is off-center or the air flow is uneven, the preform will inflate asymmetrically, resulting in thick and thin spots. Mitigation: Inspect and clean air manifold and cavity port; balance air flow with needle-valve throttling.
Gate Vestige (Preform Stalk)
The injection gate (where plastic enters the cavity) leaves a small stub on the bottom of the preform. During blow, this can become a weak point or deform unpredictably. Good mold design places the gate on a flat surface (bottom center) so the stub is uniform and can be trimmed.
Crystallization in PET
If PET preforms are cooled too quickly after injection, they remain amorphous and lack the clarity and stiffness of crystalline PET. Slow cooling (or annealing) after injection can help, but adds cycle time. Trade-off: fast, clear bottles vs. slower, stiffer ones.
Production Workflow
Shift Setup (30 minutes)
- Load cavity mold for injection stage.
- Load cavity mold for blow stage.
- Set heater set-points (injection cavity 75 °C, blow cavity 110 °C).
- Load hopper with virgin resin; run dryer if using PET.
- Run 10–20 test cycles; inspect for proper filling, blow, and ejection.
Running Production (8–10 hours)
- Monitor cycle time; target <10 seconds for small bottles.
- Every 1–2 hours, inspect preforms and finish bottles for dimensional drift or surface defects.
- Check water flow and heater temperature setpoints; adjust if necessary.
- In-line (real-time) quality control: measure wall thickness at random intervals using ultrasonic gauge.
Shutdown (20 minutes)
- Purge resin from barrel (run purge compound or recycled plastic until clean).
- Shut off heaters; allow to cool.
- Drain cooling water if not circulated continuously.
- Record production count and any defects or machine issues.
Economics
A typical 4-station IBM carousel costs $200k–$500k depending on cavity count and complexity. Mold tooling adds $30k–$100k.
Production cost for a 250 mL PET cosmetic bottle:
- Material (PET): ~$0.08/bottle
- Energy (heating, cooling, compression): ~$0.04/bottle
- Labor + depreciation: ~$0.15/bottle
- Total: ~$0.27/bottle (retail $1.50–$3.00)
For very high volumes (>10 million bottles/year), dedicated 16-cavity machines with fully automated unloading can reduce cost to $0.15–$0.20/bottle.
Quality Standards
Most beverage containers meet:
- ISO 9001: General quality management.
- FDA CFR 177.1590 (PET): Food-contact plastics, migration limits.
- ISO 1402: Plastic bottles and jars, general requirements.
- ISO 6106: Measurement of density of water-like liquids (to verify bottle wall uniformity).
Pharmaceutical vials must meet stricter standards (USP <660>, ISO 1402) for chemical compatibility and dimensional consistency.
