Insulating Glass Line Product
Overview

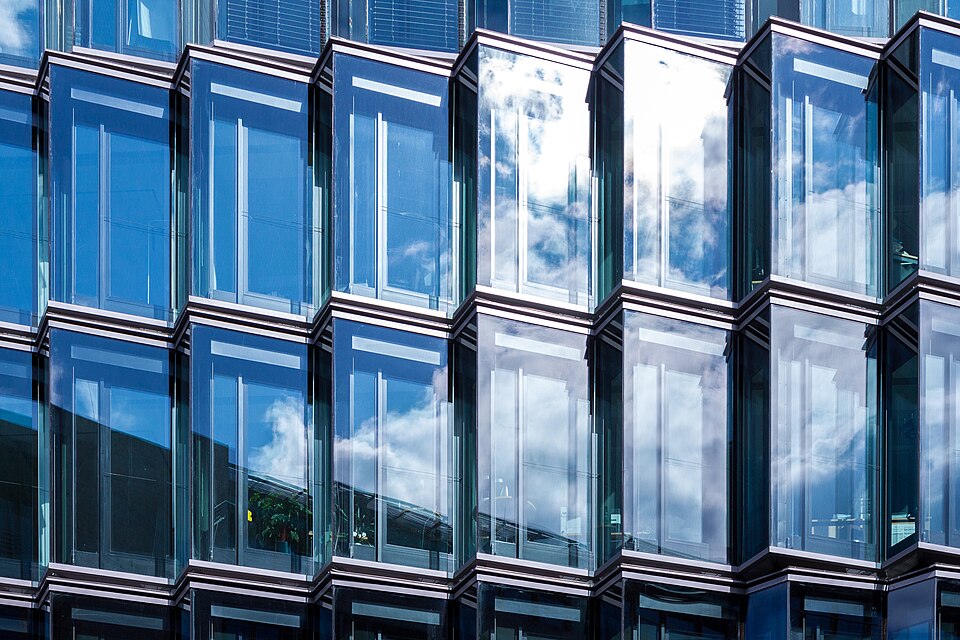

An insulating glass line is a fully integrated manufacturing system that assembles insulated glass units (IGUs), also called double- or triple-glazed windows. IGUs consist of two or more glass panes separated by a hermetically sealed cavity filled with inert gas and a specialized spacer frame. This assembly dramatically reduces heat transfer through windows compared to single-pane glass, making IGUs essential in modern energy-efficient buildings, automotive glazing, and refrigerated display cases.
The manufacturing process demands precision at every stage: glass surfaces must be impeccably clean to ensure sealant adhesion, spacer frames must be perfectly centered to maintain uniform cavity width, the cavity must be evacuated and filled with argon or krypton to specific pressure, and sealants must be applied in consistent beads around the entire perimeter. Industrial IGU lines automate these steps, achieving production rates of 2–8 complete units per minute while maintaining quality specifications.
How It Works
The process begins with raw glass panes entering the Washing Machine. The panes are transported via the Conveyor System through three cleaning stages: the first Wash Stage uses rotating Brush Roll cylinders with nylon bristles and hot detergent spray to remove dust, oils, and fingerprints. A second wash spray and brush stage repeats this process. The final Rinse Stage applies ultra-pure deionized water, and the Air Knife high-velocity air jet removes surface moisture before the glass exits.
The cleaned first pane advances to the Spacer Frame Applicator station, where a pre-assembled spacer frame is fed from the Spacer Hopper. The Frame Positioning Head clamps the frame onto the glass pane, centering it within the four edges. The frame typically consists of aluminum or stainless steel perimeter rails with corner keys and a desiccant cartridge inside to absorb residual moisture. The Corner Lock Press then heats or presses the corner keys to fuse them to the frame, creating a rigid assembly.
The pane with its attached spacer frame then enters the Gas Filling Press, a sealed chamber. A second glass pane is positioned above the first, and the pneumatic platen lowers it onto the spacer frame. Before the platen fully closes, the Vacuum System activates, drawing the cavity down to 80–90 kPa (partial vacuum) to remove atmospheric air. This step is critical: any remaining air would compress as inert gas is introduced, resulting in higher-than-target cavity pressure.
Once evacuation is complete, the Gas Regulator opens the flow of argon or krypton from a supply bottle. The Gas Injector meters the inert gas into the cavity through needle valves, while the Pressure Sensor continuously monitors the fill pressure. Modern systems use proportional solenoid control to achieve fill pressures within ±0.1 bar of the target (typically 1.0–1.5 bar, slightly above atmospheric). The Control System PLC logs fill pressure and cavity volumes, providing full traceability of every IGU.
With the cavity sealed, the unit exits the press and enters the Sealing Robot station. The 6-axis robotic arm, driven by the Arm Controller, traces the entire perimeter of the IGU, dispensing dual-seal beads. The first bead (primary sealant) is typically polyurethane or silicone, applied to the inner joint between the glass edge and spacer frame. A second bead (secondary sealant) follows, sealing the outer edge and bonding the two glass panes to the spacer frame. The Sealant Feeder pump pushes sealant from cartridges, and the Sealing Nozzle micro-dispenser applies beads at 4–6 mm width. The Depth Sensor laser monitors the joint depth, enabling the robot to adjust nozzle height dynamically.
After sealing, the IGU is removed from the conveyor and typically placed in a rack for 24 hours of sealant cure before shipment.
Spacer Frame Technology
Traditional aluminum spacers conduct heat, creating a thermal bridge that slightly reduces IGU insulation value. Modern Spacer Frame Applicator stations can handle thermally broken spacers (TPS) made of stainless steel or composite materials with built-in insulating breaks, significantly improving thermal performance. The desiccant cartridge inside the spacer frame absorbs any residual moisture in the cavity, preventing internal condensation over the IGU's 20+ year service life.
Fill Gas Selection
Argon is the most common fill gas: it is inert, abundant, cost-effective, and approximately 34% denser than air, reducing convection within the cavity and improving insulation. Krypton is denser than argon, offering superior insulation in narrower cavities (6–8 mm), but costs 4–5 times more, making it economical only in high-end applications.
Quality Assurance
Automated Vision System cameras verify spacer frame centering and corner key seating. Pressure sensors log fill data for every unit. Some lines include in-line thermal imaging to detect seal defects. Modern systems are networked to manufacturing execution systems (MES) for remote monitoring and predictive maintenance.
Environmental and Efficiency Considerations
Modern IGU lines incorporate closed-loop Water Circulation and Drainage Treatment systems, recycling wash water through media filters and reducing disposal costs. Energy recovery in sealant curing stages and optimized gas usage minimize operating costs. Waste sealant cartridges are collected for recycling, and glass offcuts are separately sorted for reuse.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
8 top-level lines · 47 rows shown · 58 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Washing Machine 5 parts | insulating-glass-line-washing-machine | 1× | 1 | 7 | assembly |
| 1.1 | Wash Stage | insulating-glass-line-wash-stage | 2× | 2 | — | part |
| 1.2 | Rinse Stage | insulating-glass-line-rinse-stage | 1× | 1 | — | part |
| 1.3 | Air Knife | insulating-glass-line-air-knife | 1× | 1 | — | part |
| 1.4 | Water Circulation | insulating-glass-line-water-circulation | 1× | 1 | — | part |
| 1.5 | Brush Roll | insulating-glass-line-brush-roll | 2× | 2 | — | part |
| 2 | Spacer Frame Applicator 5 parts | insulating-glass-line-spacer-frame-applicator | 1× | 1 | 5 | assembly |
| 2.1 | Spacer Hopper | insulating-glass-line-spacer-hopper | 1× | 1 | — | part |
| 2.2 | Frame Positioning Head | insulating-glass-line-frame-positioning-head | 1× | 1 | — | part |
| 2.3 | Corner Lock Press | insulating-glass-line-corner-lock-press | 1× | 1 | — | part |
| 2.4 | Vision System | insulating-glass-line-vision-system | 1× | 1 | — | part |
| 2.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 3 | Gas Filling Press 5 parts | insulating-glass-line-gas-filling-press | 1× | 1 | 7 | assembly |
| 3.1 | Press Chamber | insulating-glass-line-press-chamber | 1× | 1 | — | part |
| 3.2 | Gas Regulator | insulating-glass-line-gas-regulator | 1× | 1 | — | part |
| 3.3 | Gas Injector | insulating-glass-line-gas-injector | 2× | 2 | — | part |
| 3.4 | Pressure Gauge | insulating-glass-line-pressure-gauge | 1× | 1 | — | part |
| 3.5 | Pressure Sensor | pressure-sensor | 2× | 2 | — | part |
| 4 | Sealing Robot 5 parts | insulating-glass-line-sealing-robot | 1× | 1 | 5 | assembly |
| 4.1 | Robot Arm | insulating-glass-line-robot-arm | 1× | 1 | — | part |
| 4.2 | Sealant Feeder | insulating-glass-line-sealant-cartridge-feeder | 1× | 1 | — | part |
| 4.3 | Sealing Nozzle | insulating-glass-line-sealing-nozzle | 1× | 1 | — | part |
| 4.4 | Depth Sensor | insulating-glass-line-depth-sensor | 1× | 1 | — | part |
| 4.5 | Arm Controller | insulating-glass-line-arm-controller | 1× | 1 | — | part |
| 5 | Conveyor System 5 parts | insulating-glass-line-conveyor-system | 1× | 1 | 10 | assembly |
| 5.1 | Drive Motor | insulating-glass-line-drive-motor | 1× | 1 | — | part |
| 5.2 | Drive Belt | drive-belt | 2× | 2 | — | part |
| 5.3 | Clamp Head | insulating-glass-line-clamp-head | 2× | 2 | — | part |
| 5.4 | Position Sensor | insulating-glass-line-position-sensor | 4× | 4 | — | part |
| 5.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 6 | Control System 5 parts | insulating-glass-line-control-system | 1× | 1 | 13 | assembly |
| 6.1 | Microcontroller | mcu | 1× | 1 | — | part |
| 6.2 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 6.3 | Bare PCB | pcb-bare | 2× | 2 | — | part |
| 6.4 | Relay | relay | 8× | 8 | — | part |
| 6.5 | Power Supply | power-supply | 1× | 1 | — | part |
| 7 | Drainage Treatment 5 parts | insulating-glass-line-drainage-treatment | 1× | 1 | 6 | assembly |
| 7.1 | Settling Tank | insulating-glass-line-settling-tank | 1× | 1 | — | part |
| 7.2 | Drainage Pump | insulating-glass-line-drainage-pump | 1× | 1 | — | part |
| 7.3 | Filter Cartridge | insulating-glass-line-filter-cartridge | 2× | 2 | — | part |
| 7.4 | Mist Eliminator | insulating-glass-line-mist-eliminator | 1× | 1 | — | part |
| 7.5 | Pressure Sensor | pressure-sensor | 1× | 1 | — | part |
| 8 | Vacuum System 4 parts | insulating-glass-line-vacuum-system | 1× | 1 | 5 | assembly |
| 8.1 | Vacuum Pump | insulating-glass-line-vacuum-pump | 1× | 1 | — | part |
| 8.2 | Vacuum Manifold | insulating-glass-line-vacuum-manifold | 1× | 1 | — | part |
| 8.3 | Pressure Sensor | pressure-sensor | 2× | 2 | — | part |
| 8.4 | Vent Filter | insulating-glass-line-vent-filter | 1× | 1 | — | part |
