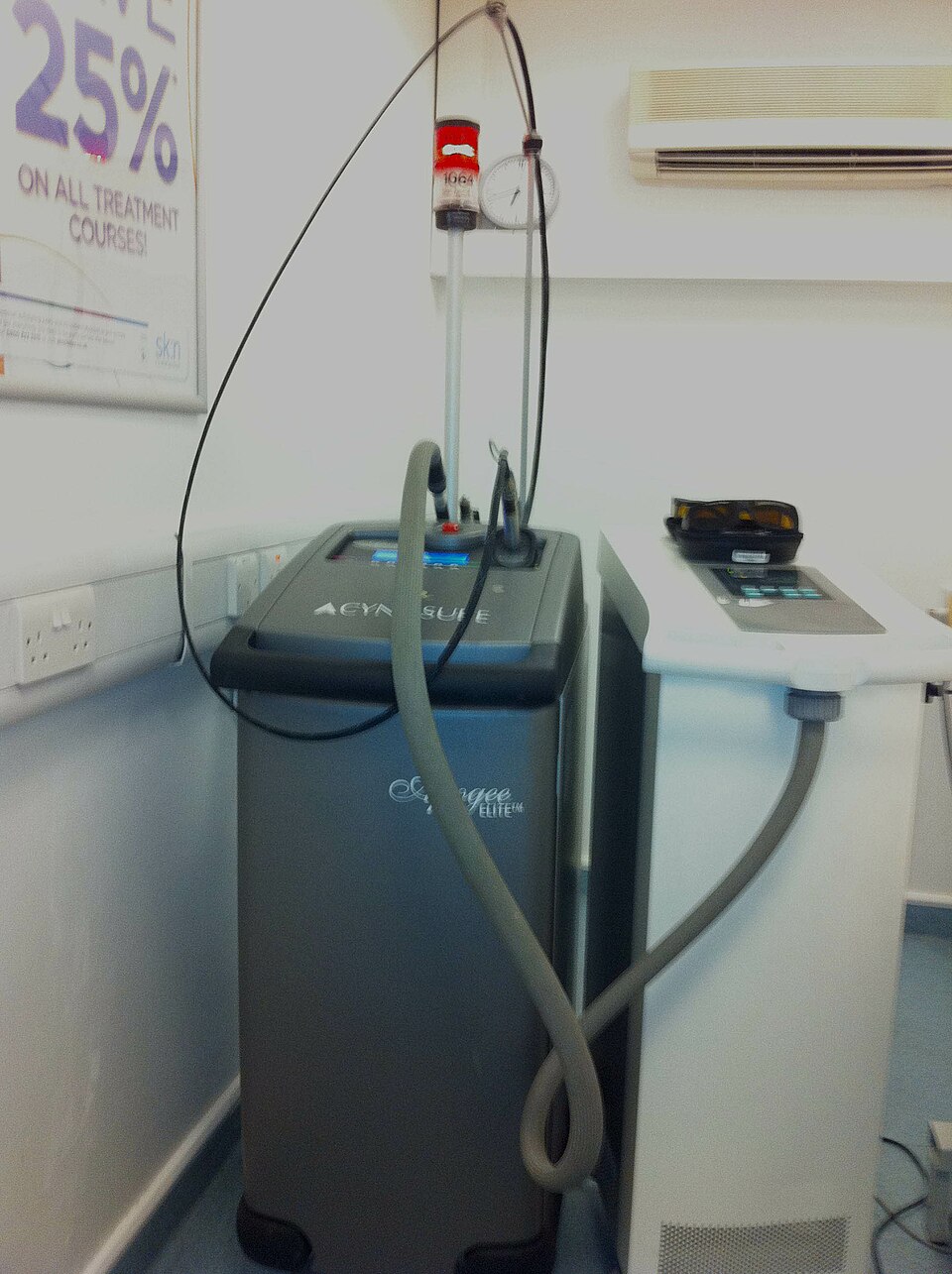

IPL Hair Removal Device

Overview

An IPL hair removal device slows hair regrowth by firing pulses of broadband light into the skin. Pigment in the hair shaft and follicle absorbs the light and turns it to heat, which damages the follicle enough to thin and delay regrowth over repeated sessions. Unlike a laser, which emits a single wavelength, IPL uses a flashlamp that emits a band of wavelengths, filtered to the range that targets hair. Home units are weaker and more cautious than clinic machines, leaning heavily on safety sensors.

A user presses the Flash Trigger Button against the skin; the Skin Sensor Module confirms contact and reads skin tone before anything fires. The Pulse Driver Board then dumps stored energy into the Flashlamp Module, which flashes through the treatment window. A Cooling Assembly assembly clears the heat so flashes can repeat, the Control Board sequences everything and drives the display, and an Power Pack pack or adapter supplies the energy. It all sits in a handheld Handpiece Housing shaped to glide across the skin.

How it works

The flash itself is a capacitor discharge. Between flashes the driver charges the Energy Storage Capacitor to a high voltage. When a flash is requested, a Trigger Transformer sends a brief high-voltage spike that ionises the gas inside the Xenon Flashlamp, and the stored energy then pours through the now-conductive lamp in a few milliseconds, producing an intense burst of light. A Optical Reflector aims that burst at the skin and a Cut-off Filter strips off the short, harmful wavelengths so only the useful band reaches the surface.

Safety is what separates a home device from a hazard. The Skin Sensor Module will not let the device fire unless it senses full skin contact, and its tone sensor blocks firing on skin too dark to treat safely, since darker skin absorbs too much of the light. Every flash deposits heat in the lamp and window, so the Cooling Assembly heatsink and fan pull it away and a thermal fuse cuts power if it climbs too far. The Control Board ties it together: it enforces the interlocks, steps the intensity up or down, counts flashes against the lamp's rated life, and shows the user where they are through the display.
