Karaoke Machine Product

Overview

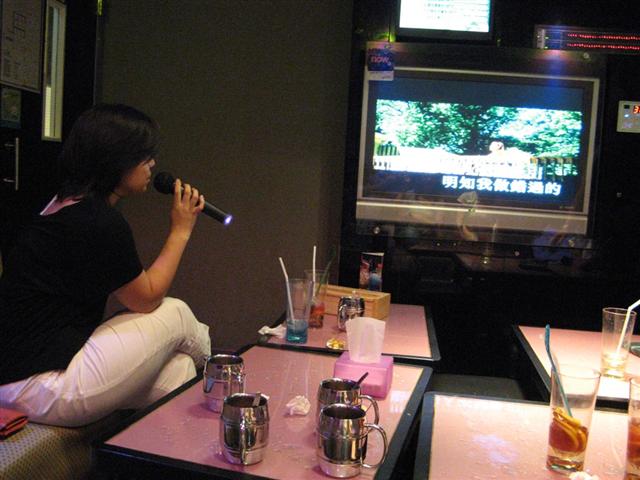

A karaoke machine combines four normally separate devices: a media player for backing tracks, a microphone mixer with vocal effects, a power amplifier, and a loudspeaker, all in one portable cabinet. The modern consumer form is a battery-powered tower or box speaker with two wireless microphones and a screen, descended from the Japanese commercial systems of the 1970s built around 8-track tape and a hard-wired mic mixer.

The architecture is a mixing problem. Music from the Media Player and vocals from each Handheld Microphone must be balanced, processed, and summed in the Mixer and Effects Board before the Speaker System reproduces them, while the singer follows lyrics on the Display Interface.

How it works

Each microphone signal arrives at a few millivolts and passes through a Microphone Preamp providing 40–60 dB of gain. The Effects DSP then applies the processing that defines the karaoke sound: a delay-line echo of 100–300 ms with feedback, which thickens an untrained voice and masks pitch wobble, plus optional reverb. The same DSP performs key control — shifting the backing track by up to six semitones in either direction so the song sits in the singer's range — using time-domain pitch shifting that preserves tempo.

For tracks that are not karaoke versions, the Vocal Cut Circuit circuit exploits the fact that lead vocals are usually mixed to the center of the stereo image: subtracting one channel from the other cancels center-panned content. The result is imperfect — bass and reverb smear remain — but it lets ordinary recordings serve as backing tracks.

The summed mix drives the Power Amplifier Board, a Class-D stage of 30–100 W chosen for efficiency on battery power, through a Passive Crossover that splits the band between the woofer and tweeter Speaker drivers around 3 kHz.

Microphones

The supplied Handheld Microphones use a moving-coil Microphone Capsule with a cardioid pattern whose null faces rearward — toward the speaker when the singer faces the audience — which is the main defense against feedback howl. A steel Microphone Grille with foam lining suppresses plosives. The Wireless Module carries the signal over UHF FM or a 2.4 GHz digital link with about 10–30 m of range, powered by a Li-ion Cell, 18650 in the handle and recharged in the cabinet's Microphone Holder cradles.

Sources and display

The Media Player is built around a Compute SoC Module running the player firmware. Most use is Bluetooth: the Bluetooth Module receives stereo audio from a phone running a karaoke app, which also supplies synchronized lyrics. Local playback comes from the USB Port or SD Card Slot reading MP3+G files — an MP3 paired with a CDG graphics stream carrying the lyric timing — or plain MP4 video.

Lyrics render either on the built-in LCD Panel with its Touch Digitizer for song selection, or on a television through the HDMI Connector. The Display Driver Board converts the SoC video output to the panel's interface and runs the backlight.

Power and packaging

The Power System packs four Li-ion Cell, 18650 cells managed by a BMS Board that enforces charge limits and cell balancing, with a Thermal Fuse as a final overtemperature backstop. A mains Power Supply charges the pack and runs the unit indoors; battery operation yields four to ten hours depending on volume, since Class-D efficiency above 85 % makes output level the dominant drain.

The Cabinet doubles as the speaker enclosure: the sealed or ported volume formed by the Cabinet Shell loads the woofer, behind a protective Speaker Grille. A Carry Handle (or trolley wheels on tower models) makes the 5–12 kg unit portable, and the Light Ring pulses addressable RGB LEDs from the audio envelope. The Control Panel exposes the essential live controls — mic level, music level, echo depth, and key — as physical Rotary Controls, because adjusting them mid-song through a touchscreen menu is impractical.
