Overview

A lumber drying kiln is an insulated chamber that removes moisture from freshly sawn lumber, reducing its moisture content from green (30–60% based on weight) to finished dry (8–15%). The controlled environment—heated air, managed humidity, and slow evaporation—minimizes wood defects like checking, cupping, and warping that would occur in open air drying.

The Drying Chamber is a heavily insulated box lined with a Heating System that warms air to 140–180°F, a Air Circulation that distributes air uniformly, and a Venting System that exhausts humid air in a programmed manner. Stacked and stickered lumber is loaded on [[kiln-lumber-dry-track-system|carts]] via the access Access Door. A Monitoring System tracks temperature and humidity, and the Control System orchestrates heating and venting to follow a [[kiln-lumber-dry-control-panel|kiln schedule]]—a prescribed time-temperature-humidity profile optimized for the wood species and target thickness.

How it works

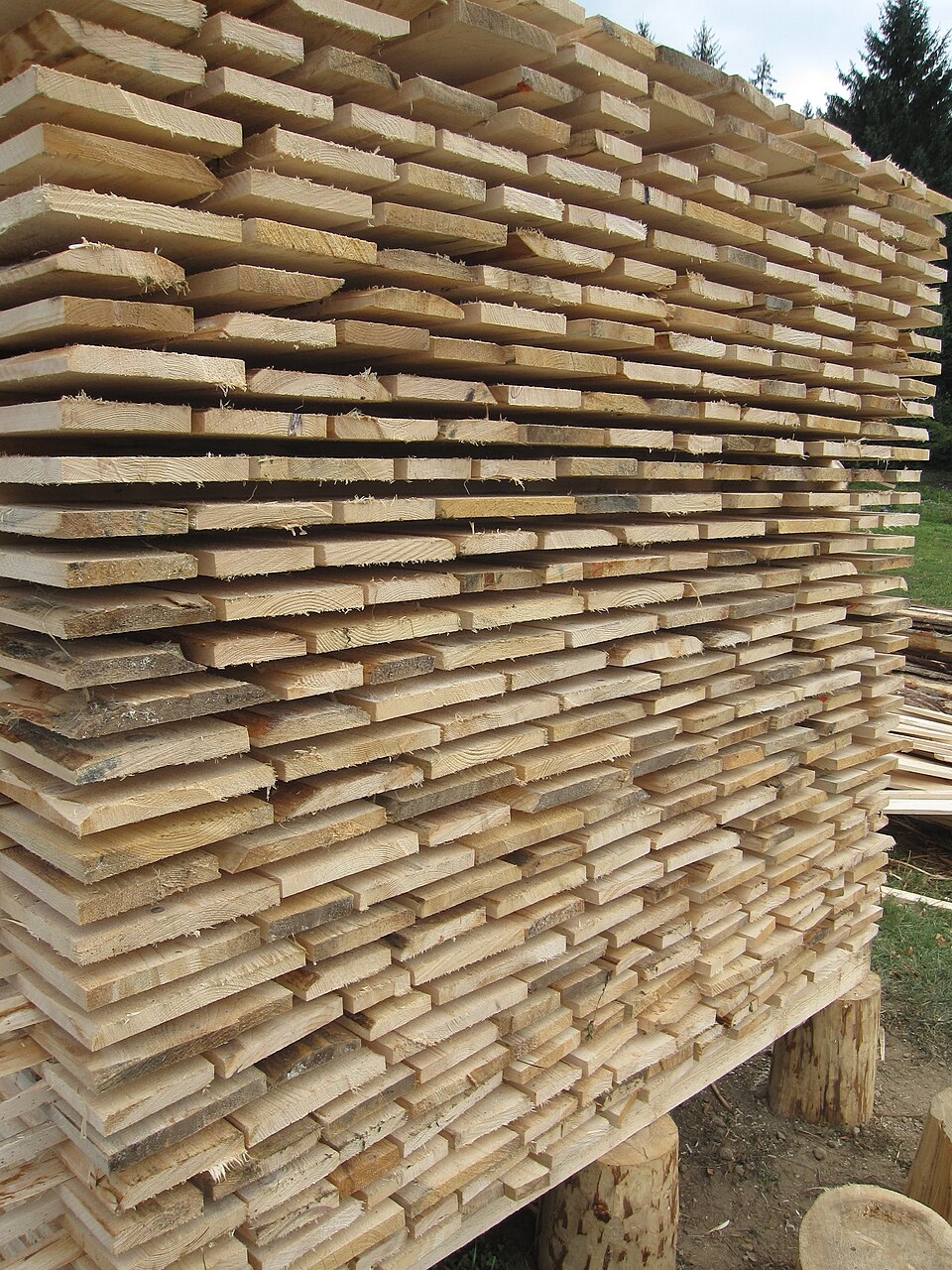

A batch of stacked, stickered lumber is wheeled into the Drying Chamber on Loading Carts running on Track Rails. The Access Door is sealed. The Control System initiates the kiln schedule, a multi-stage program:

Initial heating (6–12 hours): The Heating System warms the chamber air from ambient to 120–140°F. The Air Circulation (a [[kiln-lumber-dry-main-fan|large fan]]) runs continuously, pulling warm air through the lumber stack. The [[kiln-lumber-dry-venting-system|exhaust dampers]] are nearly closed, so humidity inside rises, creating a high-humidity environment. This slow initial heating prevents case-hardening (where the outer surface dries too fast, hardening and preventing interior moisture from escaping).

Drying stage (several days): The Thermostat maintains a steady temperature (140–160°F for softwood, 140–180°F for hardwood). The Humidity Sensors (wet and dry bulb Temperature Sensors) continuously measure relative humidity. As lumber dries, it releases moisture, raising interior humidity. The Control System gradually opens the Exhaust Dampers, allowing humid air to escape and outside (drier) air to enter. This reduces relative humidity inside, maintaining a moisture gradient: the boards remain slightly compressed internally because the outside is slightly drier, improving dimensional stability.

Conditioning (final 24–48 hours): Once the [[kiln-lumber-dry-temperature-sensor|moisture meter]] reading shows the lumber is near the target (e.g., 10–12% moisture), the kiln switches to conditioning. The Exhaust Dampers are closed (or nearly closed), and internal humidity is raised back to 90%+ RH. This allows the outer surface to re-absorb a little moisture, relieving case hardening and reducing checking (radial cracking).

Cool-down and unload: The Heating System is shut down, and the Air Circulation continues to cool the chamber. Once the lumber temperature drops below 100°F, the Access Door is opened and the dried Loading Carts are pushed out on the Track Rails.

Typical cycle time: 5–30 days depending on wood species, board thickness, and kiln schedule.

Chamber design

The Drying Chamber is a box typically 30–60 feet long, 12–16 feet wide, and 8–10 feet tall, with walls of 4–6 inches of foam, mineral wool, or fiberglass insulation to minimize heat loss. The Wall Panels are thin (1/4 inch steel facing) backed by insulation. The Kiln Floor is reinforced steel or concrete to support heavy stacked loads (stacks can weigh 10–20 tons). The Kiln Roof is similarly insulated.

The Access Door is a large, hinged or sliding panel (often 8–10 feet wide and 8–10 feet tall) insulated and gasketed to minimize air leakage. A [[kiln-lumber-dry-cart-pusher|mechanical pusher]] or chain-driven device slides loaded Loading Carts in and out.

Internal layout: lumber stacks are arranged in rows along the Track Rails. Space between rows allows air to circulate. The Fan Ductwork is typically a plenum (large chamber) located above the stacks, with the Main Fan pulling air through a Heating Coil, then distributing it downward through the lumber. Return air comes up through the stack spaces, back to the fan.

Heating system

Steam-heated kilns use a Heating Coil—a bundle of pipes through which 150-psi steam flows. The kiln-lumber-dry-fan pulls air across the coil, transferring heat, and the steam condenses. The Condensate Pump returns hot condensate to the boiler. This is the most common system in mills with existing boilers.

Electric-heated kilns use electric Heating Coils (resistance heaters, 30–60 kW typical). These are slower to warm up and more expensive to operate than steam but require no boiler.

The Heating Valve is a thermostatic valve or a solenoid controlled by the Control System. It modulates heat by varying steam flow (or electrical power) to maintain the [[kiln-lumber-dry-thermostat|set temperature]].

Air circulation

The Air Circulation is critical to uniform drying. The Main Fan (typically a 2–5 hp centrifugal or propeller fan) runs continuously. Without continuous circulation, temperature and humidity gradients develop: air near the heating coil is hotter and drier; air near the exhaust is cooler and more humid. These gradients cause moisture to move unevenly, creating cupping and checking.

The Fan Ductwork (plenum) is designed to distribute air evenly across all lumber positions. Some kilns use baffles or chicanes inside the stack to force air to follow a tortuous path through the lumber, ensuring every board is exposed to the drying air stream.

The Flow Damper (a butterfly or louver damper in the return air path) modulates circulation speed. Slower circulation (damper 30% open) is used early in drying to preserve high humidity; faster circulation (damper fully open) is used later to remove moisture more aggressively.

Humidity and venting

The Humidity Sensors are the key to correct conditioning. Modern kilns use a Monitoring System with a wet-bulb and dry-bulb Temperature Sensor (a psychrometer). The difference between these two temperatures defines relative humidity. The Control System reads both and calculates the exact RH inside the chamber.

The Exhaust Dampers control venting. When the Control System senses RH is too high (interfering with drying), it opens a solenoid-driven Exhaust Damper, allowing humid air to escape and fresh (drier) outside air to enter. This is done gradually to avoid thermal shock, which can cause checking.

Typical damper opening: 10–20% early in drying, ramping to 50–80% as lumber dries, then closing to near 0% for conditioning.

Control and scheduling

The Control System is a PLC or dedicated kiln controller. It stores multiple [[kiln-lumber-dry-control-panel|schedules]]—pre-programmed time-temperature-humidity profiles for each species and thickness (e.g., "Softwood 1-inch 140°F start," "Hardwood 2-inch 160°F start"). The operator selects a schedule, and the Control System automatically adjusts heat and dampers to follow it.

Advanced [[kiln-lumber-dry-control-panel|controllers]] integrate moisture meters that directly measure the target moisture in sample boards, allowing the Control System to adapt the schedule based on actual progress rather than just time.

The Data Logger records all temperature and humidity readings throughout the cycle, allowing post-run analysis and adjustment of future schedules.

Defect prevention

The main drying defects are prevented by the controlled schedule:

Checking (radial cracking): Caused by the surface drying too fast. Prevented by slow initial heating and periodic conditioning phases.

Cupping: Caused by uneven drying across the board width. Prevented by good air circulation and careful humidity management.

Warping: Caused by non-uniform drying or stacking stress. Prevented by proper stickering (supporting the board at multiple points with aligned stickers) and controlled schedules.

Case hardening: The surface hardens and seals, preventing interior moisture from leaving. Prevented by gentle initial heating and high-humidity conditioning phases.

Integration and workflow

Typical cycle: Green lumber (fresh from [[kiln-lumber-dry|sawmill]]) → [[kiln-lumber-dry|sticker and stack]] → Load kiln cart → Kiln cycle (5–30 days) → Unload → Sort/grade → [[kiln-lumber-dry|Planing]] → Wrap and ship.

A single kiln with 4,000–6,000 board feet capacity, running 7–10-day cycles, produces 1,500–2,500 board feet per day of dried, graded lumber. Large mills run multiple kilns in parallel to maintain continuous output.

Kiln drying is essential for hardwood mills (where dimensional stability is critical for flooring, furniture) and high-value softwood mills (where defects directly reduce grade and value). Smaller or commodity mills may use cheaper air drying (6–12 months) but sacrifice output speed and product consistency.
