Low Fog Machine Product

Overview

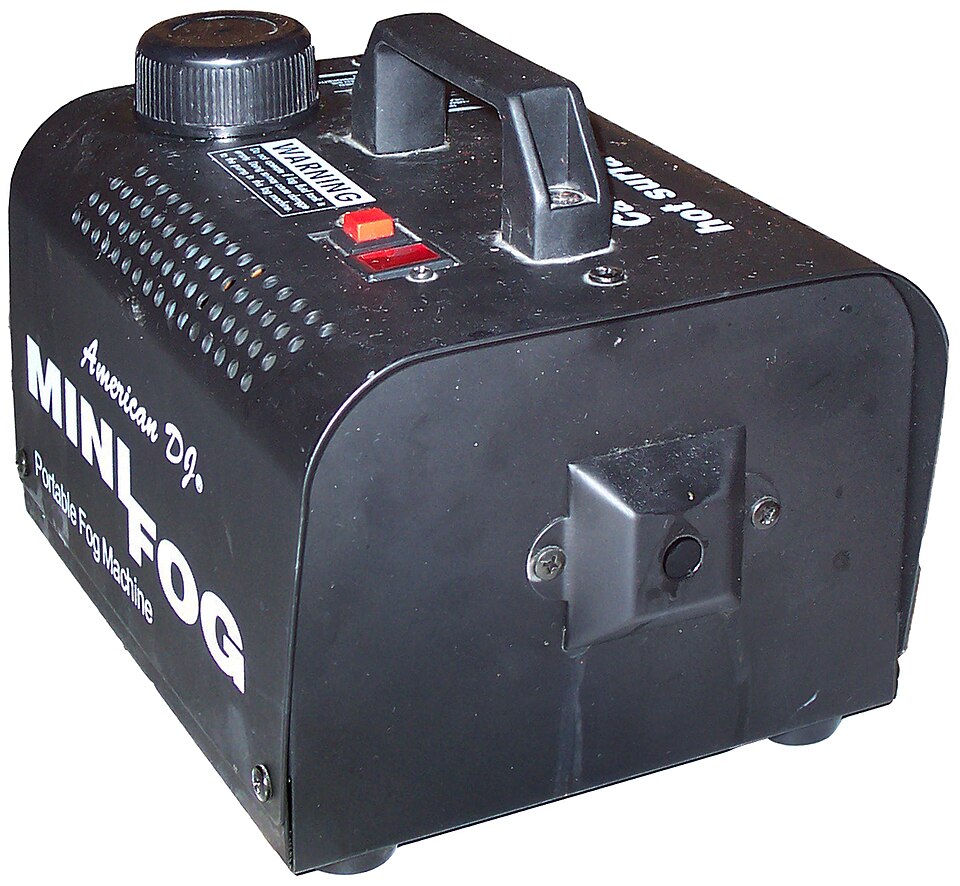

A low-fog (or cryogenic fog, cryo-fog) machine produces theatrical fog that stays close to the floor rather than rising and dissipating into the air. This creates dramatic ground-hugging effects common in concert lighting, theater productions, and haunted attractions. The principle is simple: heated fog is light and buoyant and rises; cooled fog is denser than air and sinks. A low-fog machine combines a standard Fog Generator with a Chiller Module that cools the fog to near-freezing before output.

The system heats Fluid Pump fog fluid to 300–350 °C, atomizing it into fine droplets. These droplets evaporate into vapor and invisible condensation nuclei. The hot fog/steam exits the generator and enters a Chiller Module where a refrigerant compressor cools the flow to 0–5 °C. At this temperature, water vapor in the air condenses onto the nuclei, forming visible liquid fog droplets. These droplets are denser than air and settle toward the floor, creating the characteristic ground-hugging effect.

Heating and atomization

The Fog Generator is a sealed stainless-steel chamber heated by an electric Heating Element (2–3 kW immersion heater) to 300–350 °C. Fog fluid from the Fluid Tank is pumped by the Fluid Pump into this hot chamber at 200–500 mL/min. The fluid instantly evaporates and atomizes into a fine mist, carried downstream by the Air Pump, which supplies atomization air at 0.5–2 bar.

Temperature control is critical. Too cool (~200 °C), and fluid condenses before atomizing fully; too hot (>400 °C), and fluid components (often a glycol/water base) begin to degrade chemically, producing undesirable odors or sludge. The Heater & Thermostat maintains setpoint via a Temperature Probe and bimetallic switch, allowing ±10 °C regulation.

The atomizer nozzle design—typically a pneumatic airblast atomizer—is crucial. The Atomizer Nozzle creates a high-pressure air jet that shatters fluid into droplets. This is more uniform than ultrasonic or rotary atomization, both of which can produce unwanted mist patterns in fog machines.

Refrigeration and chilling

The Chiller Module is a self-contained refrigeration system. A Refrigerant Compressor (1.5–3 hp, running R-134a refrigerant) circulates coolant through an Evaporator Coil positioned in the fog output path. Hot fog from the generator enters the evaporator coil, transfers heat to the cold refrigerant, cools to 0–5 °C, and exits. The heat absorbed by the refrigerant is pumped to the Condenser Coil (a fan-cooled radiator), where it's rejected to the ambient air.

The Refrigerant Circuit includes an Dryer/Filter to protect the compressor from moisture and particulates. A thermostat-controlled low-fog-machine-expansion-valve or capillary tube regulates refrigerant flow to maintain steady evaporator temperature.

Alternative chillers use dry ice (solid CO₂) sublimation for very low temperatures (–78 °C outlet), creating fog that hugs the floor even more aggressively than mechanical refrigeration. Dry-ice machines are less common in modern professional rigs because they require consumable dry-ice cartridges and produce dangerous CO₂ gas.

Ducting and output

The Ducting System carries cooled fog from the chiller to stage. The Duct Hose is typically 4 in. ID flexible aluminum or reinforced polyester, Insulation Wrap with 50 mm foam (R-20) to prevent heat loss (warm fog rises, losing the low-fog effect). An Output Nozzle directs fog horizontally or downward onto stage, and a Damper Valve allows manual throttling of flow for intensity adjustment.

The nozzle design encourages fog to spread horizontally rather than jetting upward. Many professional nozzles include baffle plates that gently expand the flow, breaking up the initial jet momentum.

Control and operation

The DMX Control Board receives DMX512 cues and operates relays for the heater and pump. Channels control:

• On/off toggle
• Fog intensity (pump speed fade)
• Duration (via timer relay)
• Chiller on/off (often run continuously to maintain readiness)

DMX allows operators to cue low-fog effects from a lighting console, synchronizing with lighting, music, and actor movement. Intensity control is smooth (PWM pump speed), avoiding stepped on-off transitions.

The Temperature Monitor includes a Heater Sensor in the heating chamber and a Chiller Sensor at the chiller outlet. Both feed a Temperature Control, which alarms if the heater overshoots or the chiller underperforms.

Warm-up and cool-down

Before a show, both heater and compressor must warm up. The heater typically reaches operating temperature in 5–10 minutes. The compressor may take 2–3 minutes to establish pressure. Some systems have a pre-run timer that automatically starts both systems before curtain, ensuring readiness.

After a show, the chiller should be allowed to run for 2–3 minutes to purge heat from the system before shutdown. Abrupt stops can cause liquid refrigerant slugging (shock) in the compressor, reducing lifespan.

Fluid choice and maintenance

Theatrical fog fluid is typically a blend of propylene glycol or diethylene glycol with water, plus a small amount of mineral oil for viscosity stability. Different brands produce different "hang time" (how long fog lingers before evaporating). Premium theatrical fluids produce visible, long-lasting fog; bargain fluids evaporate quickly and may produce odors or residue.

The Tank Filter should be changed monthly; the Pump Tubing (silicone) is consumable and degrades over 1–2 years of use. The Dryer/Filter in the chiller should be inspected yearly; if saturated, it absorbs moisture that will freeze at the expansion valve, blocking flow.

Operational limits and safety

Operating temperature must stay within –10 to +40 °C. Below –10 °C, propylene glycol becomes viscous and the pump may cavitate. Above +40 °C, refrigerant pressure rises uncontrollably, risking compressor damage. Ventilation must be adequate to reject compressor heat and dissipate CO₂ if a dry-ice variant is used.

Low-fog machines cannot be used outdoors (wind disperses fog) or in very warm venues (warm air rises, counteracting the effect). For outdoor summer concerts, alternative effects like traditional fog or lighting are preferred.
