Magnetic Drill Press Product

Overview

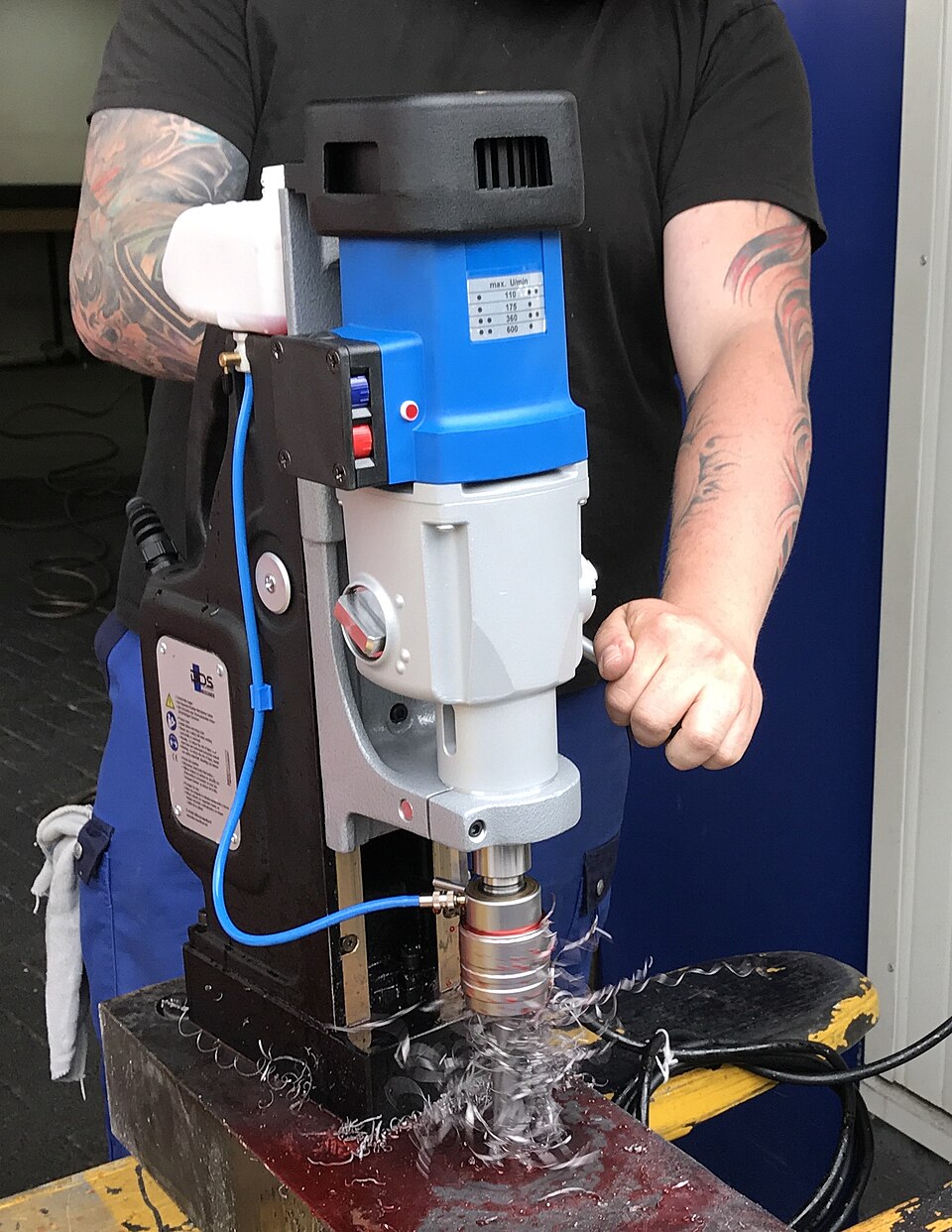

A magnetic drill press is a portable electromagnetic machine tool that clamps magnetically to ferrous steel workpieces and delivers precision drilling through a rotating spindle with power-feed mechanism. It bridges the gap between handheld magnetic drills (which require significant operator pressure) and fixed-pedestal drill presses (which are immobile and require clamping fixtures).

Magnetic drills are essential in structural steel fabrication, shipbuilding, bridge construction, and heavy equipment assembly, where drilling holes in thick steel plates and wide-flange beams is routine. By magnetically holding the tool to the workpiece, the tool itself becomes mobile—allowing operators to drill multiple holes in a single large component without repositioning the component.

How It Works

The [[magnetic-drill-press-electromagnet|electromagnet base assembly]] generates a high-field magnetic force (1000–3000 kg) that clamps the tool to the steel workpiece surface. Permanent magnets or electromagnets (energized by AC rectification or DC control) concentrate flux through pole pieces, creating extremely strong surface adhesion.

The [[magnetic-drill-press-motor-spindle|motor and spindle assembly]] rotates the [[magnetic-drill-press-chuck-arbor|drill chuck]] at 250–2000 rpm, depending on workpiece material and hole diameter. The [[magnetic-drill-press-feed-mechanism|feed mechanism]] advances the spindle downward through manual handwheel rotation or motorized power-feed, allowing the operator to control cutting pressure precisely.

The [[magnetic-drill-press-column-slide|column and carriage assembly]] provides a rigid, precision-guided path for vertical spindle travel. Linear ball bearings on the carriage minimize friction and ensure smooth feed action without binding or chatter.

During drilling, the [[magnetic-drill-press-coolant-system|coolant system]] delivers flood or mist coolant to the drill point, managing heat and flushing away chips. The pump cycles continuously while the spindle runs, providing tool life extension and superior surface finish.

Electromagnetic Clamping

The [[magnetic-drill-press-electromagnet|electromagnet]] operates on one of two principles:

Permanent Magnet Models: Rare-earth or ferrite magnets provide constant 1200–2000 kg holding force without electrical input. A mechanical release lever shifts the magnet away from the workpiece surface, disengaging the field.

Electromagnet Models: AC-powered electromagnets deliver 2000–3000 kg holding force when energized. An internal rectifier converts AC to DC. Release is instantaneous upon power cutoff or manual lever actuation.

Magnetic force is proportional to surface contact area and workpiece permeability. A 10×15 cm contact face on mild steel generates roughly 1200 kg; larger contact areas yield proportionally higher clamping forces. The tool self-aligns to follow the workpiece surface contour.

Precision and Spindle Accuracy

The [[magnetic-drill-press-spindle-shaft|spindle]] runs in precision ball bearings (angular contact or deep-groove) with <0.02 mm total indicated runout (TIR), allowing accurate drilling at standard machine-tool tolerances (IT6–IT7 hole fits).

The [[magnetic-drill-press-column-slide|column guide]] is ground and hardened to RC 50–55 Rockwell, with flatness <0.05 mm over 500 mm travel. Preloaded linear bearing blocks eliminate backlash, resulting in consistent depth stops and repeat drilling accuracy within ±0.5 mm across multiple holes.

Feed Control and Productivity

Manual feed (handwheel) gives operators direct tactile feedback, essential for breakthrough detection and preventing tool breakage. Power-feed (motorized downfeed) is optional on larger units and accelerates production for repetitive drilling—particularly valuable in series production runs.

Feed rates typically range from 0.05–0.3 mm per revolution. Optimal feed is determined by:

• Hole diameter: Larger holes require slower feed (lower surface speed)
• Material: Mild steel tolerates 0.2 mm/rev; stainless steel and cast iron require 0.05–0.1 mm/rev
• Coolant availability: Dry drilling demands reduced feed; flood coolant permits higher rates

Coolant and Chip Evacuation

The integrated [[magnetic-drill-press-coolant-system|coolant system]] is critical for tool life and surface finish. A solenoid-controlled pump delivers coolant at 2–5 bar pressure to the drill point through nozzles. The coolant:

• Removes cutting heat (reduces tool temperature from 700+ °C to 200–300 °C)
• Flushes away aluminum and steel chips, preventing recutting and heat buildup
• Provides lubrication, reducing flank wear
• Improves surface finish to Ra 1.6–3.2 μm

Dry drilling severely reduces tool life (50% or more) and can cause tool breakage if feed pressure is not carefully controlled.

Material Compatibility

Magnetic drills work on all ferrous materials:

• Mild steel: Optimal; 1200+ kg clamping force is standard
• Stainless steel: Lower permeability; use slightly higher clamping pressure or electromagnets
• Cast iron: Good clamping, but brittle; lower feed rates prevent tool breakage
• High-carbon or alloy steel: Excellent clamping; requires reduced feed and flood coolant

Non-ferrous materials (aluminum, copper, brass, composites) require clamping fixtures and cannot use magnetic clamping.

Portable Designs and Worksite Use

Portable magnetic drills (20–60 kg) can be carried by two workers and installed on vertical surfaces, overhead beams, or awkwardly positioned structural components. Typical applications:

• Bridge construction: Drilling beam splice bolt holes
• Shipbuilding: Drilling hull plating in large sections
• Building steel: Drilling connection bolt holes in columns and girders
• Tank and pressure vessel fabrication: Drilling nozzle and drain holes
• Equipment bases: Drilling machinery mounting holes

A magnetic drill can reposition quickly to drill the next hole without disturbing the workpiece, dramatically improving production efficiency compared to clamping and repositioning for each hole.

Safety Considerations

• Magnet strength: Ensure adequate surface contact (minimum 10×10 cm) before drilling
• Magnetic field hazards: Keep ferrous objects (tools, watches, phones) away from the magnet
• Spindle guarding: A [[magnetic-drill-press-chuck-arbor|drill chuck]] guard prevents contact with rotating drills
• Emergency stop: A red latching [[magnetic-drill-press-control-panel|emergency stop button]] is mandatory for motor cutoff

Many worksite installations include audible alarms and light beacons (on industrial models) to warn nearby personnel of active drilling.

Standards and Regulatory

Magnetic drills comply with:

• ISO 13849-1: Safety of machinery (functional safety)
• IEC 60204-1: Electrical safety for industrial machinery
• ANSI B11.6: Portable electromagnetic drills and tapping machines
• ASME B4.19: Morse taper tolerances and fit standards
