Mask Aligner Product

Overview

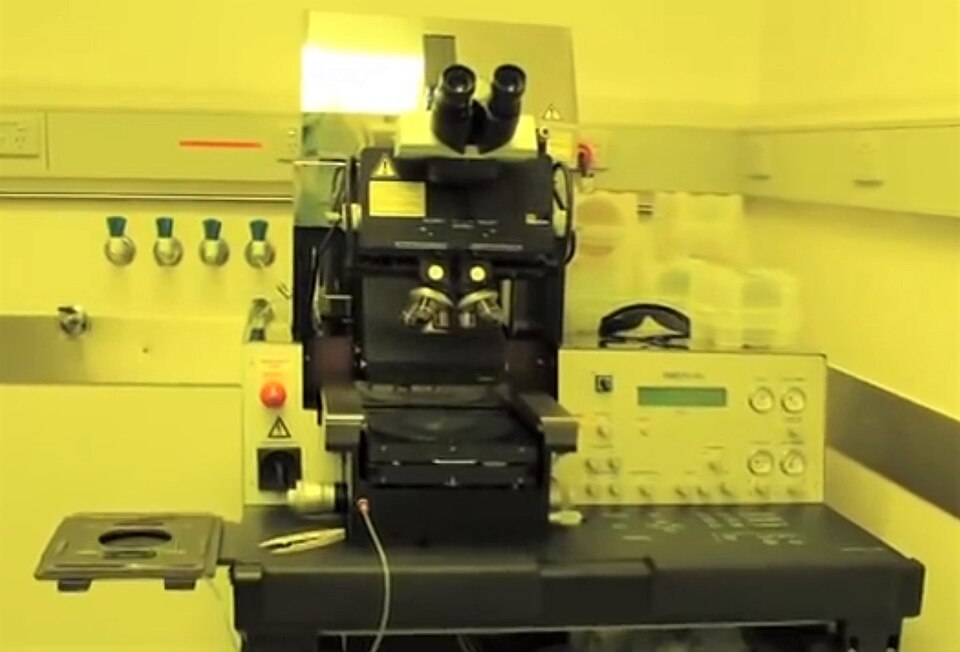

Contact mask alignment lithography is a fundamental patterning technology in semiconductor manufacturing. The mask aligner positions a photomask in contact or proximity to a wafer coated with photoresist, exposes the pattern through UV light, and transfers the photomask pattern onto the resist. This process is essential for critical patterning layers (gate, metal, via, etc.) in integrated circuits, as well as for photovoltaic cells, MEMS, and advanced packaging (fine-pitch bumps, vias).

Mask aligners bridge the gap between low-cost optical lithography and high-resolution but expensive deep-ultraviolet (DUV) steppers used at advanced nodes. Contact aligners are cost-effective (typically $500k–$2M) and deliver micron-level resolution sufficient for mature technology nodes (0.5 μm to 5 μm) and specialized applications. The tool's throughput (40–80 wafers/hour including alignment overhead) and simplicity make contact alignment the de facto standard for specialty IC fabs, MEMS foundries, and research facilities.

Light Source and Exposure

The UV Light Source is a high-pressure mercury arc lamp operating at 500–2000 W, emitting a broadband spectrum from 254 nm (deep UV) through 436 nm (visible). Most fabs use either the 365 nm (i-line) or 436 nm (g-line) region, isolated by Shutter and Filter Assembly dichroic filters. The 365 nm i-line penetrates typical positive photoresists well and avoids scattered light from the 254 nm deep-UV, making it the most common choice for contact lithography.

The Collimating Lens converts the divergent lamp output into a parallel beam, illuminating the entire wafer uniformly. The beam intensity at wafer plane is typically 20–50 mW/cm² at 365 nm. Exposure time depends on photoresist type and thickness; typical recipes range from 5 to 30 seconds for 0.5–2 μm resist. The Exposure Timer controls the solenoid shutter with millisecond precision, enabling repeatable dose control to ±3% across wafers and lots.

Heat is a critical concern. The mercury lamp generates significant infrared radiation, which must be rejected to avoid wafer heating (every 10 °C increase shifts resist properties by ~5%). The Heat Filter absorbs >95% of infrared above 800 nm, while the UV Filter transmits only the desired UV band. Proper filtering keeps wafer temperature rise <5 °C during a typical 10-second exposure.

Mask Stage and Precision Positioning

The Mask Stage Assembly holds the photomask (typically 4–6 inches, 100–150 mm diameter) with precision alignment to wafer fiducial marks. The Reticle Holder mechanically clamps the mask using spring-loaded pins and locating surfaces, ensuring repeatable centering. The Mask XY Stage provides motorized X and Y fine adjustment (range ±100 μm) with <0.5 μm step size, enabling overlay correction after initial alignment detection.

Most contact aligners use a two-level alignment strategy: (1) coarse alignment using the full mask image or alignment frames (XY and theta), and (2) fine alignment on multiple points across the wafer (typically 4–9 corners or edges). The Alignment Optics camera measures overlay error at each point, computing the required mask XY theta correction to bring errors below 1–2 μm (1σ). Modern systems run this alignment loop in 30–60 seconds, a minor fraction of the total 50–80 second wafer cycle time.

Wafer Chuck and Contact Control

The Wafer Chuck Assembly is a precision stage with vacuum hold and XY theta positioning. The Chuck Plate is a ceramic or anodized aluminum surface with vacuum channels etched or drilled into the bottom, enabling gentle suction hold at 8–10 inHg. The vacuum prevents wafer slip during the contact sequence but is weak enough to release the wafer instantly when vacuum is vented.

The Focus Control maintains optimal wafer-mask gap during exposure. Hard-contact mode (direct mask-wafer touching) maximizes resolution but risks mask damage; many fabs prefer soft-contact mode with 10–50 μm standoff, balancing resolution and mask longevity. The Focus Sensor measures the gap using laser triangulation or capacitive sensing, feeding back to the Z servo. Before each exposure, the system performs an autofocus routine: measuring gap at 3–5 positions across the wafer, computing the best-fit wafer tilt, and adjusting Z motor height to minimize tilt-induced defocus. Repeatability is typically <50 nm, sufficient for sub-micron resolution at the specified NA (numerical aperture).

Alignment Detection and Image Processing

The Alignment Optics uses a coaxial optical path: a green LED (530 nm) illuminates alignment marks on the mask and wafer, and the CMOS Image Sensor captures both through a long-working-distance microscope objective. The camera image includes both mask marks (dark on transparent substrate) and wafer resist marks (typically chrome crosses on silicon). Image processing computes centroids or edge positions, measuring the X, Y, and theta offset between mask and wafer marks.

Overlay errors are computed from multiple alignment points. Most tools measure 4 corners; some high-end systems use 9 or 12 points for wafer-flatness compensation. Error vectors at each point are least-squares fitted to compute wafer translation, rotation, and sometimes wafer-magnification error. The tool compensates by commanding the mask stage to the required offsets, reducing residual error to <1 μm (1σ) before exposure.

Contact Sequence and Wafer Handling

The standard wafer exposure sequence is: (1) load wafer onto chuck and pump vacuum, (2) move chuck under mask and initiate autofocus, (3) compute alignment offset from center-of-wafer measurement, (4) command mask stage to overlay correction, (5) repeat alignment measurement at multiple points, (6) bring mask and wafer into contact (or soft-contact gap), (7) trigger exposure shutter for specified duration, (8) retract wafer from mask, (9) vent vacuum and unload wafer.

Total cycle time is 50–80 seconds, with breakdown: wafer load/unload (10 sec), autofocus and alignment (30–40 sec), exposure (10–20 sec), and mechanical motion (10–20 sec). Throughput is typically 45–60 wafers per hour in single-wafer mode, or higher if inline with a wafer loader (up to 100+ wafers per hour possible with rapid-queue robots feeding the tool).

Photomask and Defect Management

Contact aligners work with photomasks, typically 4 or 6 inches (100–150 mm) square or circular, comprised of a borosilicate or fused-silica substrate with a chrome emulsion layer (0.5–1 μm thick). The chrome is patterned to form the circuit design. Mask cost ranges from $1000 to $50,000+ depending on feature size and pattern complexity. Masks are reusable for thousands to millions of exposures (limited by chrome erosion and resist buildup).

In contact or soft-contact mode, the mask surface makes mechanical contact with the wafer. Particles (dust, resist debris) or substrate asperities can cause scratches on the mask chrome or wafer damage. Many fabs use pellicle masks—a thin (0.2–1 μm) transparent membrane stretched over the mask, separating the pattern from the wafer. Pellicles absorb particles and prevent physical contact, extending mask life and improving yield. However, pellicles scatter light and reduce intensity, requiring longer exposure times or higher lamp power.

Process Variations and Advanced Techniques

Positive and negative photoresists are both compatible with contact aligners. Positive resists (typically phenolic or novolac-based) are exposed where light strikes, hardening chemically; development removes unexposed regions. Negative resists (diazo or acrylate-based) harden where unexposed, offering better adhesion and etch resistance but lower resolution. Resist thickness typically ranges from 0.5 to 3 μm, with thicker resist used for high-aspect-ratio etching and metallization layers.

Some specialty applications use image reversal resists or lift-off resists, enabling pattern inversion or fine-pitch structures impossible with single-layer approaches. Multiple-exposure techniques (stacked images) allow patterning of densely spaced features smaller than the single-exposure pitch. Proximity gap mode (100–200 μm standoff) combines the speed of soft-contact with lower mask damage risk, at the cost of slightly worse resolution.

Maintenance and Lifetime

Mercury lamps degrade over time, with intensity dropping ~5% per 1000 hours of operation. Most fabs replace lamps every 2000–5000 hours. Shutter mechanisms and stepper motors require periodic lubrication and alignment. Vacuum pumps lose capacity gradually due to oil contamination; fluid changes every 6–12 months maintain pump performance.

Photomask maintenance is critical. Chrome erosion from repeated contact and dust buildup from inadequate filtration reduce pattern fidelity. Masks are periodically cleaned and inspected (optical or SEM inspection) for defects. Pellicle replacement is routine maintenance on mask sets (every 1–2 years or per usage-hour limits). Despite these costs, contact mask alignment remains cost-competitive for fabs running mature nodes (0.5 μm and above) at volumes of 1000–10,000 wafers per month.
