Overview

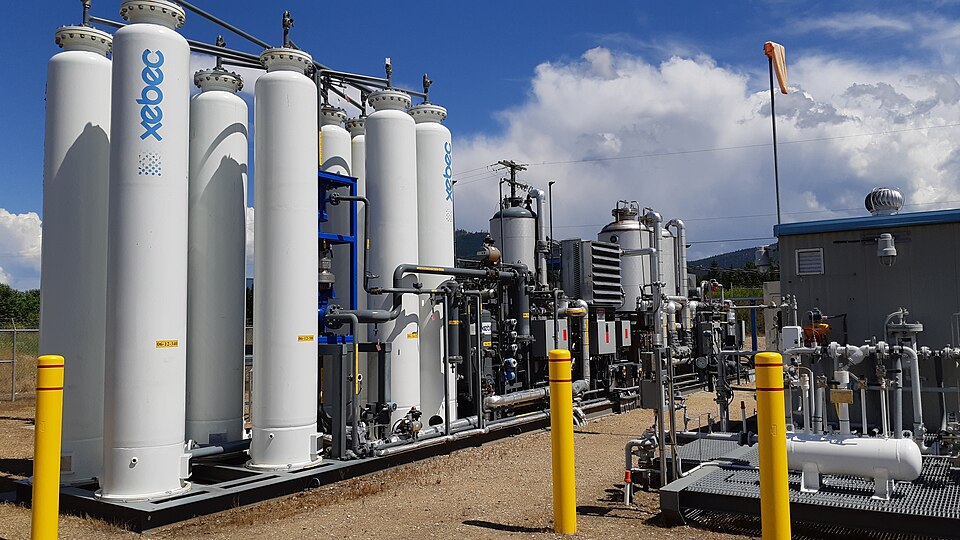

A biogas upgrader uses membrane separation to increase raw Anaerobic Digester biogas (50–70% methane, 25–40% CO₂) to pipeline-quality biomethane (>95% CH₄). The Membrane Module selectively permeates carbon dioxide and traces of other gases (N₂, O₂, H₂S) faster than methane through a thin polymeric film. By establishing a pressure differential (8–10 bar on the feed side, ~1 bar on the permeate side), CO₂ molecules preferentially cross the membrane, leaving concentrated methane on the retentate (product) side.

Membrane separation is attractive compared to pressure-swing adsorption (PSA) or cryogenic separation because it has no moving parts inside the membrane, lower capital cost per unit volume, and scalability from 10 m³/hour (small farm digesters) to 500+ m³/hour (wastewater treatment plants).

How it works

Separation Mechanism

CO₂ permeates through polysulfone or polyimide hollow-fiber membranes at a rate 20–100 times faster than CH₄ due to differences in molecular size (kinetic selectivity) and solubility in the polymer. The Membrane Cartridge is a bundle of hollow fibers (0.2–1 mm ID) spun into a module with feed flowing inside fibers and permeate drawn off from the shell side.

The separation efficiency is governed by:

$$\text{Recovery} = \frac{\text{CH}_4 \text{ in product}}{\text{CH}_4 \text{ in feed}} \times 100%$$

Typical hollow-fiber membrane modules achieve 90–96% methane recovery at 8–10 bar feed pressure with ~5% residual CO₂ in product.

System Flow Path

Raw biogas from the Anaerobic Digester enters the Pretreatment, where the H₂S Scrubber removes hydrogen sulfide (target: <10 ppm) using iron oxide pellets. The Moisture Separator removes free and dissolved water, and the Particle Filter traps biosolids and corrosion particles that would foul the Membrane Cartridge.

Pretreated biogas enters the Compressor Stage, where a Blower Motor-driven Screw Compressor raises pressure to 8–10 bar. The Compressor Cooler rejects compression heat; downstream Feed Splitter distributes compressed gas evenly across the membrane fiber bundle.

Inside the Membrane Module:

• Feed side (inside fibers): 8–10 bar, biogas mixture
• Permeate side (shell side): ~1 bar (often vented to atmosphere or routed to Permeate Handler)
• Retentate (product): ~7–9 bar, methane-rich gas exiting axially from the module

Control and Adaptation

The Control System continuously monitors product composition via Gas Analyzer (NDIR dual-channel CH₄/CO₂ sensor). If CO₂ concentration rises above ~5% (indicating membrane fouling or suboptimal pressure ratio), the controller can:

1. Reduce compressor speed via VFD Compressor variable frequency drive (trading throughput for better separation).
2. Increase feed-side pressure via Feed Regulator (within 10 bar limit).
3. Alert operator for membrane cartridge replacement if no control action restores purity.

The Flow Meter logs product flow rate; combined with Pressure Sensor readings, the PLC calculates specific energy (kWh per m³ product).

Product Finishing

Product gas (~7–9 bar, ~95% CH₄, ~100–500 ppm H₂O) passes through Product Dehydration consisting of a dual-tower Desiccant Dryer (silica gel or 3A/4A molecular sieve). One tower adsorbs water while the second is regenerated offline with mild heat (40–100 °C) from an Regeneration Heater. Dried product reaches <50 ppm H₂O, meeting pipeline specification (typical limits: <100 ppm H₂O, <5 mg/m³ H₂S, <3% CO₂).

A small Product Buffer accumulator (1–5 L) smooths pressure ripple, preventing downstream flame arrestors or regulators from chattering.

CO₂ Stream Disposition

The Permeate Handler routes CO₂-enriched exhaust (typically 50–80% CO₂ + 15–45% CH₄ + N₂ + residual contaminants) either to:

• Atmosphere: Simple vent via flame arrestor (no value recovery, but safest).
• Optional CO₂ recovery: A second Optional Compressor boosts CO₂ to 50–60 bar, then a Liquefaction Unit cryogenic cooler condenses it to liquid CO₂ for beverage carbonation, enhanced oil recovery, or chemical synthesis.

Integration and Efficiency

The entire upgrading system (pretreatment + compression + membrane + drying) consumes ~0.15–0.25 kWh electrical per m³ of product biomethane. At 10 kWh/m³ energy content of methane, this represents ~2% electrical parasitic loss—far lower than PSA systems (3–5%) and comparable to cryogenic separation (1–2%, but requiring capital-intensive refrigeration equipment).

Biogas Upgrader product (>95% CH₄) can feed directly into Solid Oxide Fuel Cell Module for power generation, be compressed into Hydrogen Tube Trailer cascade systems for mobile storage, or injected into natural gas pipelines (grid-connected operation). In circular-economy applications (e.g., wastewater treatment plants), biogas from Anaerobic Digester fed to an upgrader then to Solid Oxide Fuel Cell Module provides renewable power for treatment operations.

Maintenance and Life

Hollow-fiber membranes degrade over 3–5 years (10,000–20,000 operating hours) due to compaction (loss of void fraction), hydrolysis (polymer chain scission in humid feed), and chemical attack (H₂S, H₂O). The Membrane Cartridge is replaceable as a drop-in module; the Module Housing and rest of the skid remain in service across cartridge generations.
