Mini PC Product

Overview

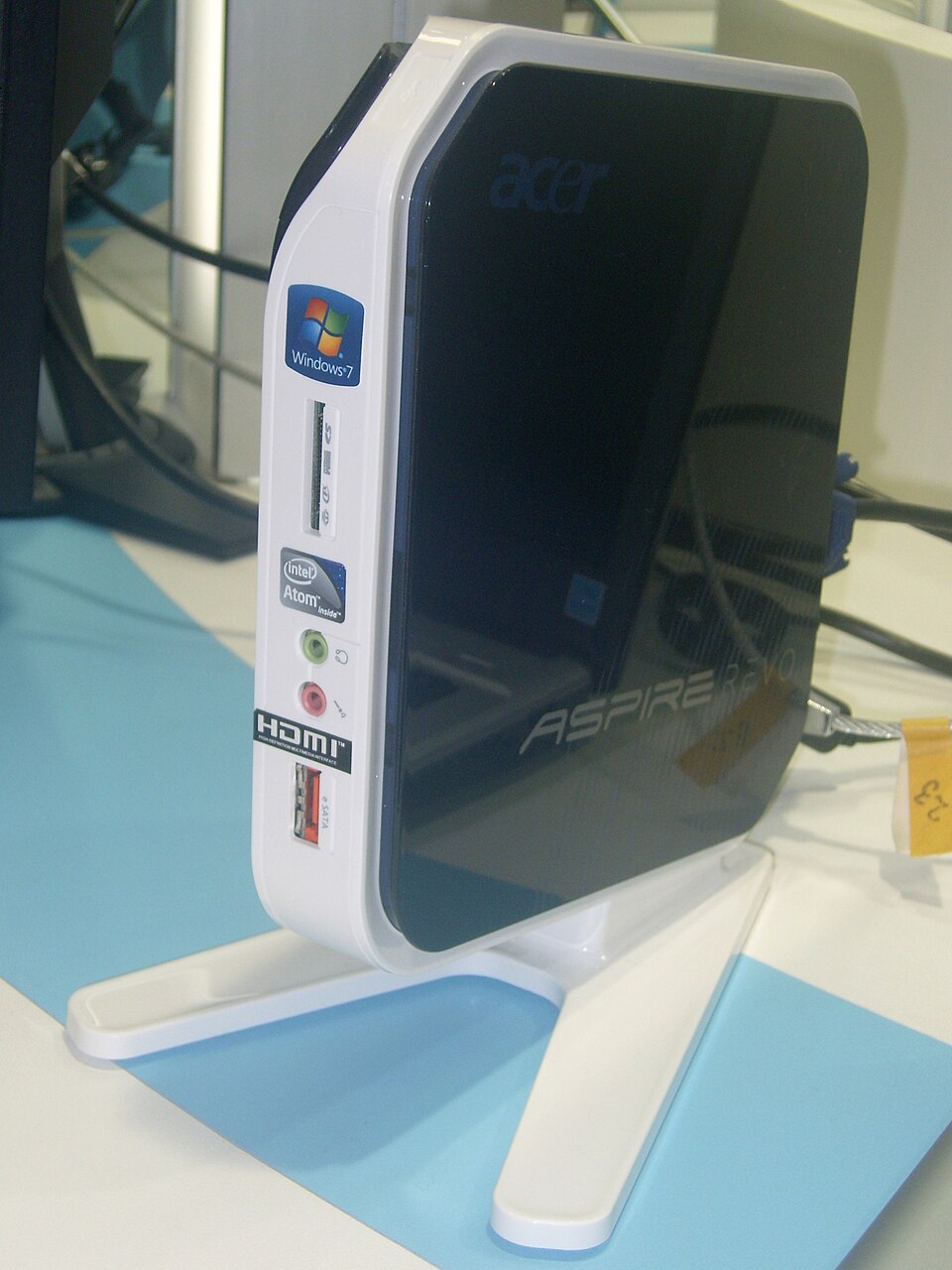

A mini PC is a fully functional desktop computer shrunk into a box small enough to sit under a monitor or hide behind one. It trades the expansion slots and discrete graphics of a tower for size and quiet, packing a low-power processor, memory, storage, and wireless onto a single board. The result drives two displays, runs an office or media workload, and idles at a few watts.

The machine is built around the Mainboard, a single board carrying the soldered SoC and the SO-DIMM memory. Boot media lives on the NVMe SSD, and wireless connectivity comes from the Wi-Fi / BT Module feeding the screw-on Wi-Fi Antenna pair. All the external connections are gathered in the I/O Port Cluster. Because the SoC has no fan of its own, heat is handled by the Cooling Assembly assembly, and the whole stack is enclosed in the Chassis. The unit runs from an external Power Supply plugged into the DC Power Jack.

How it works

Mains power is converted to low-voltage DC by the external adapter and enters through the barrel jack. On the mainboard the VRM Power Stage steps that rail down to the precise core, memory, and I/O voltages the SoC needs, switching at high frequency under firmware held in the BIOS Flash Chip. At power-on the firmware trains the SO-DIMM Memory Module memory, enumerates the NVMe drive, and hands control to the operating system.

The SoC integrates the CPU cores, the GPU, and the memory and PCIe controllers on one die, so the board needs little beyond power and connectors. Video is encoded on-chip and driven straight to the display ports; USB, Ethernet, and the M.2 storage and radio all hang off the SoC's PCIe and USB lanes. Under load the die can dissipate tens of watts, which the heat pipe carries into the fin stack for the blower to exhaust — the one moving part that keeps the small package from throttling.
