Mobility Scooter Product

Overview

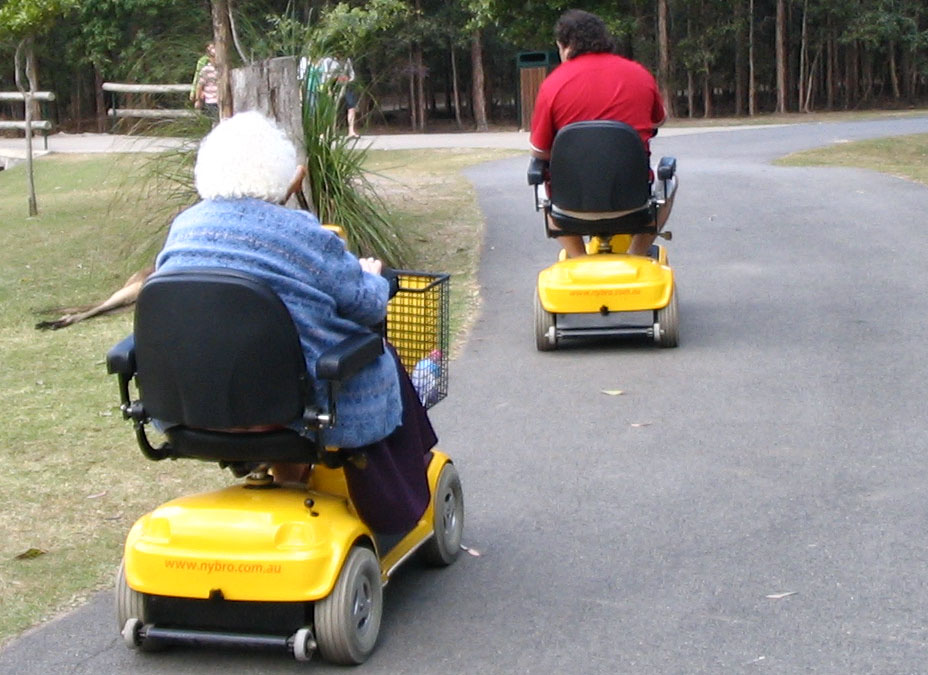

A mobility scooter is a battery-electric vehicle for people who can sit and steer but cannot walk far. It occupies a regulatory niche between wheelchair and moped: UK rules split the category into Class 2 machines limited to 6 km/h on footpaths and Class 3 machines allowed 13 km/h on roads, and the design standards (EN 12184, ISO 7176) read more like wheelchair standards than vehicle ones — static stability on a 1-in-8 slope matters more than acceleration. The architecture is a low Chassis with a rear Drive Axle, a swivelling Captain Seat, and a Tiller the rider steers like a boat helm.

Drive and braking

Propulsion comes from a single Drive Motor — a brushed 24 V permanent-magnet unit of about 500 W, chosen over brushless for cost and for the simplicity of reversing by polarity. It bolts to the Transaxle Gearset: a worm-and-wheel reduction near 32:1 into a bevel differential that lets the rear wheels track different speeds through the scooter's 1.3 m turning circle. The worm stage is quiet and compact, and its poor back-driveability is a feature here — the scooter resists rolling away on a slope even before the brake acts.

Braking is automatic. The Electromagnetic Brake on the motor tail is spring-applied and electrically released: it can only be off while the controller energises it, so any power loss, fault, or simply releasing the throttle brings the scooter to a held stop. An attendant can still move a dead scooter by setting the Freewheel Lever, which decouples the transaxle — and the Motor Controller refuses to drive while it is set, because a freewheeling scooter on a hill is the classic accident mode.

Electrical system

Energy lives in two AGM Battery blocks in series — sealed AGM lead-acid, 12 V 36 Ah each. Lead-acid persists in this market long after lithium conquered e-bikes because the duty cycle is gentle (C/5 discharge), the chemistry is tolerant of overnight float charging from the offboard Power Supply, spill-proof AGM is accepted on aircraft, and the weight low in the chassis actually helps tip stability. The pair rides in a Battery Case that lifts off in one piece, splitting the heaviest module out when the scooter is dismantled for a car boot. A 40 A Circuit Breaker is the master protection and isolation point, and charging enters through the tiller-mounted XLR Charger Port.

The Controller Module is a potted PWM unit, typically rated 70 A. It ramps voltage to the motor following the Wig-Wag Throttle paddles — press right to go forward, left to reverse, release to stop — scaled by the tortoise-and-hare Speed Dial and halved automatically in reverse. Soft-start, current foldback, and undervoltage cutout are all firmware behaviours of its Microcontroller driving a Power MOSFET H-bridge; faults report as flash codes on the Battery Gauge.

Chassis, steering, seating

The Frame is welded steel rated for a 135 kg rider, usually split by a Frame Coupler so the vehicle separates into liftable halves without tools. Steering is mechanical: the Tiller Column turns the front Steering Knuckles through Tie Rods, with the loop-shaped Delta Bar letting riders with arthritic grip steer with palms or forearms. Four 230 mm Road Wheels wear non-marking Tires — foam-filled polyurethane trades ride comfort for immunity to punctures, which strand a user in a way a flat bicycle tire does not. Rear Anti-Tip Wheels touch down before the machine can loop backwards on its rated 8-degree slope.

The Captain Seat is where wheelchair thinking shows. It swivels on a detented Swivel Base and locks at 90 degrees so the rider transfers sideways onto a chair or bed; the Armrests flip up out of the transfer path, and the Seat Post adjusts height to match the user's furniture. Class 3 machines carry the full Lighting set — Headlamp, Tail Lamp, four Turn Indicators with hazard mode — because they share the road; Class 2 machines often keep the lights anyway for dusk pavement use.

Performance envelope

The numbers are deliberately modest: 8 km/h, 30 km range, 14% climb. Within that envelope the machine substitutes for the 500 m to 5 km trips that define independent living — shops, clinic, post office — which is why reliability features (auto-braking, battery gauge, freewheel interlock, puncture-proof tires) dominate the design over any performance metric.
