Computer Motherboard Product

Overview

A motherboard is the backbone of a computer: the board every other part plugs into and the wiring that lets them talk. It does not compute much itself. Its job is to hold the CPU, feed it clean power, route high-speed signals between the processor, memory, and expansion cards, and break out the connectors a user actually touches. Get the layout and power delivery right and a fast CPU runs to its potential; get them wrong and nothing else matters.

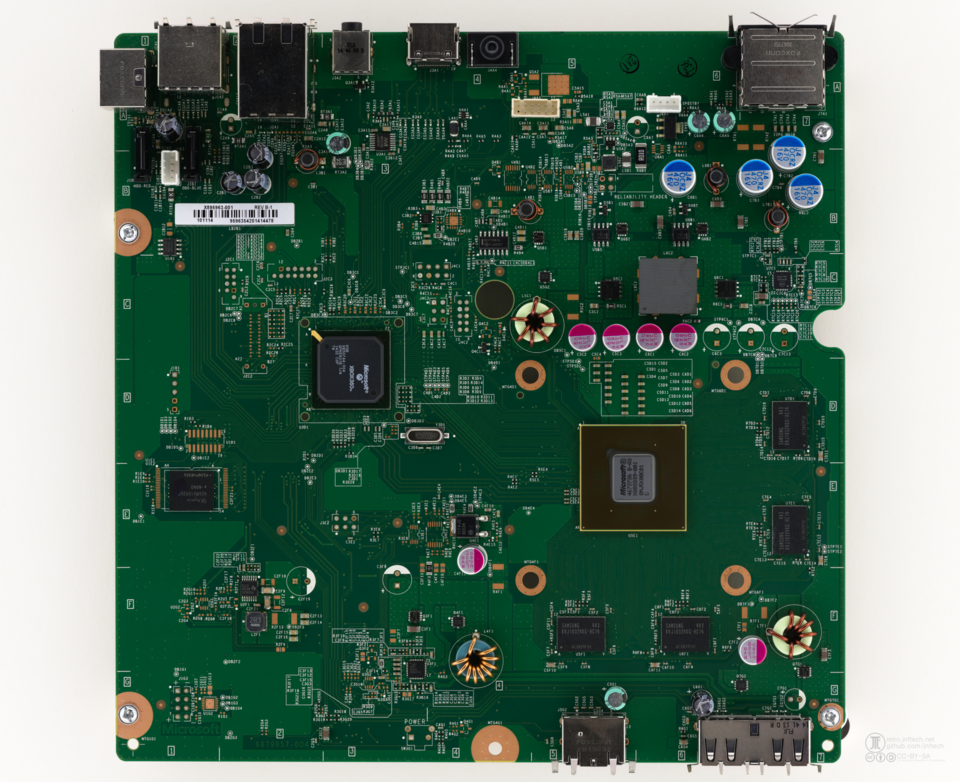

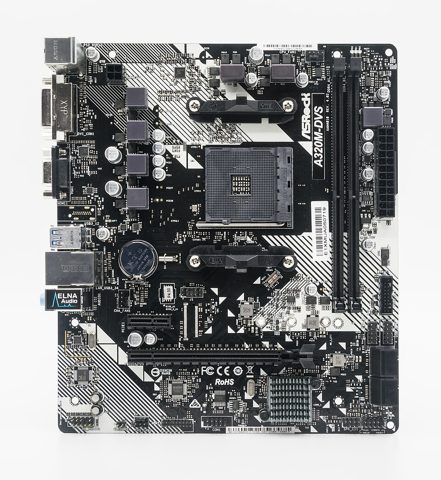

It begins as a Multilayer PCB, a multilayer board whose hidden planes carry power and shield the signal traces. At its center the CPU Socket clamps the processor, fed by a bank of VRM Phase phases under VRM Heatsink blocks. The Platform Chipset expands the CPU's limited lanes out to the DDR DIMM Slot memory, PCIe Slot and M.2 Slot expansion, and the I/O Cluster. A BIOS & Battery chip holds the firmware that wakes the whole machine.

How it works

At power-on the firmware in the BIOS & Battery flash runs first, before any operating system exists. It tells the VRM Phase what voltage the CPU needs, trains the memory in the DDR DIMM Slot modules, initializes the Platform Chipset, and then hands control to a bootloader on a drive. A coin cell keeps the clock and settings alive while the machine is unplugged.

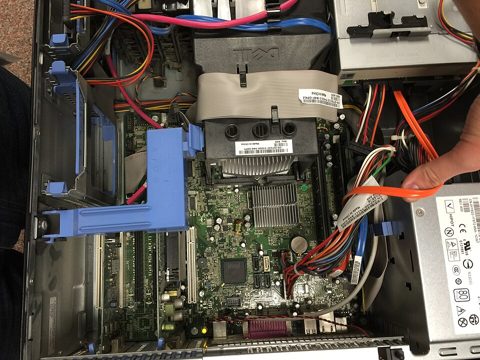

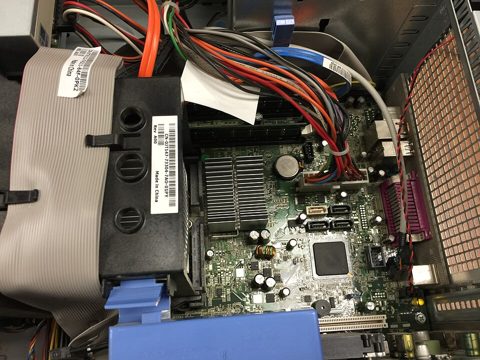

In normal operation the CPU's fastest lanes go straight to graphics in the PCIe Slot and to NVMe storage in the M.2 Slot, keeping latency low for the things that need it most. Everything slower — SATA drives, most USB, audio, and network — hangs off the chipset through the I/O Cluster, which acts as a hub so the CPU is not burdened with every peripheral. Power arrives through the Power Connector inputs and the dense VRM Phase turns it into the steady core voltage the processor demands as its load swings, while the Header Set ties in the case buttons, lights, and fans.
