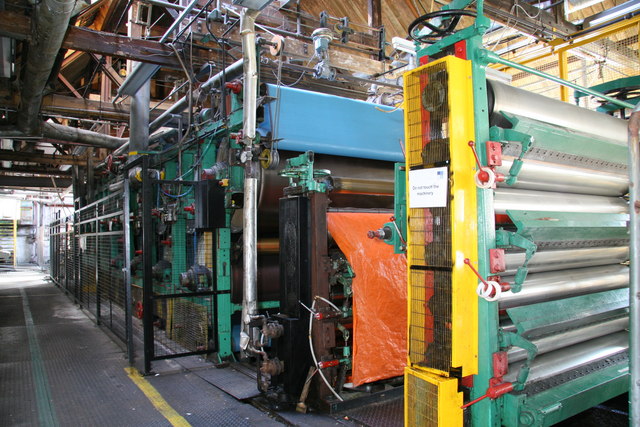

Paper Making Machine Product

Overview

A modern fourdrinier papermaking machine is a continuous industrial system transforming an aqueous fiber suspension into rolled finished paper at industrial scale. The machine operates by spreading a dilute fiber jet across an endless moving screen, where water drains through by gravity and vacuum to form a web. Once the fibers have enough strength to hold together, the web transfers to pressed rollers that consolidate the structure, then to heated drums that evaporate the remaining water, and finally to a calender that smooths and compresses the surface. The finished sheet winds onto a large reel for storage and transport.

Papermaking is one of the oldest continuous manufacturing processes, but modern machines are precise instruments. Basis weight (the areal density of the paper) must stay within ±2–3 %, moisture within ±0.5 %, and the finished surface must be smooth and glossy enough for high-quality printing. Every section of the machine—the Headbox, Wire Section, Press Section, and Dryer Cylinders—plays a critical role in the final product.

How it works

The process begins at the Headbox, where dilute fiber suspension (typically 1–2 % solids by weight in water) is metered through an adjustable Slice Lip onto the forming Wire Section. The machine width can span 2–10 m, and uniformity across that width is essential. The fiber jet lands gently on the moving wire, which travels at speeds of 500–1500 m/min depending on the paper grade.

As the wire moves, water is drawn through the fiber layer by a series of Fourdrinier Suction Box vacuum chambers underneath. The vacuum—typically 50–70 kPa below atmospheric—removes water and helps pack the fibers into a coherent web. The web gradually gains strength as fibers interlock, and by the time it reaches the Couch Roll at the end of the wire section, it is strong enough to be transferred to the felt.

The Press Section consists of heavy nip rollers squeezing the web at pressures of 500–1500 kN per meter of width, paired with press Press Felt layers that absorb and carry water away. The pressure consolidates the fiber structure, reducing porosity and improving sheet density and strength. Multiple nips progressively remove water by pressing, which is far more efficient than evaporation alone.

Once most of the bound water has been pressed out, the web enters the Dryer Cylinders stack—typically 6–12 large Dryer Drum cylinders heated by saturated steam at 5–10 bar. As the paper passes around these hot drums, the remaining water evaporates. A soft Drying Felt guides the web and absorbs surface moisture. Temperature and residence time are balanced to avoid case hardening (where the surface dries before water can escape from the interior), which causes uneven shrinkage and curl.

After drying, the paper is still slightly warm. The Calender smooths and densifies the surface by compressing it between polished hard rolls under controlled pressure, improving gloss, print surface, and dimensional stability.

Finally, the sheet winds onto a large Reel & Takeoff under tension maintained by a variable-speed Reel Drive Motor. Edge guides keep the paper centered, and a full reel (the "log") can weigh 15–20 tonnes.

The Control System runs continuously, measuring basis weight with a Basis Weight Sensor, moisture with a Moisture Sensor, and adjusting headbox consistency, steam flow, and other parameters to keep quality within specification. The Ventilation & Steam Supply system exhausts humid air from the dryer hood and, on some machines, recovers heat from the exhaust stream to warm boiler feedwater.
