Industrial Parts Washer Product

Overview

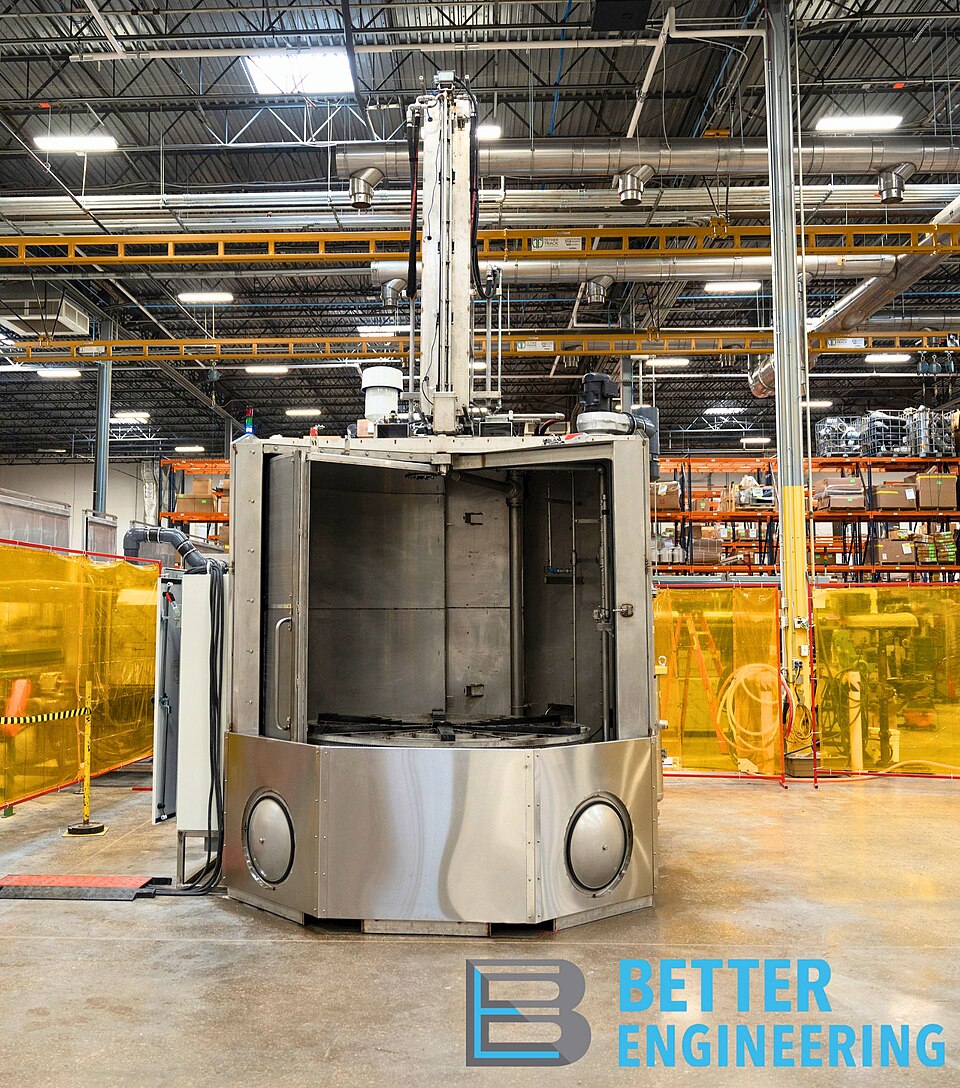

An industrial parts washer removes oil, coolant, chips, carbon and shop grime from machined or remanufactured components using hot water-based detergent instead of solvent. The cabinet spray type works like an oversized dishwasher built for engine blocks: parts sit on a slowly rotating Turntable Assembly inside a sealed Wash Chamber while a high-volume pump blasts them from all sides with solution held at 50–80 °C. Aqueous cabinet washers displaced vapor degreasers and solvent sink tanks across most of industry as chlorinated-solvent regulation tightened, and for shop-floor cleaning of steel, iron and aluminum parts they are now the default.

How it works

Cleaning power comes from three factors multiplied together: heat, chemistry and mechanical impact. The Heating System keeps the tank solution hot — every 10 °C roughly doubles the speed of oil saponification and halves solution viscosity. The chemistry is a 2–5 % alkaline detergent (pH 10–13) whose surfactants lift oil and whose builders keep it suspended instead of redepositing. The mechanical work comes from the Wash Pump, a seal-less vertical centrifugal unit that moves hundreds of litres per minute at 2–5 bar through the Spray Manifold surrounding the table. Volume matters more than pressure in this class of machine: the goal is to flood every surface with hot moving solution, not to cut with a pressure-washer jet.

The fixed Spray Nozzle rows are aimed so their fan patterns overlap on the load as the Table Platform carries it past at 1–3 rpm; the combination of rotation and overlapping fans reaches all external surfaces without any moving spray hardware inside the hot, dirty chamber. Blind holes and internal galleries remain the known weakness of spray washing — those need targeted plumbing fixtures or a separate immersion-agitation machine.

A cycle is simple: load by crane or forklift through the Cabinet Door, select time on the Control System, and start. The controller runs the pump and table for the wash period, stops spraying for a drain dwell, then runs the Steam Exhaust fan to purge steam through the Mist Eliminator before the operator opens the Door Interlock Switch-interlocked door. Larger machines add a fresh-water rinse stage and a heated blow-off to leave parts dry and briefly rust-protected by inhibitor in the rinse.

Keeping the solution alive

The economics of aqueous washing depend on running the same few hundred litres for weeks, so the Filtration System chain does constant cleanup. Solids settle out in stages: the Chip Basket catches chips and grit where the chamber drains to the Solution Tank, and the Bag Filter on the pump return polishes the recirculating stream to 50–200 µm. Tramp oil — hydraulic oil and way lube that the detergent has lifted but not emulsified — floats to the tank surface, where the Oil Skimmer belt continuously wipes it into a waste container. Skimming is the single most effective life-extender; an oil layer left on the tank both redeposits on parts and feeds bacterial growth that turns the tank septic. Evaporation losses are replaced automatically through the Auto-Fill Valve, with detergent concentration checked by titration or refractometer and topped up manually. A well-managed tank lasts four to eight weeks before a dump-and-recharge through the Drain Valve.

Protection and safety

The heater bank is the component most often destroyed by neglect: if the level falls and an Heating Element runs exposed, it burns out in minutes. The Low-Level Switch locks out the heater contactors below minimum level, and a Thermal Fuse high-limit backs up the Solution Thermostat. The door interlock stops the pump instantly on opening, since the chamber during a cycle contains a 70 °C spray storm. Steam purge before door-open protects the operator and keeps condensation from raining onto the shop ceiling.

Selection notes

Sizing starts from the largest part: turntable diameter and door opening must clear it, and the Turntable Bearing and platform rating must carry it — ratings run from 200 kg bench machines to 2,000 kg and beyond for engine-block and gearbox-housing work. Cycle results depend more on tank discipline than machine size; a small washer with fresh chemistry and a working skimmer outcleans a large one with a dead tank. Electric heating dominates below about 24 kW; high-throughput remanufacturing lines switch to gas immersion tubes for operating cost. Typical complete cycles run 5–30 minutes, against hours of hand brushing for the same engine block.
