A patient lift is a wheeled hoist that raises an immobile patient in a fabric sling and moves them between bed, wheelchair, commode, and floor without a caregiver taking the weight. It exists because manual transfers are the leading cause of back injury among nurses and carers, and because a dropped patient is a serious event. With a lift, one person can transfer someone safely: roll the base under the bed, hook on the sling, press a button, and swing the load across.

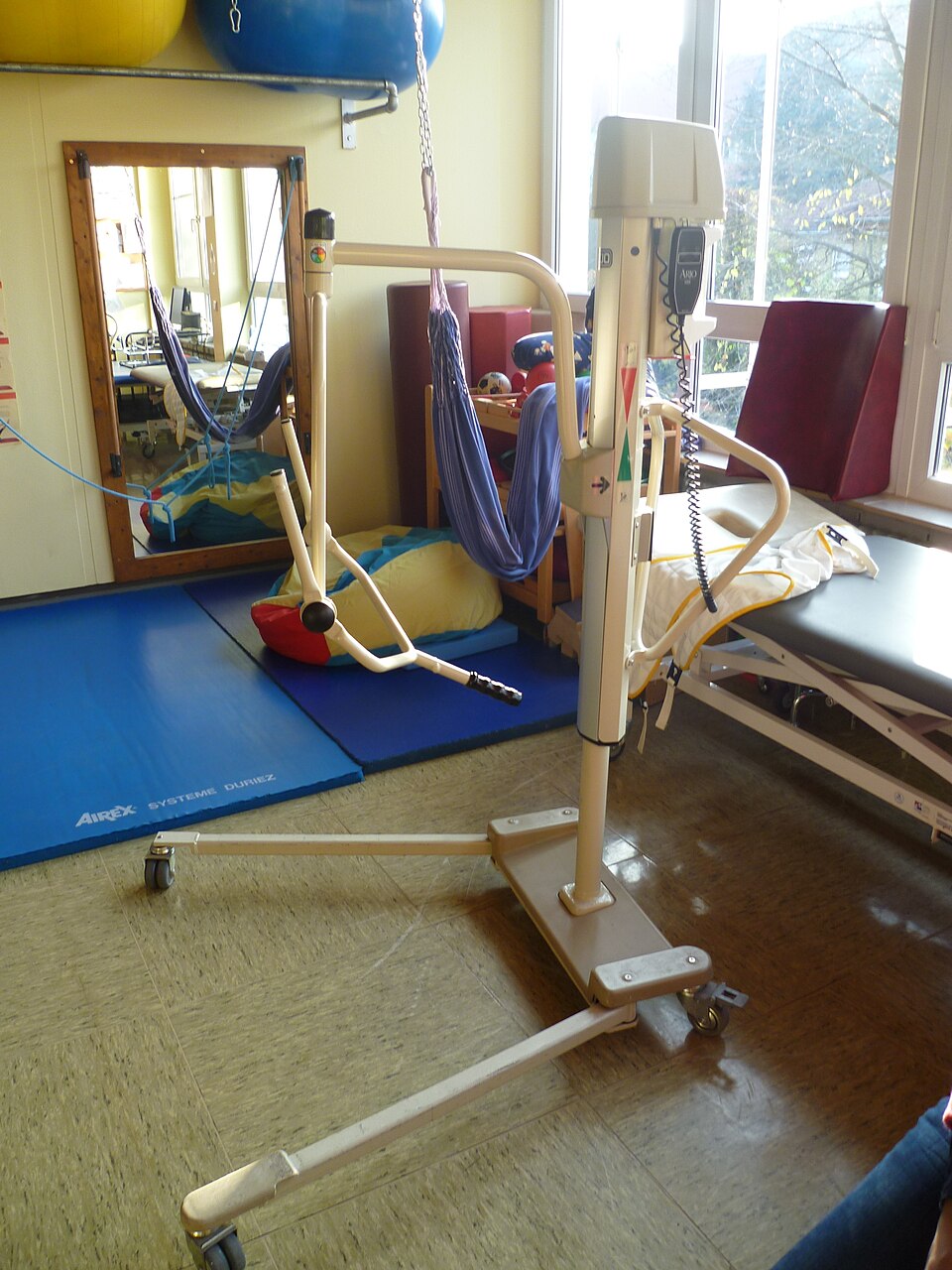

The structure is a Mast & Boom — a vertical column and a swinging boom — standing on a wheeled Wheeled Base. A Linear Actuator between mast and boom does the lifting, and a Spreader Bar hangs from the boom tip to carry the sling. Power comes from a removable Battery Pack, the caregiver works a Hand Control pendant, and a Emergency Lowering system guarantees the patient can always be brought down.

How it works

Lifting force comes from the Linear Actuator, a self-locking jack built around a Ball Screw. The Actuator Motor — a geared DC motor — turns the screw, and because a ball screw will not back-drive under load, the boom holds its height the instant the motor stops, with no brake needed. The actuator pushes between the Mast Column and the Boom Arm, swinging the boom up about its pivot; Limit Switch pairs cut the motor at the ends of travel.
