Overview

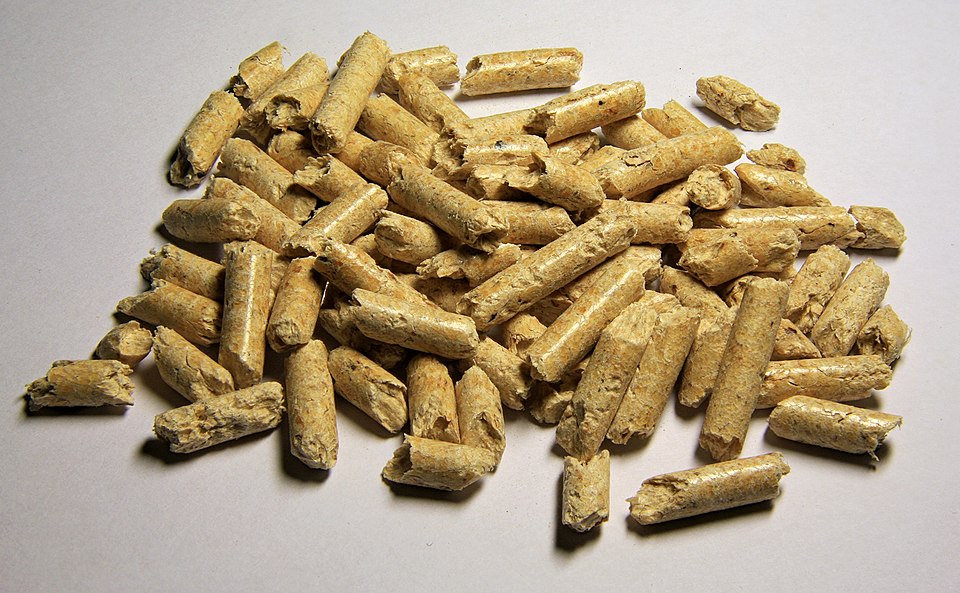

A pellet mill compresses loose, milled material — compound animal feed, wood sawdust, straw, sunflower husk — into dense cylindrical pellets by forcing it through holes in a hardened steel die. Pellets are easier to convey, store and dose than meal, and for fuel they roughly triple the bulk energy density of raw sawdust. The ring-die design described here dominates industrial production; small flat-die machines exist but serve hobby and farm scale.

The production chain inside the machine is short: the Screw Feeder meters raw mash into the Steam Conditioner, where steam softens it; the conditioned mash falls into the Die and Roller Assembly chamber, is extruded through the rotating Ring Die, and the strands are cut to length by the Pellet Knife blades before sliding down the Discharge Chute to a cooler.

How it works

The geometry is inverted from what intuition suggests: the die rotates and the rollers stand still. The Main Drive Motor drives the hollow Quill through a two-stage helical Transmission, and the die is clamped to the quill flange by the Die Clamp Ring. Inside the spinning ring, two or three Press Roller shells are mounted on the stationary Main Shaft Assembly. As the die turns, mash carried around the inner face is dragged into the converging nip between die and roller. Pressure in the nip reaches 100–250 MPa, forcing material into the die holes.

Each hole is a small extrusion press. Friction along the hole wall generates the back-pressure that densifies the pellet; the ratio of effective hole length to diameter (L/D, typically 8–13) is the single most important die parameter. Too short and pellets crumble; too long and the mill chokes or burns excess power. Heat from friction raises the pellet to 80–95 °C, which in feed gelatinizes starch and in wood softens lignin — both act as the binder that holds the pellet together once cooled.

Roller-to-die gap is set by rotating each eccentric Roller Shaft with the Roller Adjuster; the working gap is 0.1–0.3 mm, close enough to grip the mash layer but never metal-to-metal. A Shear Pin in the drive line fractures if tramp metal wedges between roller and die, sacrificing a cheap pin instead of a die that can cost a five-figure sum. Upstream, the Magnet Trap catches most tramp iron before it gets that far.

Conditioning

Pellet quality is decided mostly before the die. In the Conditioner Barrel, the Paddle Shaft folds the mash through live steam admitted by the Steam Control Valve. Steam does two jobs: it adds 2–5 % moisture as a lubricant, and it pre-heats the mash to 60–90 °C so the die does less thermal work. The Temperature Probe closes the loop on steam flow. Feed mills hold residence times of 20–60 seconds; longer conditioning (or double-pass conditioners) improves pellet durability and hygienization of feed. Wood pelleting often runs with little or no steam, relying instead on tight moisture control of the infeed at 10–14 %.

Control and protection

The Control System PLC runs the mill on a load-following loop: it watches main-motor current and trims the Feeder Motor speed so the motor sits at 90–95 % of rated load — maximum throughput without choking. If load spikes, feed is cut back; if the die chamber chokes solid, the mill trips and the operator clears the chamber through the interlocked Die Access Door. Roller-slip detection (rollers stop turning because the mash layer is too thin) is handled on newer machines by speed pickups on the roller shells.

Bearings live in a hostile place — hot, loaded, and centimetres from abrasive mash — so the Lubrication System system doses high-temperature grease through drilled passages in the main shaft via the Grease Pump every few minutes of operation, while a separate Gearbox Oil Pump circulates gearbox oil through the Oil Cooler.

Wear parts and economics

Dies and roller shells are consumables. A feed-mill die lasts 800–3,000 hours; abrasive biomass can halve that. Wear opens the hole inlets, lowering compression until durability fails, at which point the die is replaced or, once, re-drilled. Specific energy consumption — 15–60 kWh/t for feed, up to 120 kWh/t for hardwood — plus die amortization dominate operating cost, which is why mills run load-maximized and why conditioning steam, cheap compared to electricity, is used aggressively in feed plants.
