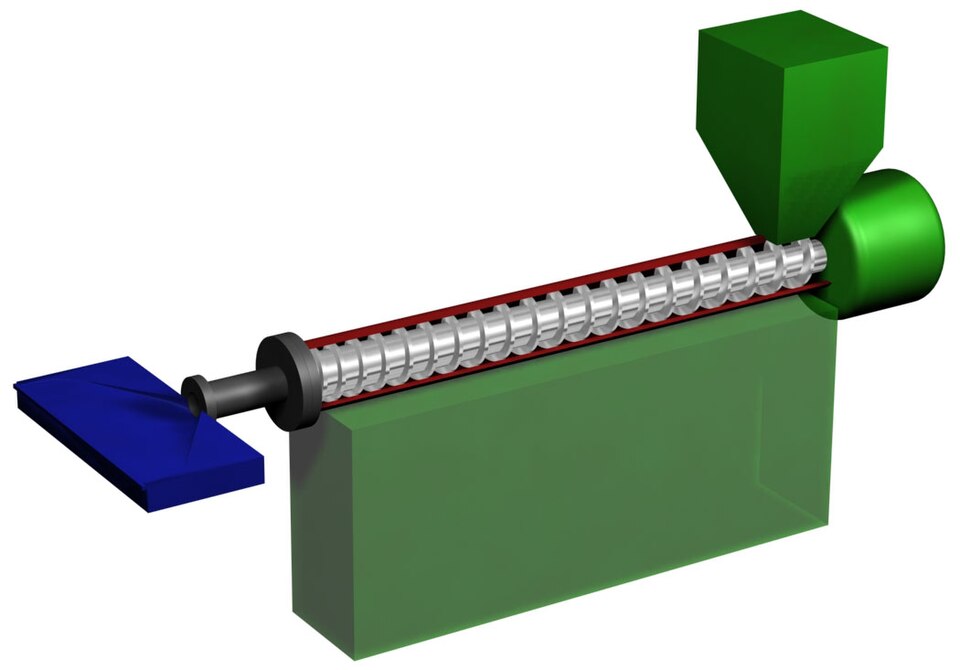

A plastic extruder is the workhorse of thermoplastic processing, melting solid resin pellets and continuously forcing the viscous melt through a shaped die to form films, sheets, profiles, fibers, or granules. Single-screw extruders are the most common industrial design: the Barrel & Screw Assembly is the heart, a rotating auger inside a heated cylindrical barrel that both heats and propels the plastic forward in a single motion.

Extrusion differs from injection molding because the process is continuous: material enters the hopper at one end, emerges as a finished or semi-finished product at the other, with no cycle time per part. This makes it ideal for high-volume production of uniform cross-sections — plastic film for packaging, extruded profiles for building, tubing, and custom shapes. The machine is also the basis for plastic compounding (mixing polymers and additives) and recycled-plastic regrinding (pelletizing scrap).

Drive and transmission

The Drive Motor, typically 7.5–22 kW three-phase AC, delivers power to the Drive Gearbox, a sealed parallel-shaft gearbox with a 10:1 to 50:1 reduction ratio. This converts high-speed motor rotation (1450 or 1750 RPM) into the low-speed, high-torque output needed to turn the screw against the resistance of hot, viscous plastic. The gearbox lubricant is circulated through oil seals to cool the Gearbox Output Shaft; large machines add a separate oil cooler. A Soft Starter or variable-frequency drive (VFD) allows the operator to ramp motor current on startup, reducing mechanical shock and extending gearbox life.

Heating and melting

The Barrel & Screw Assembly is organized into three functional zones: the feed section (low pitch screw), the compression section (tapered pitch), and the metering section (constant, tight pitch). Solid pellets enter the Hopper, which may include a drying heater to remove moisture before melting. As the screw rotates, pellets are pushed forward and up against the barrel wall; simultaneously, Heating Band elements wrapped around the barrel supply 2–4 kW per zone. The combination of mechanical friction (shear heating) and electrical heat melts the polymer into a flowing liquid. Thermocouple sensors embedded in the barrel feed Temperature Controller modules that maintain zone temperature within ±5 °C using proportional-integral-derivative (PID) logic and solid-state relays (SSR).

The melt is forced toward the die head, where a Breaker Plate (a perforated steel disk) acts as a back-pressure barrier. It stabilizes the melt, filters out any particulate, and holds back the screw rotation, ensuring steady pressure.

Die and shaping

The Die Head Assembly is where the melt is forced into its final shape. A Die Insert is a precision-machined cavity that imparts the desired profile (flat for film, circular for fiber, U-channel for profile extrusion, etc.). The melt exits under 20–80 MPa of pressure, and the Die Adapter smooths the flow from barrel diameter to die cavity diameter. The die is often heated above the barrel temperature to prevent premature cooling; a dedicated Die Heater maintains 5–20 °C above melt temperature.

After extrusion, the hot plastic emerges and is immediately cooled. For film extrusion, a chill roller with water circulation cools and calendars the web to set thickness and smoothness. For fiber, the strand is pulled through an air quench and spooled. For profiles, a water bath or air knife cools the shape before it is cut to length or wound.

Control and monitoring

The Control Panel houses the Controller HMI operator interface, power distribution, and zone heating relays. Modern extruders allow the operator to set the target temperature in each zone, monitor screw RPM and melt pressure via a transducer in the die, and adjust speed via Soft Starter current ramps. Faults (over-temperature, under-temperature, low melt pressure, motor overload) trigger alarms on the display and shut down the machine to prevent product damage.

The machine Support Frame is a welded steel structure that aligns the barrel, gearbox, and motor for concentric, vibration-free operation. Barrel Support Block blocks with precision-bored journals carry the screw shaft; the Motor Mount Plate plate bolts to the gearbox and allows lateral shimming for perfect motor-to-gearbox alignment.

Product variants

Extruder designs vary by end-use. Lab and pilot-plant machines use 20–30 mm screws at 50–120 RPM with 5–15 kW motors, producing 10–50 kg/h. Production-class machines run 50–90 mm screws at 20–100 RPM with 15–45 kW motors, delivering 100–500 kg/h. Specialty designs include twin-screw extruders (for blending and compounding), vented extruders (with a vacuum port to remove volatiles), and cooled-barrel extruders (for heat-sensitive polymers like PVC). All share the same fundamental screw-barrel-heater-die architecture.
