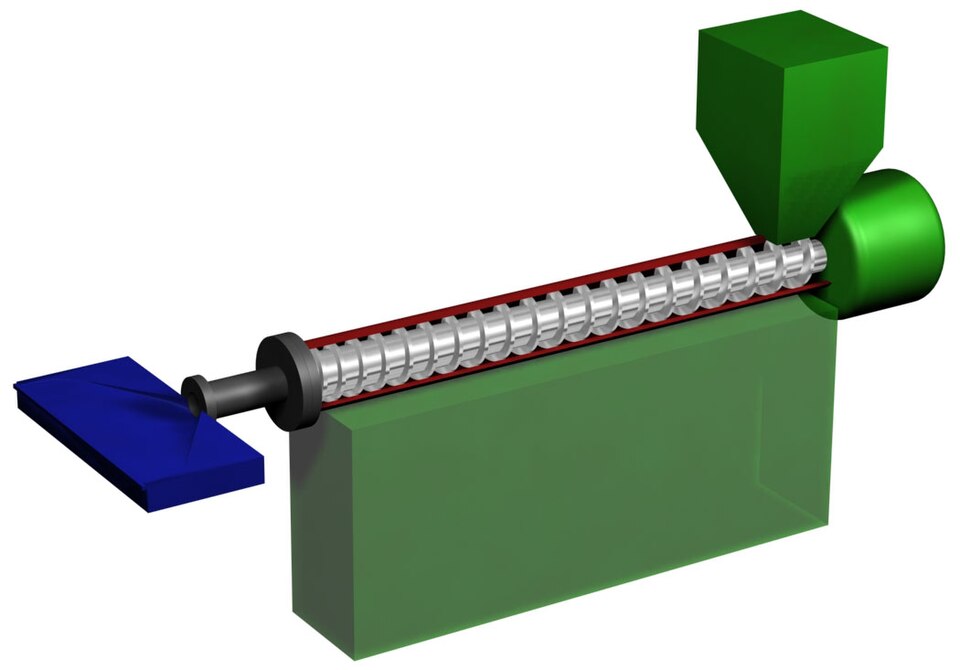

Pipe Extrusion Line Product

Overview

Pipe extrusion is a high-volume, continuous process producing plastic tubing for water supply, drainage, irrigation, and industrial applications. A plastic mandrel (floating center pin) is suspended inside the die cavity, defining the inner bore, while the die outer surface defines the outer diameter. Molten plastic flows around the mandrel in an annular (ring-shaped) gap, emerging as a hollow tube.

The pipe immediately enters a vacuum-sizing tank where a precision ring constricts the outer diameter and vacuum pulls the inner surface against the mandrel, ensuring dimensional accuracy and circularity. Modern pipe extrusion lines produce 100–500 kg/hour of finished pipe, with diameters from 10 mm (small tubing) to 160+ mm (large ductwork), and wall thickness controlled to within ±5%.

Process Flow

Plastic Melting & Extrusion

Plastic resin (PVC, HDPE, or PP) is melted in a 40–90 mm extruder screw operating at 20–100 RPM. Melt temperature for typical polymers:

• PVC: 180–200 °C (heat-sensitive; over 220 °C causes degradation).
• HDPE: 210–230 °C.
• PP: 220–240 °C.

Melt pressure at die inlet: typically 50–80 bar. The melt is pushed into the die body, which has internal passages distributing flow around the suspended mandrel.

Die & Mandrel Alignment

The [[plastic-pipe-extrusion-line-pipe-die|pipe die]] is precision-machined to form an annular cavity: outer diameter defined by die cavity walls, inner diameter defined by mandrel. The gap between outer and mandrel typically ranges 1.5–8 mm depending on desired wall thickness.

The [[plastic-pipe-extrusion-line-mandrel|mandrel]] (a hardened steel rod, 4–50 mm diameter) must be suspended concentrically in the die cavity. Misalignment or centering errors result in non-circular pipe or uneven wall thickness. Mandrels are typically supported by:

• Suspension pins: Three or four small pins (1–2 mm diameter) suspending the mandrel from the die body. These create small "welds" or seams on the inside pipe surface where pins attach.
• Leaf springs: For very small pipes, leaf springs may suspension the mandrel.

The pipes with suspension welds are considered standard in industrial applications (water, sewage); they have no structural significance because the weld bonds fully during plastic flow, and the very small size (0.5–1 mm diameter) contributes negligibly to the pipe structure.

Pipe Emergence & Initial Cooling

The extruded pipe (50–80 °C above room temperature, still soft) emerges from the die. Gravity pulls it downward; a guide tube may support the first 0.5–1 m of pipe to prevent sagging or misalignment.

Initial air cooling (ambient or fan-forced) begins solidifying the outer surface while the interior is still warm and deformable. This is the critical window for the next step: vacuum sizing.

Vacuum Sizing Tank

The hot pipe enters a water-filled [[plastic-pipe-extrusion-line-vacuum-sizing-tank|vacuum sizing tank]]. A precision aluminum [[plastic-pipe-extrusion-line-sizing-ring|sizing ring]] (typically within ±0.1 mm tolerance of target outer diameter) surrounds the pipe. When vacuum is applied (0.5–0.8 bar below atmospheric), the ring pulls the pipe's outer surface inward to a precise diameter.

Simultaneously, the mandrel (still hot and slightly expanded) is slowly retracted or stays stationary inside the pipe, defining the inner diameter. The vacuum and cooling water (15–30 °C circulating through the tank) work together:

• Vacuum: Pulls outer diameter inward to ring dimension.
• Cooling water: Solidifies the pipe, "locking in" the final dimensions.

Sizing time: 15–40 seconds depending on wall thickness and cooling rate. Over-sizing (too much vacuum or too long) can cause the pipe to bond too tightly to the ring, requiring forced separation; under-sizing leaves the pipe slightly out-of-round or non-circular.

Haul-Off & Tension

After exiting the sizing tank, the cooled pipe (now solid, ~30–40 °C) is gripped by an upper and lower [[plastic-pipe-extrusion-line-haul-pinch-rollers|pinch-roller mechanism]]. A variable-speed motor (3–10 kW) pulls the pipe at constant speed (3–30 m/min depending on diameter and wall thickness).

Load-cell feedback maintains constant pulling tension (typically 200–1000 N depending on pipe size), preventing over-tension (which would create internal stress) or under-tension (which would cause slipping or deformation).

Automated Length Cutting

A bandsaw or rotary cutter (1–3 kW) severs the pipe at customer-specified lengths (typically 1, 2, 5, or 6 meters are standard). A [[plastic-pipe-extrusion-line-cutter-stop|programmable stop pin]] positions the pipe, and the blade cuts cleanly without splintering or deformation.

Cut length tolerance: ±2–5 mm typical; ±1 mm for premium cuts.

Post-Cut Handling

Cut pipes are automatically discharged onto a collection conveyor, stacked in bundles, or coiled (for flexible small-diameter pipes) and labeled with product information (diameter, wall, pressure rating, certification marks).

Materials & Applications

PVC (Polyvinyl Chloride)

Most common pipe material worldwide. Rigid PVC is used for:

• Potable water: PVC pipe is inert, non-toxic, and approved for drinking water applications in most countries. Withstands pressures 6–25 bar depending on schedule/wall thickness. Lifespan 50+ years underground.
• Sewage & drainage: Non-pressurized gravity flow; PVC resists corrosion and biofouling better than concrete or cast iron.
• Electrical conduit: Non-conductive, protects cable from damage.

PVC pipe is typically pressure-rated per ISO 1452 or IEC 952 (Europe) or ANSI/ASTM D2241 (USA). Wall thickness increases with diameter and pressure rating; a 20 mm, 10 bar PVC pipe has ~2 mm wall; a 160 mm, 16 bar pipe has ~8 mm wall.

Cost: ~$1.5–3/kg resin; finished pipe ~$0.50–$2/meter depending on diameter.

HDPE (High-Density Polyethylene)

Flexible HDPE pipe is used for:

• Irrigation & agricultural: Drip irrigation tubing, main supply lines. Flexes easily, coils onto spools, and resists UV (with carbon-black additive).
• Gas distribution: Natural gas and LP gas service lines; HDPE's flexibility and ease of installation make it preferred over copper.
• Water supply: HDPE is FDA-approved for potable water, lighter and more corrosion-resistant than metal pipe.

HDPE pipe is typically extruded in coils (50–500 m per coil) for small diameters (<50 mm) and straight lengths for larger diameters.

Cost: ~$1.5–2.5/kg resin; finished pipe ~$0.3–$1.5/meter.

PP (Polypropylene)

Heat-resistant, chemical-resistant. Used for:

• Hot water distribution: Service temperature to 60–80 °C (higher than PVC or HDPE).
• Chemical & industrial: Resistant to many solvents and acids.
• Compressed air: Light-duty pneumatic piping.

Cost: ~$2–4/kg resin; finished pipe ~$1–$3/meter.

PEX (Cross-Linked Polyethylene)

Flexible, cross-linked polyethylene. Radiant floor heating, hot-water supply, plumbing. PEX is typically produced by extrusion + post-extrusion chemical or radiation cross-linking (not shown in this basic extrusion line; specialized equipment required). Cost ~$3–5/kg; finished tubing ~$0.5–$2/meter.

Design & Specification

Pressure Rating

Plastic pipes are rated for water pressure based on wall thickness, material, and operating temperature. Typical ratings:

• 4 bar: Gravity flow (non-pressurized), large diameters.
• 6–10 bar: Light-duty water lines, large diameters (50–160 mm).
• 10–16 bar: Standard potable water supply, medium diameters.
• 16–25 bar: High-pressure mains, smaller diameters, thick walls.

ISO 4427 and ISO 1452 define pressure classes and required wall thickness for each diameter and material. A quick rule of thumb: pressure rating × diameter = constant (roughly); doubling the pressure requires doubling the wall thickness.

Dimensional Tolerance

ISO 4426 and ISO 1452 specify:

• Outer diameter: ±0.5–1% tolerance (e.g., ±0.1 mm on a 20 mm pipe).
• Wall thickness: ±0.1–0.2 mm.
• Circularity: Out-of-round tolerance ≤0.3 mm typical.

Achieving these tolerances requires:

• Precision die (±0.05 mm machining tolerance).
• Accurate mandrel positioning (±0.1 mm).
• Vacuum sizing ring (±0.1 mm tolerance).
• Tight control of water temperature, vacuum level, and haul-off speed.

Operational Challenges

Mandrel Floating or Wobbling

If the mandrel centering is poor, the annular gap becomes uneven: one side of the pipe develops thin walls, the other thick. Results in non-circular pipe or rupture during pressure testing. Fixed by:

• Improving mandrel suspension (add pins or use better spring).
• Checking die alignment and straightness.
• Reducing extrusion pressure and temperature to reduce hydraulic forces on mandrel.

Internal Seam or Weld Line

Where mandrel support pins meet the die, plastic flow splits and rejoins, creating weak seam. This is unavoidable in conventional designs but is typically less than 0.5 mm diameter and causes no structural problem in normal use. Premium pipe applications (submarine/offshore, high-pressure) employ special dies or mandrel designs (e.g., submarine plug mandrels) to minimize seam size.

Pipe Collapse or Buckling

If the mandrel is retracted too quickly or vacuum is released too early, the soft inner pipe surface can collapse inward, resulting in an egg-shaped or flat pipe. Fixed by:

• Keeping mandrel in position longer (or retracting slowly if designed to retract).
• Applying vacuum until pipe is fully solidified (30–40 seconds).
• Adjusting cooling water flow to ensure even solidification inside and out.

Opacity or Stress-Whitening

Rapid cooling or high-tension haul-off can introduce stress, causing the pipe to appear hazy or develop white stress-lines. Indicates internal micro-cracking or residual stress. Fixed by:

• Reducing haul-off tension 10–20%.
• Increasing cooling water temperature (slower, more uniform cooling).
• Reducing extrusion speed (lower residence time reduces degradation risk).

Dimensional Drift

Over hours or shifts, the pipe diameter may creep larger or smaller. Causes: extruder temperature drift, changing mandrel temperature (affecting its expansion), or vacuum level drift. Fixed by:

• Tight temperature control (±2 °C).
• Load-cell feedback on vacuum and tension.
• Real-time laser diameter gauge with closed-loop haul-off speed control.

Quality Assurance

Hydrostat/Burst Testing

Random samples are pressurized until rupture to verify burst pressure exceeds rating by safety factor (typically 2–3×). A 10 bar PVC pipe must withstand ~20–30 bar burst pressure.

Dimensional Sampling

Every 100–200 m of production: cut sample, cool, measure OD, wall thickness, and circularity with calipers or digital gauges.

Visual Inspection

Check for surface defects, discoloration (indicates degradation), seam integrity, and cut quality (no splintering, no deformation at cut edge).

Certification

Most pipes are certified per ISO 4427, ISO 1452, or equivalent national standards (ANSI/ASTM in USA, BS in UK). Certification includes mill test data (pressure rating, materials, dimensions).

Economics

A typical mid-range pipe extrusion line (150 kg/h capacity) costs $150k–$300k. Sizing mold tooling and mandrel suspension add $10k–$30k per diameter.

Production cost for 1 m of PVC pipe (50 mm OD, 4 mm wall, ~45 g/m):

• Material (PVC, $2/kg): ~$0.09
• Energy (extrusion, cooling, cutting): ~$0.03
• Labor + depreciation: ~$0.05
• Total: ~$0.17/meter (wholesale ~$0.25/m; retail $0.50–$1.00/m)

Large integrated producers (Wavin, Pipelife, Georg Fischer) operate 24/7 dedicated lines with automated unloading, achieving cost <$0.15/meter through economies of scale.

Sustainability & Recycling

PVC pipe scrap (trim, failed parts, old pipe) is recyclable. Post-consumer PVC is re-pelletized and can be blended (up to 20–30%) with virgin PVC for non-potable applications (sewage, drainage). Recycled PVC maintains mechanical properties but is typically more opaque and slightly weaker, so is not used for potable water.

Some manufacturers use PVC regrind at 10–15% of blend for cost reduction without sacrificing performance.
