Polar Icebreaker

Overview

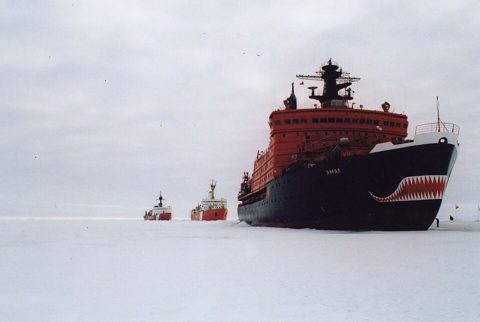

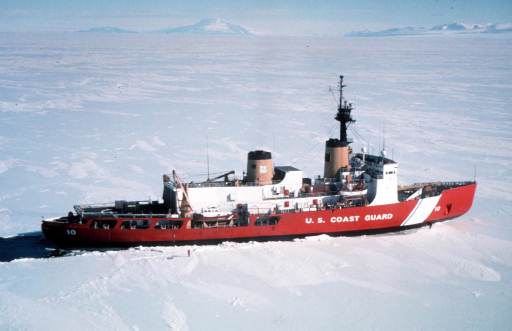

A heavy polar icebreaker is a 23,000 t ship built to break 2.5 m of level ice continuously and to survive ramming multi-year ridges several times that thick. Its work-breakdown runs to roughly 700,000 discrete parts, the same order as the one-million-part figure General Dynamics quotes for a Virginia-class submarine, and the count concentrates where the ice loads are: Polar Class 2 scantlings put frames on roughly 400 mm centres through the ice belt, so every Ice-Strengthened Hull Block carries about twice the stiffeners, brackets and weld joints of an equivalent open-water block.

The configuration is diesel-electric throughout. Four engines generate, three Azimuthing Propulsors propel, and nothing mechanical connects them, which is what lets the ship put full torque on the propellers at zero speed, the condition icebreaking lives in.

Hull

The hull form does the first part of the job: a spoon bow with a shallow stem angle rides up onto the ice sheet and breaks it in flexure under the ship's weight, which takes an order of magnitude less force than crushing it. The structure that survives this is built from about 70 Ice-Strengthened Hull Blocks. Ice-belt strakes are Hull / Ice-Belt Plates of EH50 steel up to 45 mm thick, backed by some 350 Ice Frames per block sized for local loads of several meganewtons per metre. Around 520 Structural Brackets tie each block's frames to its stringers and decks, and roughly 7,600 Weld Seams join it together, full-penetration and individually inspected in the ice belt, since a winter in the pack will find any defective seam. Hull structure alone accounts for about 600,000 of the ship's parts.

Powerplant

The Diesel-Electric Powerplant follows power-station practice: four Main Diesel Generator Sets, 16-cylinder medium-speed diesels of about 8.7 MW each, feed split 11 kV Main Switchboards so that no single fault can leave the ship dead in the ice. Each genset is a deep assembly in itself, sixteen Cylinder Units and two Turbochargers served by a Fuel Injection System, a Lube-Oil System and an Engine Cooling Module of pumps, coolers and filters. Three water-cooled Propulsion Frequency Converter frequency converters, each built around 36 IGBT Power Module power stacks, turn switchboard power into variable-frequency drive for the pod motors, with six Transformers handling propulsion and hotel voltages.

Propulsion

The three Azimuthing Propulsors carry their electric motors inside submerged pods that steer through 360°. Full azimuthing changes how the ship operates: running astern, the pods mill ice with their Propeller Blades, bolted stainless castings, individually replaceable underwater, and flush the broken channel clear, which is how the vessel breaks out of heavy ridges and turns in its own length in the pack. Each pod hangs from a Slewing Bearing several metres in diameter that passes thrust and ice-milling torque into the hull, rotated by a Azimuth Hydraulic Unit unit driving the Azimuth Ring Gear and sealed by a Pod Lubrication System that keeps seawater out of the motor compartment. Each pod is held down by 240 Slewing-Ring Bolts, with the blades carried on Blade Bolt Set sets.

Against ridges too thick for continuous breaking, the ship rams: backing off several lengths, driving the bow up onto the ridge at 6–8 kn, and letting 23,000 t of displacement do the rest. The cycle repeats until the ridge fails, and the bow structure is scantled for thousands of such impacts over the hull's life.

When friction rather than strength stops the ship, the Heeling System frees it: two reversible Heeling Pumps shove about 200 t of water between port and starboard wing tanks in under 30 seconds, rocking the hull to break the ice's grip. A pair of Bubbler Compressors supports the same fight continuously, blowing air along the shell to lubricate the hull-ice interface.

Science and accommodation

Aft, the Science & Cargo Decks is laid out as a working platform: a 20 t Stern A-Frame over the stern for coring and ROV work, two 15 t Knuckle-Boom Cranes, four Research Winches spooling up to 10,000 m of wire, and 60 Container Sockets that take containerised Laboratory Modules and polar-station resupply cargo interchangeably. The Accommodation block houses around 100 people for 90-day deployments in 60 prefabricated Cabin Modules, served by HVAC Air Handlers that preheat −40 °C outside air through glycol coils.

Electrical and automation

The Electrical & Automation installation runs about 380 km of cable in 14,000 Cable Runs on 21,000 Cable Cleats. Twelve Automation Cabinets distribute machinery control so the plant runs with one engineer on watch, and the bridge carries two Bridge Consoles, one facing forward, one aft, because a pod-driven icebreaker spends real working time going stern-first. Auxiliary systems draw seawater through ice-clog-resistant sea bays and add another 4,800 Pipe Spools, 1,100 System Valves and 15,600 Flange Bolt Set Items to the total.
