Powder Coating System Product

Overview

Powder coating is a finishing process in which a finely divided dry powder paint is electrostatically sprayed onto a grounded workpiece, then heat-cured in an oven to form a durable, tough surface. Compared to liquid paint, powder coating offers superior coverage, no solvents, excellent impact and corrosion resistance, and high transfer efficiency (60–80% of sprayed powder adheres to the part; the remainder is recovered and reused). The process is widely used in automotive, appliances, furniture, aerospace, and industrial equipment manufacturing.

The Electrostatic Spray Gun imparts an electrostatic charge (50–100 kV) to powder particles, which are attracted to the grounded Spray Booth Chamber and part. The Hopper & Feed System supplies metered dry powder. The Overspray Recovery recycles overspray. The Curing Oven cross-links the resin binder. The Control Panel & Automation orchestrates the process, and the Exhaust Filtration cleans the air before discharge.

How it works

A part—perhaps a metal gate, drawer box, or appliance chassis—is cleaned and placed in the Spray Booth Chamber. It is electrically grounded by a conductive contact (a hanging hook or placement on a conductive floor). The Hopper & Feed System pressurizes to 2–4 bar, and a powder metering pump supplies a steady stream (50–500 g/min, adjustable) through the hose to the Electrostatic Spray Gun.

The operator aims the Gun Body at the part and pulls the trigger. Three things happen simultaneously:

1. The Hopper Solenoid Valve pressurizes the hopper
2. The Needle Valve opens, allowing powder to flow toward the nozzle
3. The High-Voltage Supply energizes the High-Voltage Cap—an electrode ring around the spray nozzle—to a high voltage (typically 50–100 kV DC relative to ground)

The flowing powder is atomized into fine particles by compressed air and exits the Powder Nozzle Tip. As the particles exit, they are exposed to the high-voltage field created between the electrode cap and the grounded part. The particles acquire a charge (negative, typically —30 to —100 µC/g), creating a powerful electrostatic attraction between the powder and the conductive part.

This electrostatic effect does several things:

• Improves coverage: The charged particles are drawn toward the part even if sprayed across its face at an angle; they follow the electric field lines.
• Reduces overspray: Far more powder adheres to the target than bounces away compared to conventional liquid spray.
• Reaches crevices: Charged particles wrap around edges and penetrate into recesses, coating the interior of box structures.
• Builds uniform thickness: The electrostatic effect naturally slows the deposition as the powder layer thickens, reaching equilibrium thickness of 75–150 µm.

The Floor Grating and Booth Wall Panel are perforated to allow air circulation. Overspray powder—particles that miss the part—falls through the grating into the Collection Chamber. The Exhaust Fan pulls air from the booth through the Filter Cartridge, trapping fine powder. Larger recovered particles pass through a Separator Cyclone, which further refines the reusable fraction.

Clean recovered powder is fed back to the Hopper & Feed System via the Recycle Auger. Recovery efficiency is typically 60–80%, meaning only 20–40% of overspray is discarded; the rest cycles back, reducing powder consumption and cost.

Once coated, the part is carefully transferred to the Curing Oven. The oven is a large insulated chamber with a conveyor or manual entry/exit. The Heating Element maintain a setpoint temperature—typically 180–220 °C depending on the powder formulation. The Circulation Fan circulates hot air uniformly.

Heat causes two critical reactions in the powder:

1. Melting: The thermoplastic or thermosetting resin binder softens and flows, filling gaps in the powder coating and forming a continuous film.
2. Cross-linking: In thermoset powders (polyester, polyurethane, epoxy), heat activates a catalyst or latent hardener, causing chemical cross-linking between resin molecules. This creates a three-dimensional network with outstanding hardness, chemical resistance, and durability.

The Temperature Controller monitor the part temperature (via thermocouples if large or via oven air temperature for convection ovens) and maintain the cure temperature profile. Typical cure times are 10–30 minutes at peak temperature. Time and temperature are precisely controlled; too short or too cool = incomplete cure and inferior properties; too hot or too long = resin degradation and discoloration.

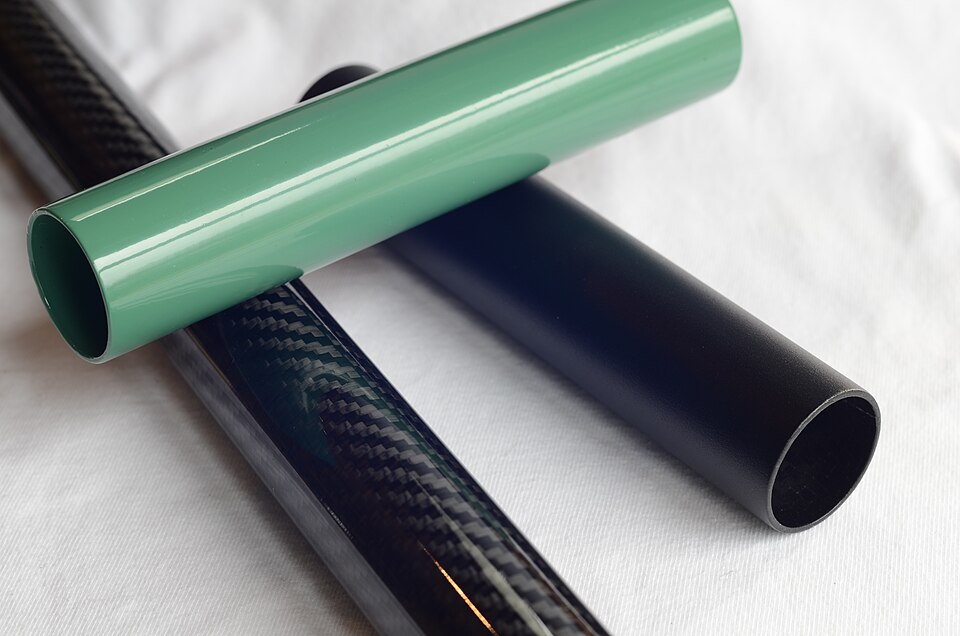

After curing, the part is removed and cooled naturally in air or with cooling fans. The final cured coating is hard, glossy or matte (depending on formulation), and mechanically and chemically robust.

Powder coating excels at:

• High-volume production (automotive, appliances)
• Complex shapes and recessed areas (better coverage than liquid paint)
• Durability in outdoor or harsh environments (superior corrosion resistance)
• Color and finish control (no sag, drip, or uneven flow)
• Environmental compliance (zero VOC, 100% solids by weight)

The only limitation is that powder coating requires conductive parts or a pre-treatment to make non-conductors (plastics, ceramics) sprayable. For most metal and conductive composite fabrication, powder coating is the dominant finishing method in modern manufacturing.
