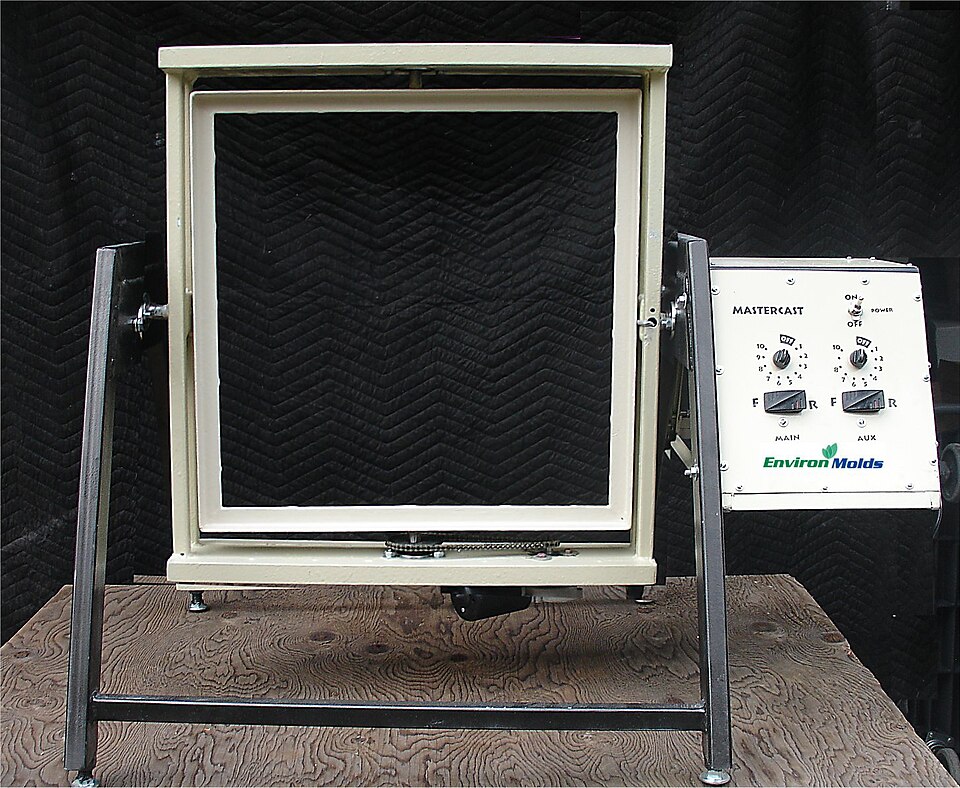

Rotational Molding Machine Product

Overview

Rotational molding (roto-molding or rotomolding) is a low-pressure, slow-cycle plastic forming process ideal for large, hollow parts with uniform wall thickness and minimal internal stress. A measured amount of plastic powder is loaded into a hollow two-piece mold, the mold is heated while rotating on two perpendicular axes (primary: vertical, secondary: tilting arms), distributing molten plastic uniformly across all internal surfaces. After cooling, the solid part is removed.

Roto-molding excels at creating seamless, stress-free parts (automotive fuel tanks, pontoons, toys) but is slow—cycle times 20–60 minutes—making it uneconomical for high-volume commodity products.

Rotational Molding Process

Loading & Charging

Plastic resin (typically LDPE or HDPE powder, or liquid plastisol for PVC) is accurately weighed (±2–5%) and loaded into the open mold cavity. A typical charge might be 2–5 kg of powder. The mold halves are then clamped together.

Oven Heating (Primary Rotation)

The carousel (typically 4–6 arm stations) rotates about a vertical axis at 4–10 RPM while slowly passing through a heated oven (200–260 °C depending on material). As the mold rotates, molten plastic adheres to the inner mold surface through centrifugal force and gravity, gradually building up a uniform layer. Primary rotation ensures symmetrical distribution around the vertical axis.

Simultaneously, the mold arm tilts (secondary axis) to roll the mold 30–60° forward and backward. This tilting ensures plastic reaches the corners and crevices of complex-shaped cavities.

Duration: typically 5–15 minutes of heating, depending on part thickness and wall design. The longer the oven time, the thicker the part walls (by continuous adherence of molten plastic).

Cooling (Primary Rotation Continues)

After exiting the oven, the carousel moves to a cooling station where ambient air (or forced-air fans) cools the mold to ~50–80 °C. Primary rotation continues at slow speed (1–2 RPM) to prevent uneven cooling and warping. Cooling time: 10–30 minutes depending on part mass and ambient temperature.

Ejection

Once cooled sufficiently, the mold is transferred to an ejection station where a mechanical stripper or pneumatic actuator opens the mold halves. The solid part is then removed manually (for large parts) or automatically (for smaller parts with ejector pins).

Mold Preparation

The empty mold is cleaned of residual plastic or powder, sprayed with a mold release agent (typically a silicone or PTFE-based spray), and returned to the loading station for the next cycle.

Wall Thickness Control

Unlike injection or blow molding, rotational molding wall thickness is controlled by the amount of plastic powder loaded and oven dwell time:

• Light charge (1–2 kg): 1–2 mm walls, light, flexible parts (toys).
• Standard charge (2–5 kg): 2–4 mm walls, typical tanks and containers.
• Heavy charge (5–10 kg): 4–8 mm walls, rugged, high-stiffness parts (bumpers, armor).

Uniform wall distribution is one of roto-molding's major advantages: unlike extrusion blow or injection molding, which create thin spots and thick spots, roto-molding achieves remarkably uniform walls because plastic adheres equally from all directions.

Materials

LDPE (Low-Density Polyethylene)

Most common roto-molding material. Melting point ~120–140 °C; oven temperature ~200–210 °C. Produces flexible, impact-resistant parts. Cost ~$1.5–2.5/kg.

HDPE (High-Density Polyethylene)

Higher stiffness (~2× flexural modulus vs. LDPE). Oven temperature ~220–240 °C. Better chemical resistance, lower density. Cost ~$2–3/kg.

PP (Polypropylene)

High melting point (~165 °C); oven temperature ~250–260 °C (highest for any commodity thermoplastic). Excellent chemical resistance, lower density than PE. Cost ~$2–4/kg.

Nylon (PA6, PA12)

Excellent wear resistance and strength. Higher processing temperature (~300 °C) requires specialized equipment. Cost ~$5–8/kg (2–4× PE cost). Used for bearings, fuel tanks, high-performance components.

PVC Plastisol

Liquid PVC (not powder) used for flexible, weather-resistant parts (pool toys, boots, weather seals). Cured by heating (gelation) at 160–200 °C. Cost ~$3–5/kg.

Mold Design

Roto-molding molds must meet strict requirements:

Draft & Undercuts

Minimal draft (0.5–1°) is sufficient due to low ejection stress. However, severe undercuts must be avoided because the part cannot be ejected from the mold. Complex shapes with undercuts require split molds or collapsible cores.

Cooling Path

Unlike injection-molded molds, cooling is passive (ambient air). Molds are cast aluminum or ductile iron (~1–2 inches thick) for reasonable heat transfer. Water cooling galleries are rarely used because roto-molds cool slowly anyway.

Vent & Trap Ports

The mold must be sealed to prevent powder escape during rotation but must vent trapped air during heating. Small vent holes (~1–2 mm) are drilled and fitted with one-way valves (flapper or ball check) allowing air to escape without plastic leakage.

Advantages

• No internal stress: Because cooling is slow and uniform, residual stress is minimal. Roto-molded parts exhibit excellent stress-crack resistance compared to injection-molded parts.
• Uniform wall thickness: Rotation ensures plastic reaches all corners evenly.
• Complex internal passages: Unlike most forming processes, roto-molding can create complex internal channels and chambers (e.g., vehicle fuel tanks with internal baffles).
• Minimal flash/waste: No parting line issues; waste is only powder that didn't adhere (typically <2–5%).
• Low tooling cost: Aluminum prototype molds cost ~$5–10k; production molds ~$20–50k (much cheaper than injection-molding molds which cost $50–200k).

Limitations

• Slow cycle time: 20–60 minutes per part vs. 10–60 seconds for injection/blow molding.
• Low throughput: 40–200 parts/day per carousel vs. 1000+ parts/hour for injection molding.
• Limited to hollow parts: Roto-molding is not suitable for solid or filled parts.
• Surface quality: Outer surface (exposed to air) is smooth, but inner surface (mold contact) may exhibit mild waviness or "orangepeel" texture if powder isn't perfectly distributed.
• Not economical for high volumes: Roto-molding's slow cycle makes it unsuitable for consumer products needing millions of units/year.

Applications

Automotive Tanks

Fuel tanks, coolant reservoirs, and windshield washer reservoirs are commonly roto-molded. Complex internal geometry (baffles, antislosh tubes) is easily molded; zero residual stress improves gasoline resistance and longevity. Cost advantage over blow-molded tanks: ~10–15% lower due to minimal secondary operations.

Plastic Furniture

Large outdoor furniture (pool loungers, storage benches) is roto-molded because cost per cubic volume is low for large parts, and stress-free walls resist cracking under load and weather exposure.

Pontoons & Floats

Roto-molded LDPE pontoons are unsinkable (closed-cell structure, low density) and extremely durable for recreational boating. Float balls, water drums, and other flotation devices are ideal roto-molding applications.

Large Containers & Tanks

200–2000 L water tanks, chemical storage containers, and process tanks are roto-molded for industrial applications. Internal features (baffles, ports, bosses) are molded in.

Typical Cost Structure

Material cost: 35–45% (powder or plastisol) Labor (loading, unloading, setup): 30–40% Depreciation + energy: 15–25% Retail markup: 2–3×

For a 5 kg roto-molded LDPE tank:

• Material: ~$10 (5 kg × $2/kg)
• Labor + overhead: ~$15
• Total manufacturing: ~$25
• Wholesale: ~$40–50
• Retail: ~$80–120 (depending on complexity and brand)

Quality Control

• Weight variance: Parts are weighed after cooling; variance >5% triggers recipe adjustment (charge weight).
• Wall thickness: Ultrasonic gauging at multiple points; out-of-spec parts are reworked (recharged and re-cycled) or scrapped.
• Visual inspection: Surface finish, color uniformity, any contamination or defects.
• Functional testing: For fuel tanks, pressure testing to 1.5× rated pressure; dimensional checks (capacity verification).
