Overview

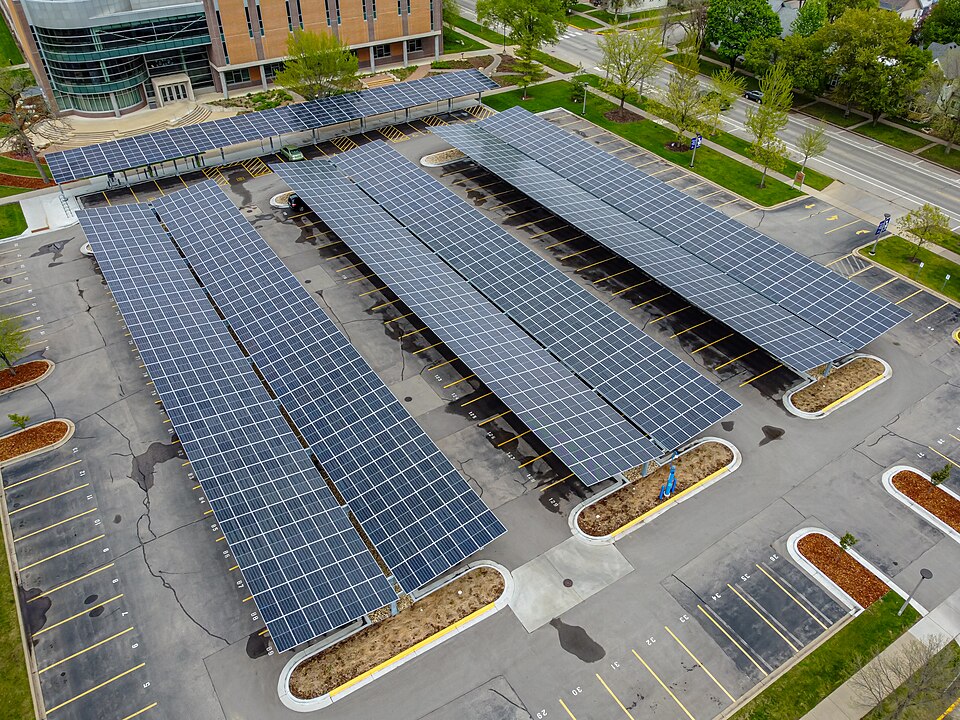

A solar carport is a dual-purpose structure combining photovoltaic energy generation with weather protection and EV charging infrastructure. The [[solar-carport-system-steel-structure|steel canopy]] spans a parking area, with [[solar-carport-system-pv-array|bifacial PV modules]] mounted on the roof-facing side. The inverted south-facing modules generate 25–50 kW of electricity while keeping vehicles cool in summer and dry year-round. Integrated [[solar-carport-system-ev-charger-integration|EV chargers]] allow drivers to top up their battery while parked, powered primarily by solar generation.

The innovation lies in "load matching": rather than disconnecting solar from the grid during peak charging (which wastes generation), the carport's intelligent controller curtails charger output to stay below grid export limits or time-of-use tariff peaks, maximizing local solar consumption. Over a year, a typical installation saves a fleet $5,000–$10,000 in electricity costs and eliminates 50–100 tons of CO₂ emissions compared to grid-supplied charging.

Architecture

Structural System

The [[solar-carport-system-steel-structure|structural frame]] is a welded steel lattice designed to support 40–50 tons of solar modules while withstanding 120 mph winds and 50 psf snow loads. The [[solar-carport-system-primary-beam|main beams]] are W36 × 200 I-beams spanning 25 meters; [[solar-carport-system-secondary-beam|cross-beams]] run perpendicular every 3 meters. The [[solar-carport-system-rafter-truss|mounting rafters]] are welded angle iron trusses angled at 35° tilt (optimal for mid-latitudes) and spaced 1 meter apart.

Eight [[solar-carport-system-column|corner and mid-span columns]] bolt to reinforced [[solar-carport-system-foundations|concrete piles]] 3 feet deep. All structural steel is either hot-dip galvanized or painted to resist corrosion over 25+ year lifespans.

Photovoltaic Array

The [[solar-carport-system-pv-array|PV array]] consists of 60–120 [[solar-carport-system-pv-module|410 W bifacial modules]] (21% efficiency). "Bifacial" means the modules have front and back-side solar cells, capturing both direct sunlight and reflected light (albedo) bouncing off the ground and vehicle roofs. Field studies show 15–25% extra energy compared to monofacial modules, depending on ground albedo (concrete: 35%, asphalt: 10%, white roof: 60%).

Each module includes a [[solar-carport-system-junction-box|bypass diode]] protecting against reverse current if one module is shaded. Modules are wired in strings (typically 20 modules in series) for a nominal string voltage of 400–500 VDC. All strings feed a [[solar-carport-system-combiner-terminal|consolidation block]] that combines them into a single positive and negative DC bus.

Power Conversion and Grid Interconnection

The [[solar-carport-system-inverters|grid-tied inverter]] accepts the combined 400–500 VDC DC input and converts it to 480 VAC three-phase AC synchronized with the utility grid. The inverter includes dual MPPT (Maximum Power Point Trackers) that continuously adjust operating voltage to maximize output as sunlight intensity and temperature vary throughout the day.

Most grid-tied inverters deliver "anti-islanding" protection: if the grid drops, the inverter detects the loss of grid voltage within one cycle and immediately shuts down, preventing back-feeding into a de-energized line (which is a fire and electrocution hazard).

The [[solar-carport-system-combiner-box|DC combiner box]] provides safety isolation: a [[solar-carport-system-dc-disconnect|1000 V DC disconnect switch]] allows maintenance without de-energizing modules, and a [[solar-carport-system-dc-breaker|current-limiting DC breaker]] protects against faults.

EV Charger Integration

The [[solar-carport-system-ev-charger-integration|hardwired EV charger]] (7.7 kW or 22 kW) is directly connected to the AC output of the solar inverter. A [[solar-carport-system-charger-pwm|solar curtailment controller]] measures solar production in real time and adjusts charger current to match available solar excess:

• Morning (low solar): If solar output is <2 kW and the site has a 15 A grid export limit, the charger draws no more than 2 kW (≈9 A), allowing 6 A of solar to export or be held by battery.
• Midday (peak solar): If solar output reaches 25 kW and the site allows 32 A vehicle charging (≈7.7 kW), the charger draws 7.7 kW, and the remaining 17.3 kW exports to the grid (if net metering is available) or charges optional storage.
• Evening (no solar): If the sun sets and the driver hasn't left, the charger automatically draws from the grid, metered separately.

This "smart load following" maximizes self-consumption, reducing electricity bills and minimizing grid stress during peak hours.

Optional Battery Storage

For deployments wanting to maximize independence and demand response participation, the [[solar-carport-system-energy-storage-option|battery interface module]] integrates a 10–20 kWh battery (typically LiFePO₄). A bidirectional [[solar-carport-system-battery-inverter|inverter]] charges the battery from solar during the day and discharges to the vehicle during evening peak pricing. If the vehicle has V2G capability, energy flows both ways: excess solar can charge the vehicle, and the vehicle can discharge back to the carport if grid prices spike.

Installation and Operation

A solar carport installation spans 3–4 months:

1. Site preparation (2 weeks): Excavation of footing locations, concrete pours, utility locates.
2. Structural erection (3 weeks): Steel frame fabrication and bolting, rafter installation.
3. Electrical rough-in (2 weeks): Conduit runs, grounding, DC combiner box wiring.
4. Solar module installation (2 weeks): Module mounting, string terminations, junction box connections.
5. Inverter and charger commissioning (1 week): Testing grid synchronization, load testing, safety verification.

Once operational, the carport requires minimal maintenance: quarterly visual inspection of modules for debris or bird nesting, annual inspection of structural bolts, and inverter firmware updates (typically via Wi-Fi or Ethernet).

Energy and Economic Value

A 50 kW carport generates 50,000–70,000 kWh/year (depending on latitude and cloud cover). At $0.15/kWh average electricity rate, this is worth $7,500–$10,500/year. Combined with demand charge reductions (shaving peak load during midday solar peaks) and potential incentive rebates (federal ITC: 30%, state: varies), simple payback is 6–10 years.

For commercial fleet operators, the carport provides additional value: workers and customers benefit from weather-protected parking (no rain, no sun exposure), which improves satisfaction and potentially increases facility utilization. Some workplaces have reported higher employee retention when EV charging is conveniently available.

Grid and Environmental Impact

When deployed at scale (100+ carports in a utility district), solar carports provide "distributed generation" that reduces grid congestion and transmission losses. Rather than centralizing generation at a few large solar farms far from load centers, carports co-locate generation with consumption, reducing system losses by 2–5%.

From a grid stability perspective, smart curtailment controllers can coordinate carport charging with utility demand response signals. During high-renewable penetration hours (sunny, windy), carports shift EV charging loads away from peak periods, avoiding wasted renewable energy and over-voltage conditions.

Environmentally, a 50 kW carport offsets ~60 tons of CO₂ emissions annually (assuming fossil fuel grid baseline). Over a 25-year lifespan, this is equivalent to planting 1,500 trees or removing one car from the road entirely.

Standards and Compliance

Solar carports must comply with:

• IEEE 1547: Standard for Interconnection and Interoperability of Distributed Energy Resources with Associated Electric Power Systems.
• IEC 61215 / IEC 61646: PV module safety and performance standards.
• NFPA 70E: Electrical safety standards for solar installations.
• NEC Article 705: Interconnected power production sources.
• ASCE 7: Minimum Design Loads for Buildings and Other Structures (snow, wind, seismic).

Local permitting requires structural engineering sign-off, electrical contractor inspection, and utility approval for grid interconnection.
