Overview

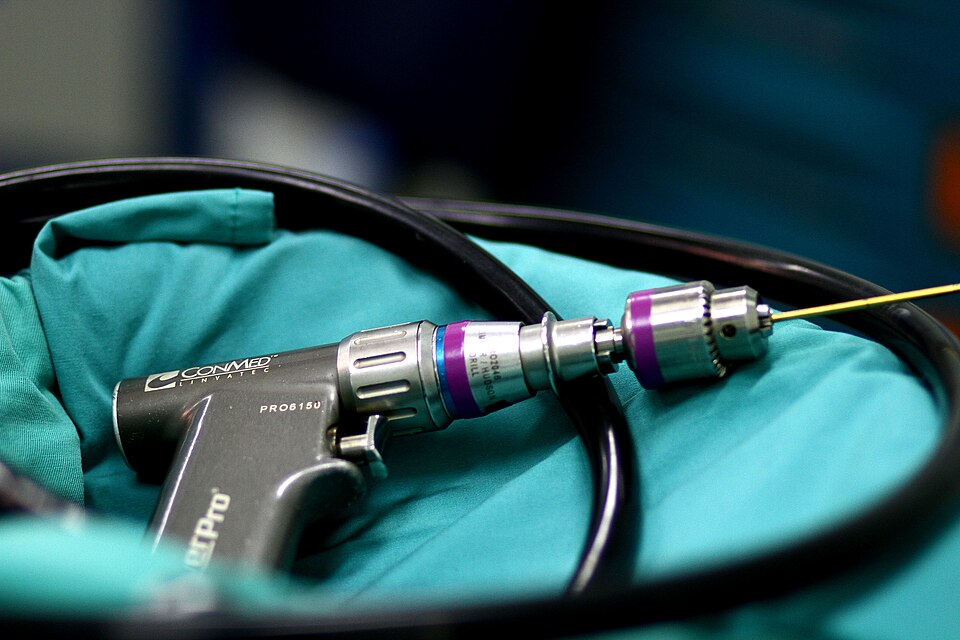

A surgical power drill is the handheld prime mover of orthopedic and trauma surgery. It spins twist drills and reamers to make holes for screws and prostheses, oscillates a sagittal blade to cut and shape bone, and drives Kirschner wires and pins to provisionally fix fragments. One handpiece does all of this by accepting interchangeable heads, so the same motor serves a hip replacement, a fracture plating and a hand-surgery wire as the case demands.

Everything is built around two constraints that ordinary power tools never face: the device must survive hundreds of steam-autoclave cycles, and the rotating output must be controllable from a crawl to full speed without overshoot near nerves and soft tissue. The Brushless Drive Motor provides smooth, brushless torque; the Quick-Connect Chuck swaps heads one-handed; the Trigger & Mode Control and Control Board meter speed and limit torque; the Sterilizable Battery Pack powers it without a cord in the sterile field; and the sealed Sealed Handpiece Housing keeps steam and irrigation fluid out of the works.

How it works

The Brushless Drive Motor is a sensored three-phase brushless motor. Its Hall-Effect Position Sensor reports rotor position so the Control Board can commutate the Copper Winding phases with field-oriented control, holding torque steady at low rpm where a bone bit is most likely to grab. The surgeon's input comes from the Trigger & Mode Control, whose magnet-and-Hall sensor means there is no mechanical switch to seal — speed is read through the wall of the case. A mode collar selects forward, reverse or oscillate.

Attachments couple to the Quick-Connect Chuck through a dog clutch and a push-to-release sleeve. From the Attachment Set, a Jacobs head holds drills and reamers, a wire driver feeds K-wires, and the Oscillating Saw Head adds a Helical Gear Pair and an eccentric cam that turns rotation into the tiny rapid oscillation of a sagittal blade — oscillation cuts bone but stalls against soft tissue, which makes it forgiving.

Power comes from the Sterilizable Battery Pack, a sealed cell stack delivered in a sterile transfer shroud so the non-sterile pack never touches the field. The whole Sealed Handpiece Housing is hermetically sealed and built from titanium and PEEK to take repeated 134 °C steam cycles, the step that lets one drill move from case to case.
