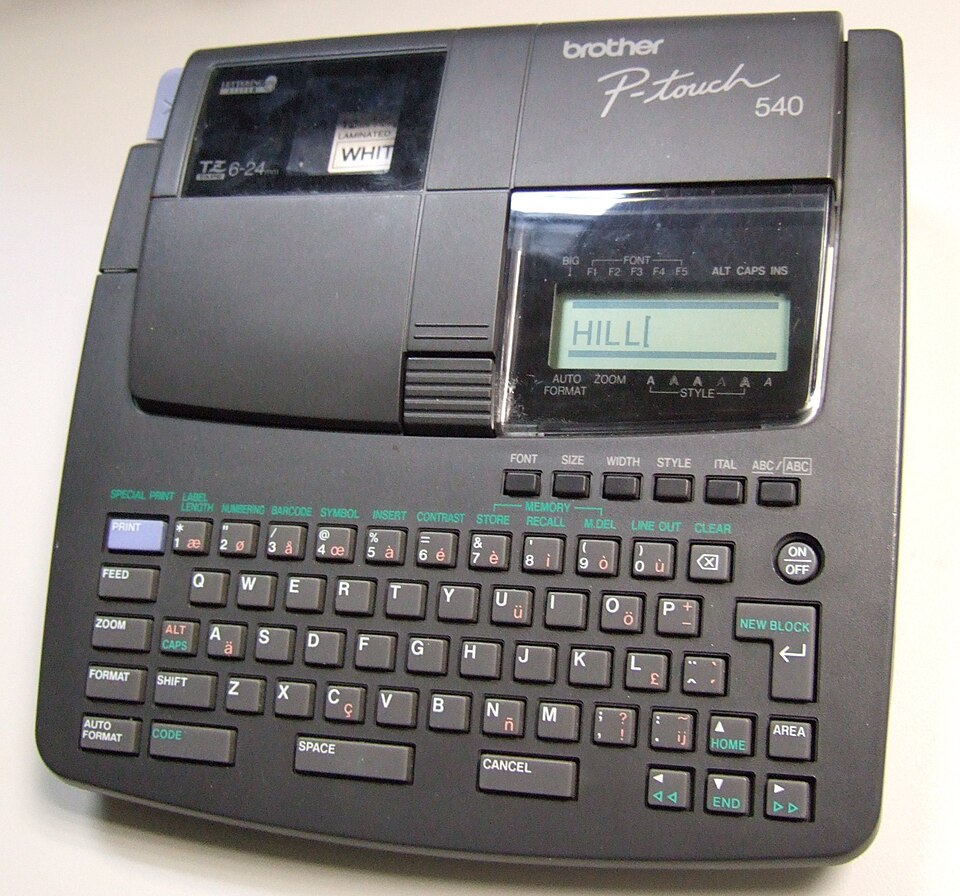

Thermal Label Printer

Overview

A thermal label printer prints shipping, barcode, and product labels by selectively heating special paper rather than laying down ink. Direct-thermal media darkens where it is heated, so the printer needs no ink, toner, or ribbon, just the roll of labels and power. That simplicity makes it the workhorse of warehouses, shipping desks, and retail back rooms.

Printing happens at the Thermal Printhead, a line of tiny heaters pressed against the paper. The Platen Drive pulls media past that head, while the Media Path holds the roll and finds the start of each label. After printing, the Cutter / Peeler separates labels by cutting or peeling. The whole mechanism is run by the Control Board, commanded over the Interface Panel, and wrapped in the Housing with an internal Power Supply.

How it works

The head carries a row of resistive dots on a ceramic substrate. To print a line, the Head Driver Flex switches current through exactly the dots that should be dark; each fires for a few hundred microseconds, heating the thermal coating under it past its activation point so it turns black. The stepper in the platen drive then advances the paper one dot-row, and the next line prints, building the image one scan line at a time as the Heating Element cycles.

Registration depends on the Gap Sensor, whose Photo Interrupter watches light pass through the web; the brief rise in transmission at each inter-label gap tells the controller where one label ends and the next begins, so print lands in the right place. The Stepper Motor is microstepped by a driver on the control board for smooth, accurate feed. Depending on the job, finished labels are torn at the bar, severed by the Cutter Blade, or peeled off their liner by the Peel Bar so they present ready to apply.
