Touring Motorcycle Product

Overview

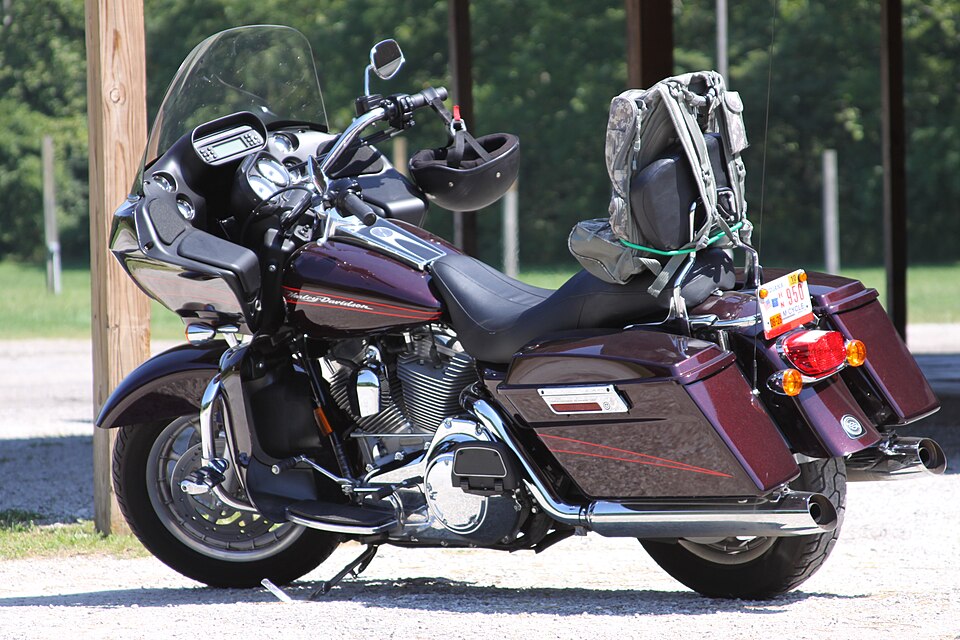

A touring motorcycle is engineered around a different objective than any other bike: keeping two people and a week's luggage comfortable at motorway speed for 800 km days. Every subsystem follows from that brief — a large low-revving Engine, a Fairing that manages a hurricane of oncoming air, a Luggage System system with the capacity of a car boot, suspension that re-levels itself as load changes, and a cockpit closer to a car dashboard than a clock and a speedo. The configuration described here follows the European pattern (BMW R 1250 RT class); American V-twin baggers and Japanese six-cylinder tourers differ in engine but not in architecture.

Powertrain

The engine is a 1,254 cc boxer twin making 100 kW, but the headline figure is 143 Nm at 6,250 rpm — touring engines are sized for torque, so overtaking a truck two-up with full cases is a roll of the wrist, not a two-gear downshift. Each Cylinder Head carries a shifting intake camshaft: two lobe profiles side by side, slid axially by an actuator so the engine breathes gently at part load and aggressively above it. This variable timing is what lets one engine deliver both 5 L/100 km cruising and full sport-bike-class output. Twin 52 mm Throttle Bodies are pure ride-by-wire under the Engine ECU, which is what makes riding modes, cruise control, and traction intervention possible at all.

The Gearbox is a 6-speed with a quickshifter, and final drive is the enclosed Driveshaft through the Single-Sided Swingarm to a 2.91:1 bevel Final Drive. Shaft drive is near-universal in this class for one reason: a chain needs lubrication and adjustment every few fuel stops, and a touring rider crossing a continent does neither.

Chassis and suspension

The Main Frame bolts around the engine as a stressed member. The interesting engineering is the Suspension. The Front Suspension is a Telelever-type arrangement — an A-arm and central shock take braking loads, so a hard stop from 130 km/h barely pitches the chassis, which matters greatly with 280 kg of machine plus 210 kg of payload. At the rear, the Rear Monoshock carries solenoid-proportional damping valves that the Suspension ECU retunes every 10 milliseconds from stroke sensors and the Inertial Measurement Unit; the practical effect is a bike that is plush over expansion joints and composed when a pass road tightens. The Preload Motor handles the load problem mechanically: add a pillion and 40 kg of cases and the rear end pumps itself back to level ride height, preserving steering geometry and headlamp aim.

Braking is linked and lean-aware. Twin 310 mm discs of the Front Brake do the work, the Rear Brake is blended in automatically, and the ABS Modulator modulates pressure using lean angle from the IMU — cornering ABS exists precisely for the loaded, two-up, wet-alpine-descent case touring bikes live in.

Weather protection and luggage

The Fairing Panels are shaped in the wind tunnel to put the rider in still air: radiator heat ducts around the legs, Hand Deflectors keep rain off the grips, and the electric Windscreen adds about 120 mm of height at the press of a switch via the Screen Actuator — low for cool air in summer traffic, high to silence buffeting at speed. The LED Headlamp banks its beam into corners using IMU lean data, a meaningful safety device on unlit mountain roads.

Luggage is system-engineered, not strapped on. Two Panniers and the helmet-swallowing Top Case latch onto the cast Luggage Rack with one motion, detach as carry cases at the hotel, and lock with the ignition key through the Central Lock. A Tank Bag Mount ring adds the fourth bag without straps on the paint.

Cockpit and comfort

The Infotainment head unit drives a 10.25-inch TFT Display with map navigation and phone audio over Bluetooth, operated from the Multicontroller ring without releasing the left grip. The Audio Amplifier raises speaker volume with road speed. Comfort hardware rounds out the spec: independently heated rider and pillion seats via Seat Heater mats, three-level Heated Grips, adjustable Comfort Footrests, and a 25-litre Fuel Tank that keeps fuel stops 400 km apart — which is, in the end, the whole point of the category.
